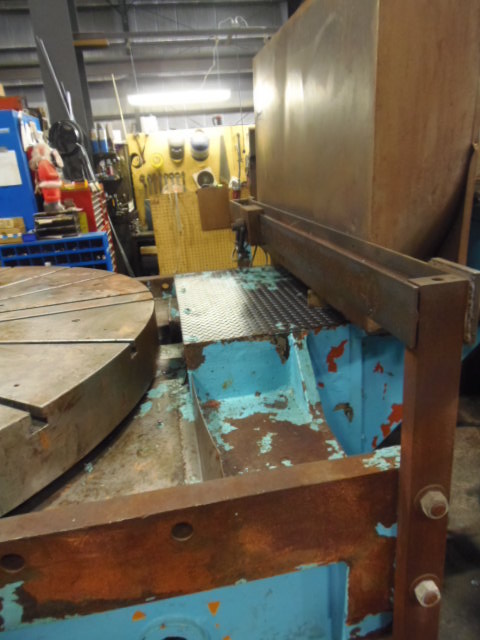

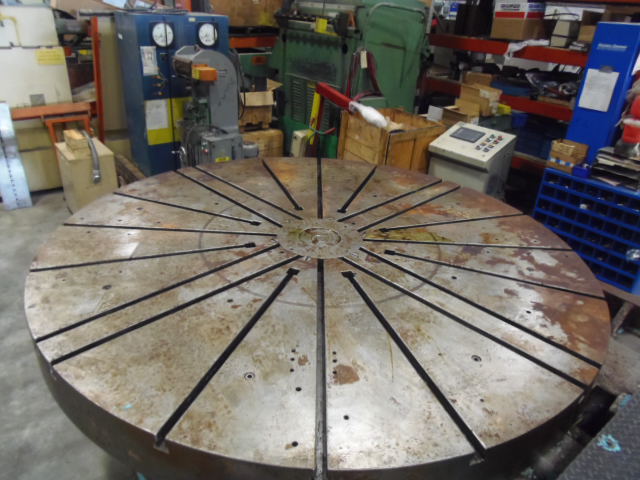

108" BETTS ROTARY TABLE, 20 T-SLOTS, 60 HP MOTOR, EST. 30,000 LB. CAPACITY

108" BETTS ROTARY TABLE, 20 T-SLOTS, 60 HP MOTOR, EST. 30,000 LB. CAPACITY

Brand
BETTS

Model

Type
Tables, Rotary

Stock #
9449

Condition
Used

Year
1942

Request a Quote

Specifications

Equipped With

GENERAL SPECIFICATIONS:

MAKE........................ BETTS
TABLE SIZE DIAMETER......... 108"
TABLE THICKNESS............. 9"
TABLE SPEED ESTIMATE........ 6-15 RPM*
NO. OF T-SLOTS.............. 20
MOTOR....................... 60 HP
CAPACITY (TESTED)........... 24,000 LBS.
CAPACITY (ESTIMATE)......... 30,000 LBS.
ELECTRICS................... 440V / 3PH / 98 AMPS
MOTOR SPEED................. 1750 RPM

*CAME OFF LARGE VTL*
*MAY BE USED AS A WELDING POSITIONER
*SPECIFICATIONS SUBJECT TO VERIFICATION*

108" BETTS ROTARY TABLE, 20 T-SLOTS, 60 HP MOTOR, EST. 30,000 LB. CAPACITY
