Specifications
Equipped With
GENERAL SPECIFICATIONS:

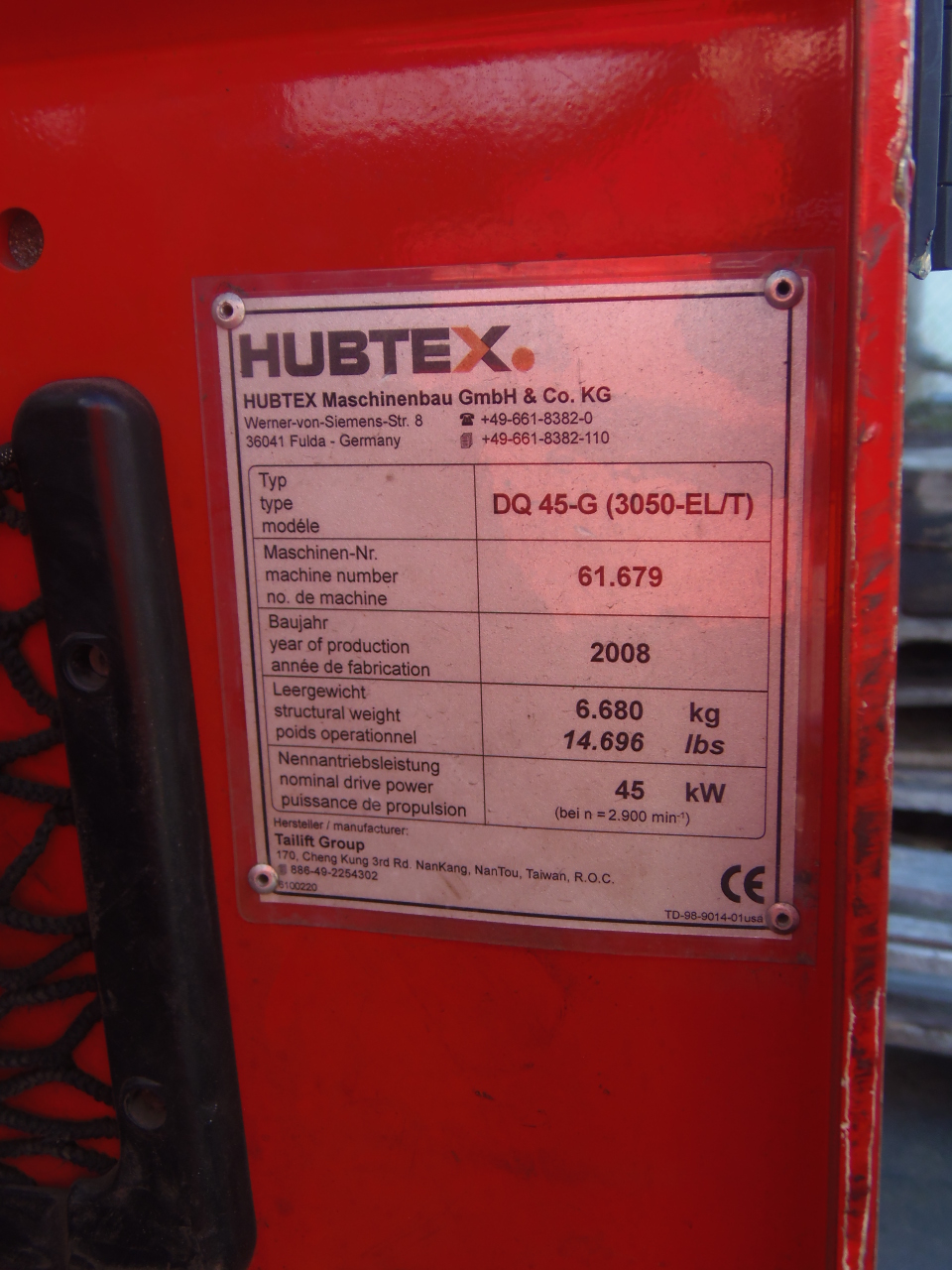

MANUFACTURER......................... HUBTEX
MODEL................................ DQ40/3050
SERIAL NUMBER........................ 61.679
AGE.................................. 2008
NUMBER OF HOURS...................... 1500
CAPACITY............................. 10,000 LBS
MAST
COLLAPSED HEIGHT.................. 109.4"
MAX. FORK HEIGHT.................. 199"
EXTENDED HEIGHT................... 259"
CARRIAGE HEIGHT................... 48"
LOAD PICK-UP DEVICE
STANDARD CARRIAGE................. 49.2"
TWO FORKS......................... 1.9" X 6.9" X 47.2"
FORK ADJUSTMENT................... 19.7" - 49.2" MANUAL
HYDRAULIC FORK TILT............... +5 TO -3 DEGREES
SPECIFIC DIMENSIONS
HEIGHT OVER CABIN................. 98.4"
TOTAL LENGTH...................... 87.4"
LOAD BED LENGTH................... 48"
FRAME WIDTH....................... 99.2"
MAST REACH........................ 49.2"
HEIGHT OVER LOAD ARM.............. 23.6"
LOAD ARM OPENING.................. 52.7"
DISTANCE OVER LOAD ARM............ 86.2"
GROUND CLEARANCE.................. 7.7"
RAMP CAPABILITY................... 12%
EQUIPPED WITH:
3.0 GM INDUSTRIAL PROPANE ENGINE WITH SOUND PROOF AND REDUCED VIBRATION, 4 CYLINDER STRAIGHT TYPE 3.LITRE ENGINE
ALL WHEEL DRIVE ALL THE TIME, WITH THE TIGHTEST STEERING IN CLASS, SMOOTHEST SPEED REGULATION IN CLASS, HIGH ENGINE TORQUE AT ALL SPEED RANGES, AND LOW NOISE LEVEL.
HYDROSTATIC BRAKE THAT DOES GENTLE BRAKING WHEN THE DRIVE PEDAL IS RELEASED OR POWERFUL BRAKING BY USING THE BRAKE PEDAL.

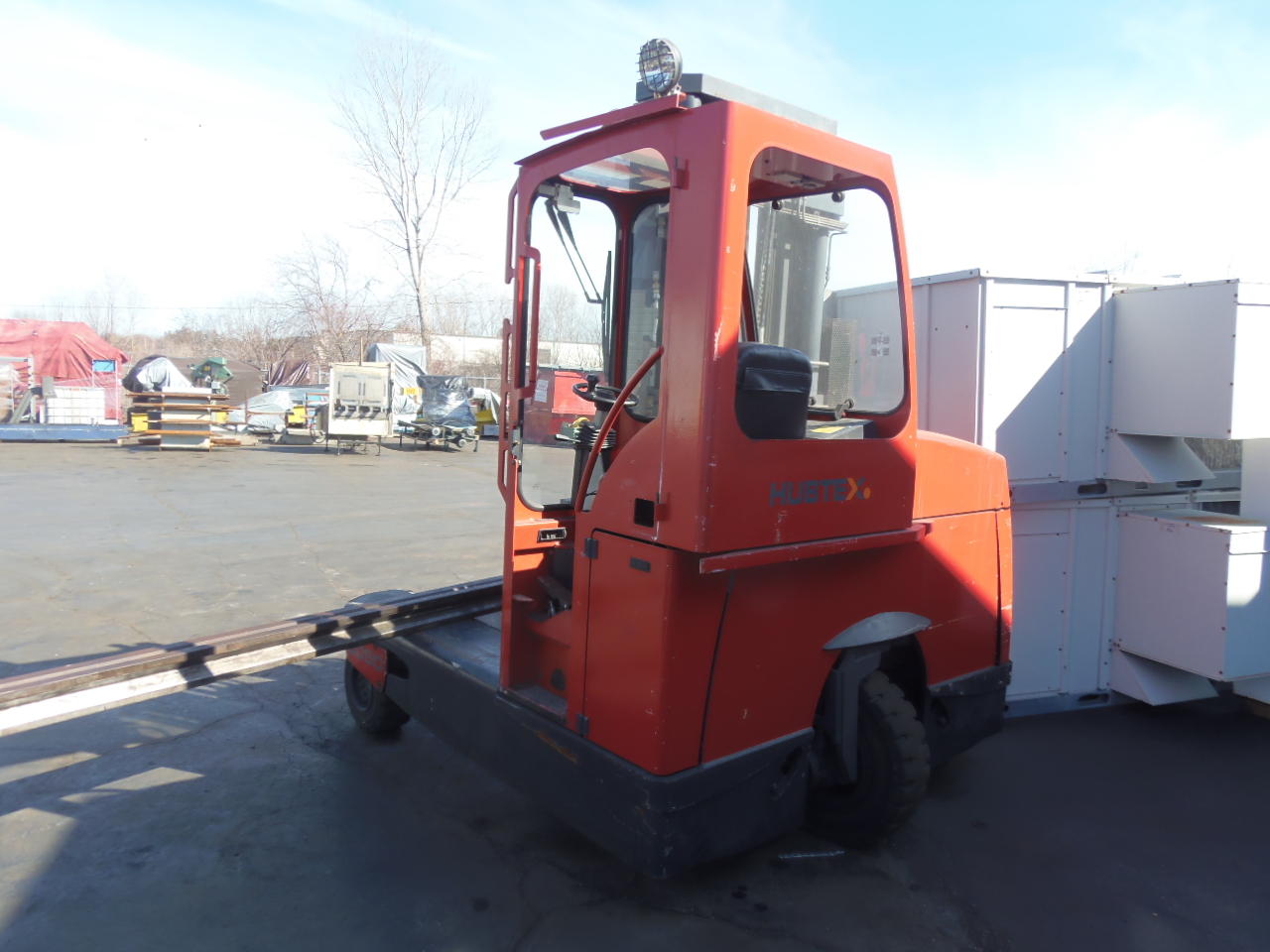

PARTIAL CABIN WITH HEATER AND DEFROST
ELECTRONIC 3 WHEEL STEERING

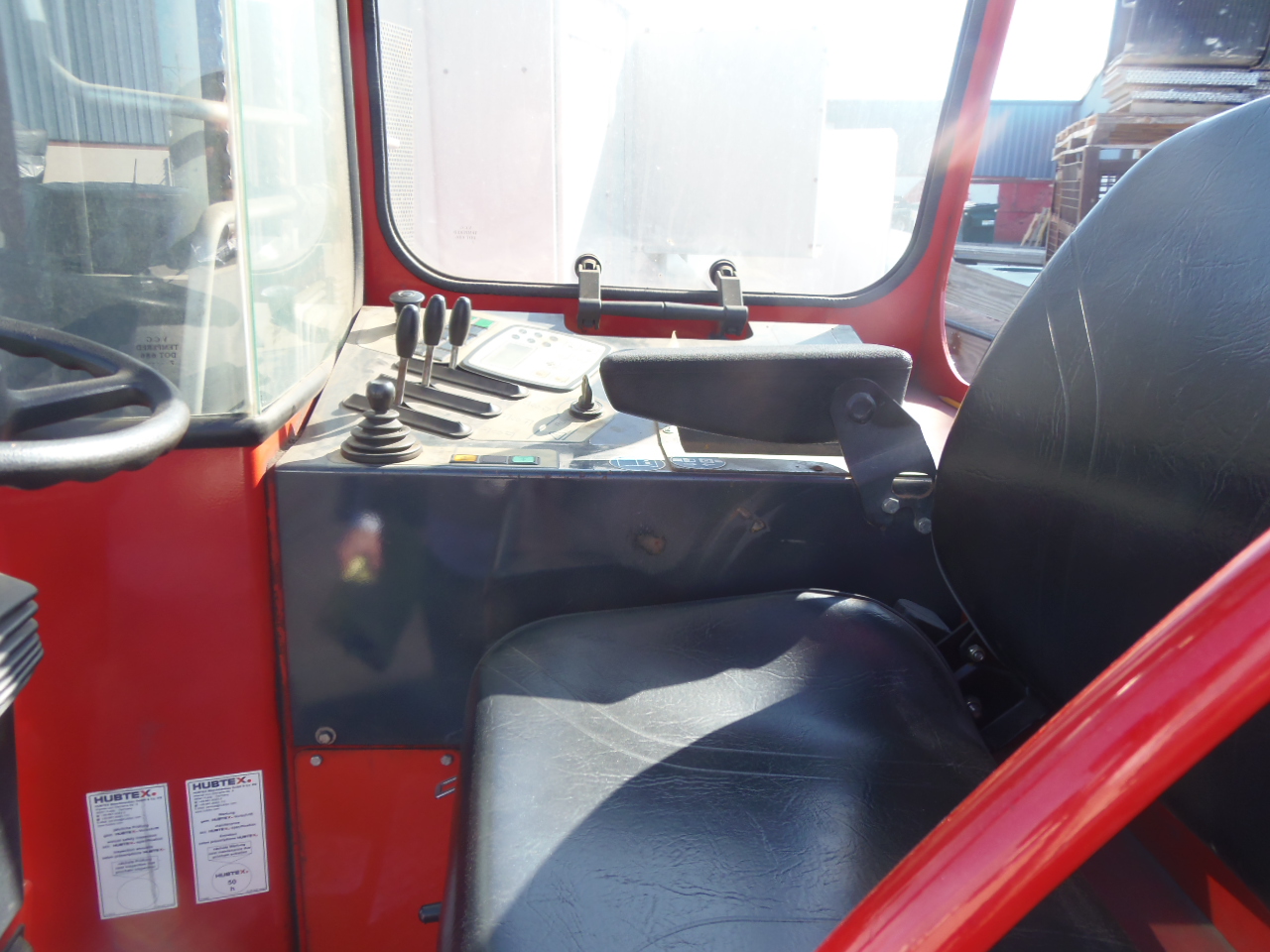

SINGLE LEVERS FOR LIFTING, LOWERING, MAST REACH, AND MAST RETRACT.
JOYSTICK CONTROL OF DIRECTION.
*******NOTE VIDEO IS NOT OF THIS MACHINE, BUT THE SAME MODEL*******
VIDEO OF THIS MACHINE IS AVAILABLE OR YOUR INSPECTION IS ENCOURAGED.
