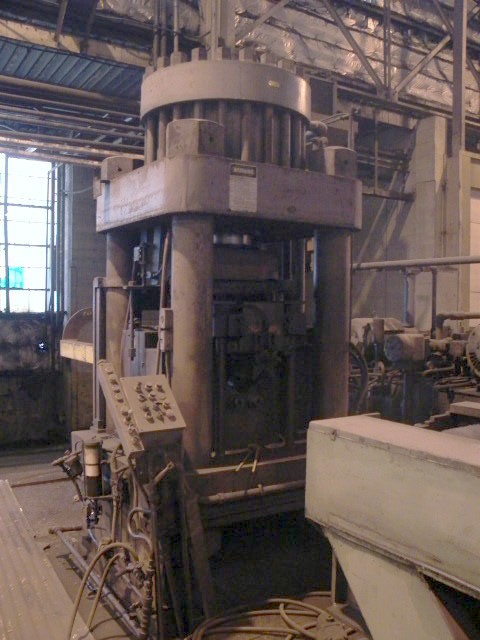

MANUFACTURER..........................ADVANCED MACHINE DESIGN
YEAR..................................1975
MODEL.................................1000-3030
SPECIFICATIONS:
SHEARING CAPACITY-MILD STEEL BARS.....7"
TONNAGE...............................1000 TONS
MAXIMUM STROKE........................5"
DISTANCE BEWEEN COLUMNS...............31.25 X 31.25"
OVERALL HEIGHT........................120"
NUMBER OF STROKES.....................19 CUTS PER MIN WITHOUT FEEDING OR GAUGING TIME
APPROX WEIGHT.........................55,000 LBS
STANDARD EQUIPMENT
170 HP HI-LOW HYDRAULIC POWER PACK
SINGLE BAR SHEARING ASSEMPLY
BACK SUPPORT
AUTOMATIC HYD HOLDDOWN
4.25 TO 36" BACKGAUGE, RETRACTING TYPE INCLUDING SYNCHRONIZATION WITH SHEAR
FINE HANDWHEEL ADJUSTMENT OF +- .5" OF BACK GAUGE

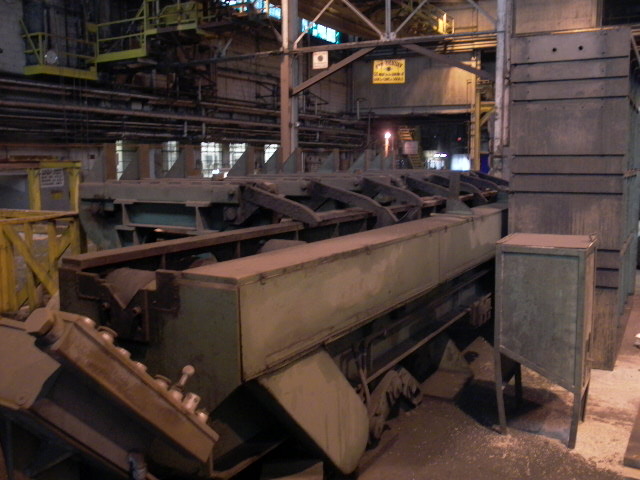

MAGAZINE BARFEEDING SYSTEM
