MODEL: MC 1000
SERIAL NUMBER: H7080
GENERAL SPECIFICATIONS
Air Volume: 1000 SCFM
Inlet Diameter:6"
# of FILTER BAGS... 10

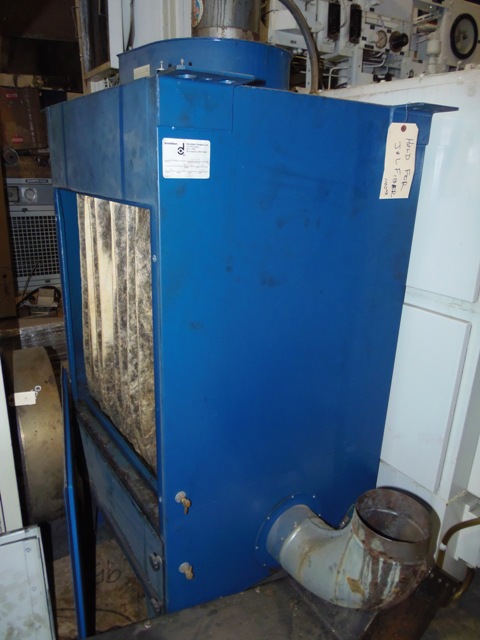

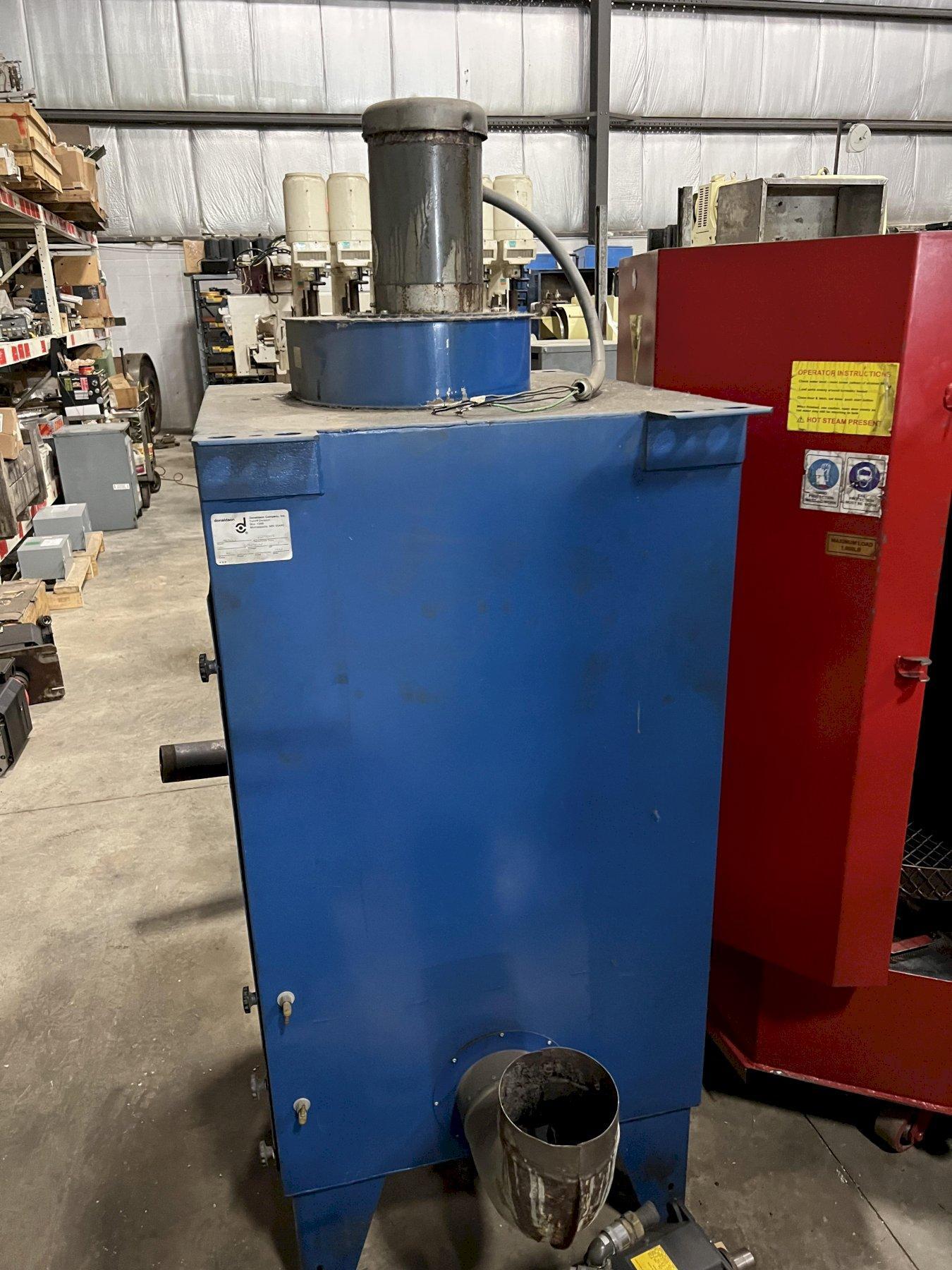

The Torit MC1000 is designed to control water-soluble and petroleum-based
mists generated by your production operations. It's a maximum-efficiency
system that helps eliminate in-plant moisturization from floating mists that
cling to walls, ceilings, floors, and equipment. It can help solve maintenance
problems generated by wet-machining operations, as well as improving work
safety conditions.
This collector offers mist filtration in two stages. The first stage
consists of a wire mesh filter, measuring 24" x 24" x 2", for stopping chips
and large mist droplets. The mist collector inlet is positioned so that air
enters parallel to the filter. The air flow must turn 90 degrees to move
through the filter, which allows for more complete filtration than a common
straight-flow type. The second stage is composed of a fiber-glass filter.
These pleated filters stop solid particles, or liquid droplets, which then
drain to the bottom of the mist collector for easy disposal or reclamation.
EQUIPPED WITH
3 HP Motor 3450 RPM 230/460/60/3
Factory Legs
Electrical
Cabinet Dimensions: 28-1/4" x 28-1/4" x 68"
Approximate Weight: 400 Lbs.
Shipping Dimensions: 36" x 30" x 6'6" Tall
SPECIFICATIONS SUBJECT TO VERIFICATION
