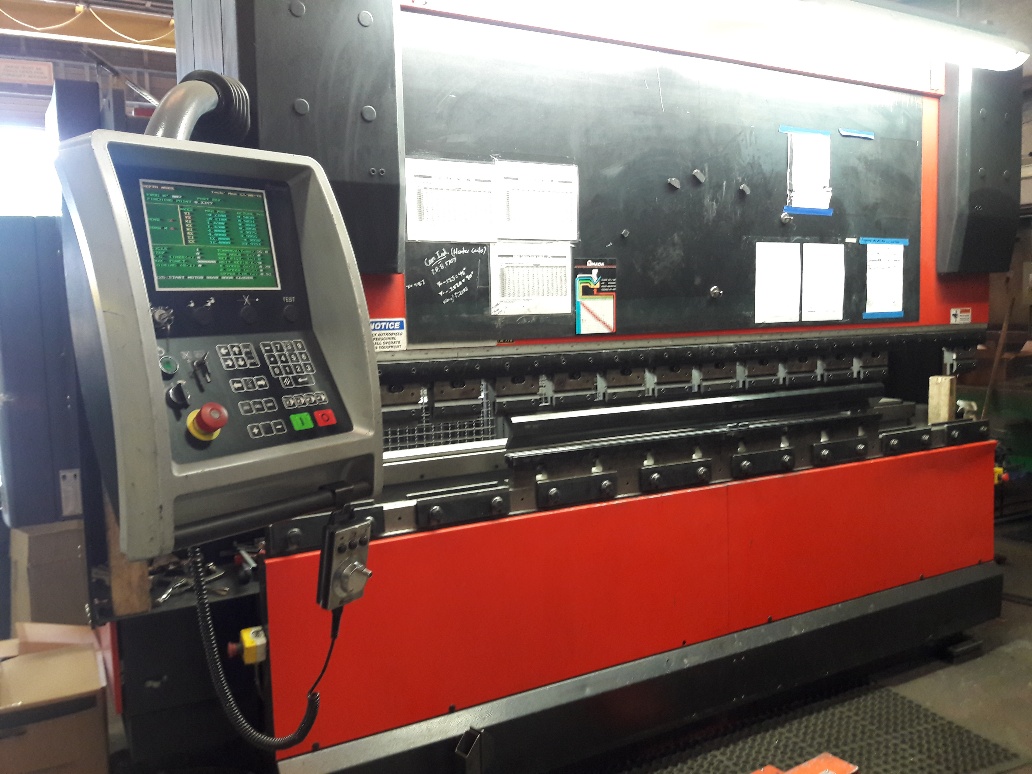

100 TON x 10' AMADA PRESS BRAKE, MODEL HFE 100-3 S, NEW 2006, 8" STROKE, NEW 2006

100 TON x 10' AMADA PRESS BRAKE, MODEL HFE 100-3 S, NEW 2006, 8" STROKE, NEW 2006

Brand
AMADA

Model
HFE 100-3 S

Type
CNC & N/C Controls

Stock #
10237

Condition
Used

Year
2006

Request a Quote

Specifications

Equipped With

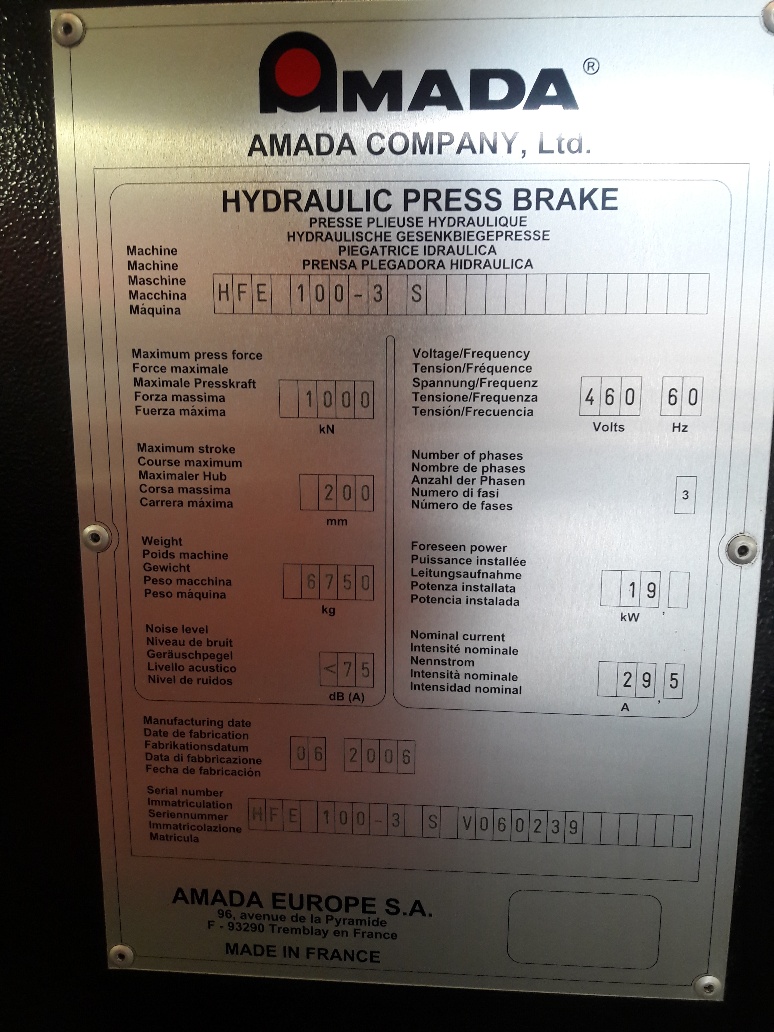

GENERAL SPECIFICATION:

Manufacturer..................... Amada

Model............................ HFE 100-3 S

Serial number.................... V060239
Age.............................. 2006

Capacity......................... 110 U.S. tons
Bend Length...................... 122 inches
Maximum Stroke Length............ 7.8 inches
Open Height...................... 18.5 inches
Throat Depth..................... 16.5 inches
Distance Between Housings........ 106 inches
Ram Repeatability................ +/- 0.00004 inches
Table Width...................... 2.36 inches
Approach Speed................... 7.87 inches per second
Bending Speed.................... 0.04 to 0.787 inches per second, programmable
Return Speed..................... 0.04 to 7.87 inches per second, programmable
Overall Machine Length........... 145 inches
Machine Width.................... 58 inches
Machine Height................... 106 inches
Hydraulic Oil Capacity........... 56 gallons
Machine Weight................... 16,000 pounds
Motor HP......................... 25

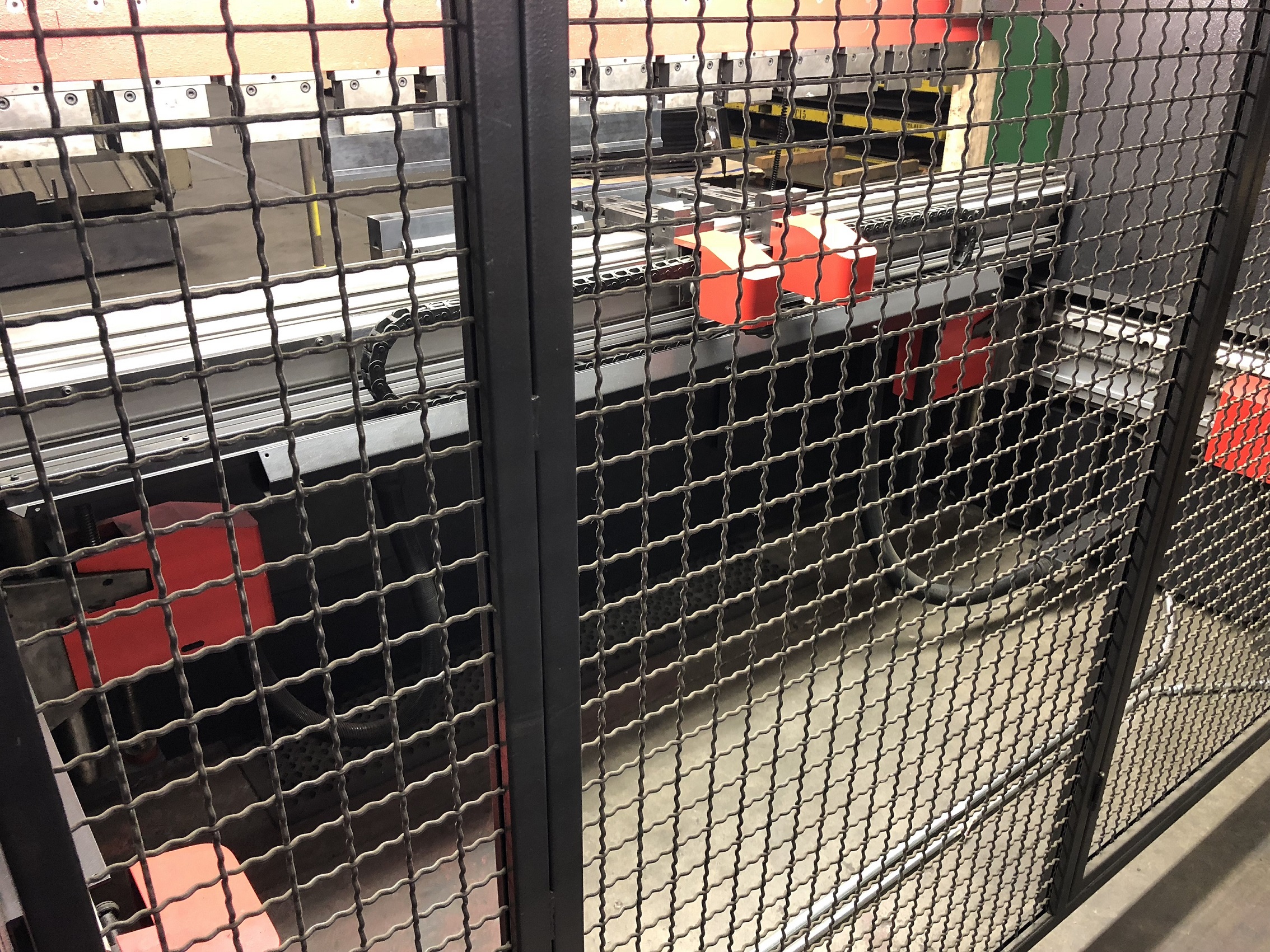

Backgauge
Model............................ Amada Type B
Repeatability.................... L Axis +/- 0.0004 inches
Movement Range
X Axis........................... 27.5/37.5 inches
R Axis........................... 9.84 inches
Z Axis........................... 94 inches
Feed Speed
X Axis........................... 19.5 inches per second
R Axis........................... 6.2 inches per second
Z Axis........................... 39.3 inches per second
Minimum Command Unit............. 0.0001 inch

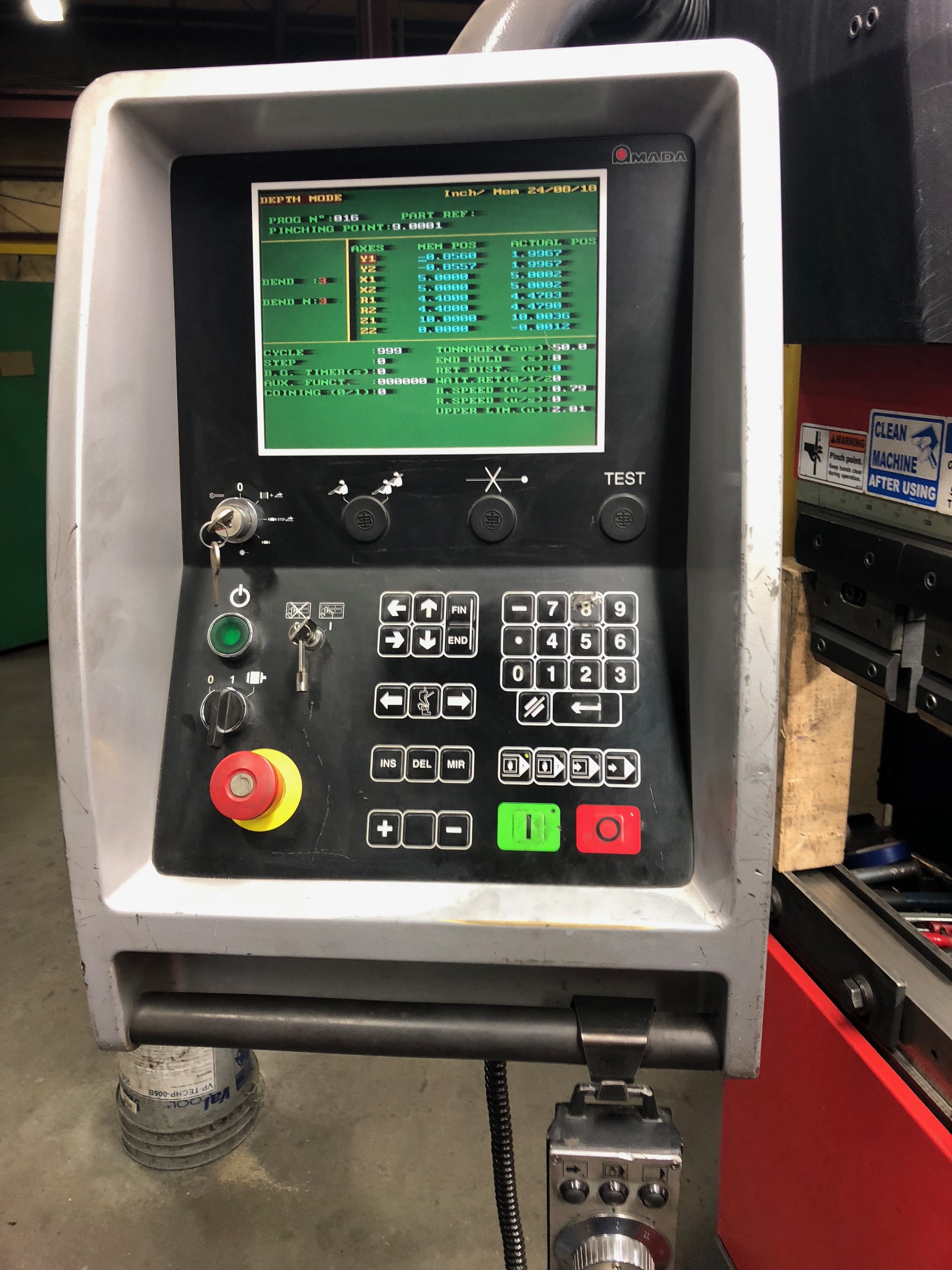

CNC Controller
Model............................ Amada OPERATEUR
Axes of Control.................. 7 standard
    Y1Y2 Ram depth
    X1X2 Backgauge
    Z1Z2 Horizontal finger position of two stoppers
    R Vertical finger position of two stoppers
Input Method..................... Keyboard, 3.5" diskette and RS232
Display.......................... 12" Color VGA
Program Storage.................. 60 in active memory plus 30 on diskette
Bends per Program................ 25
Die Library...................... 70 dies
Punch Library.................... 30 punches
