Specifications
Equipped With
GENERAL SPECIFICATIONS:

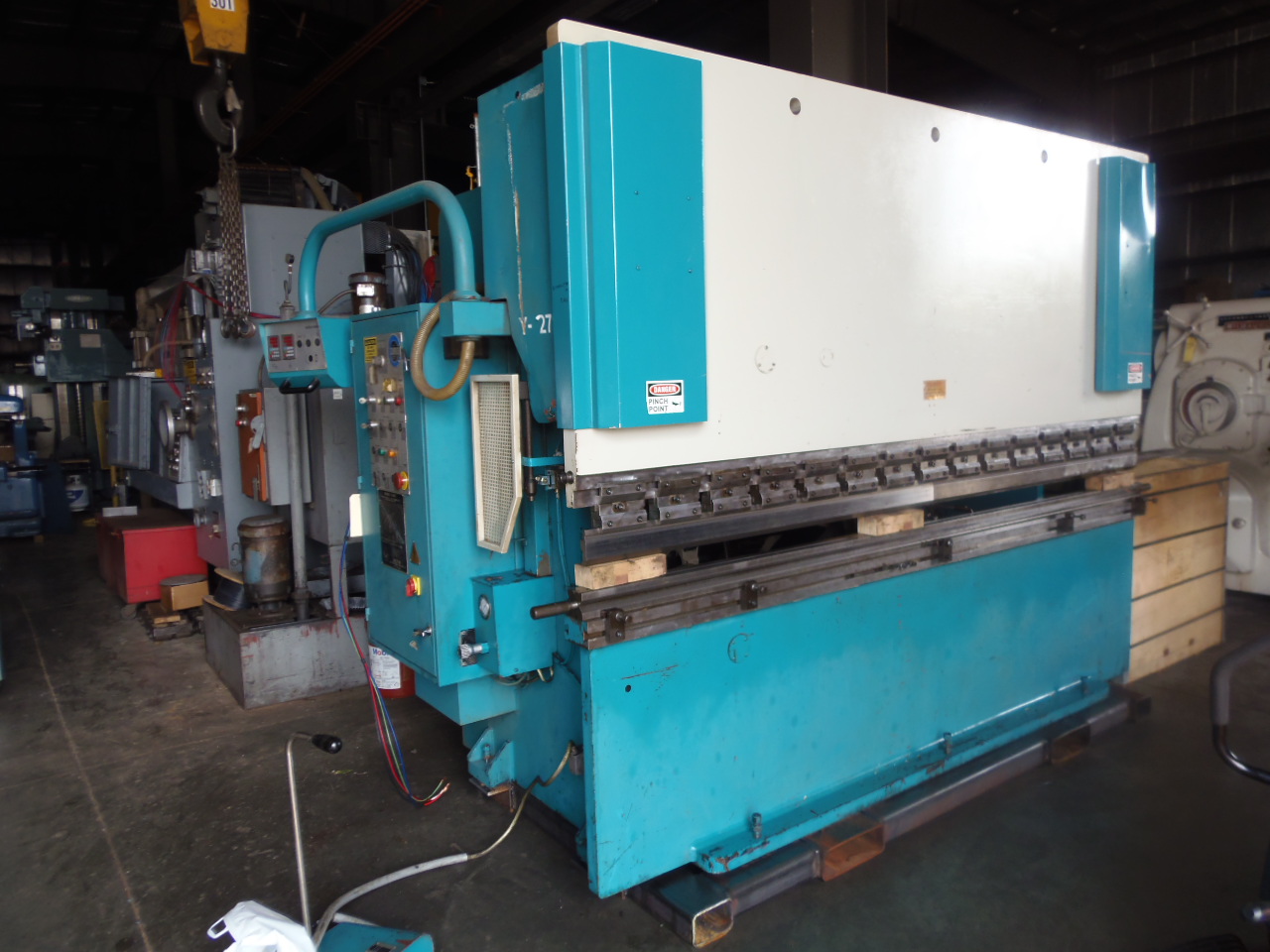

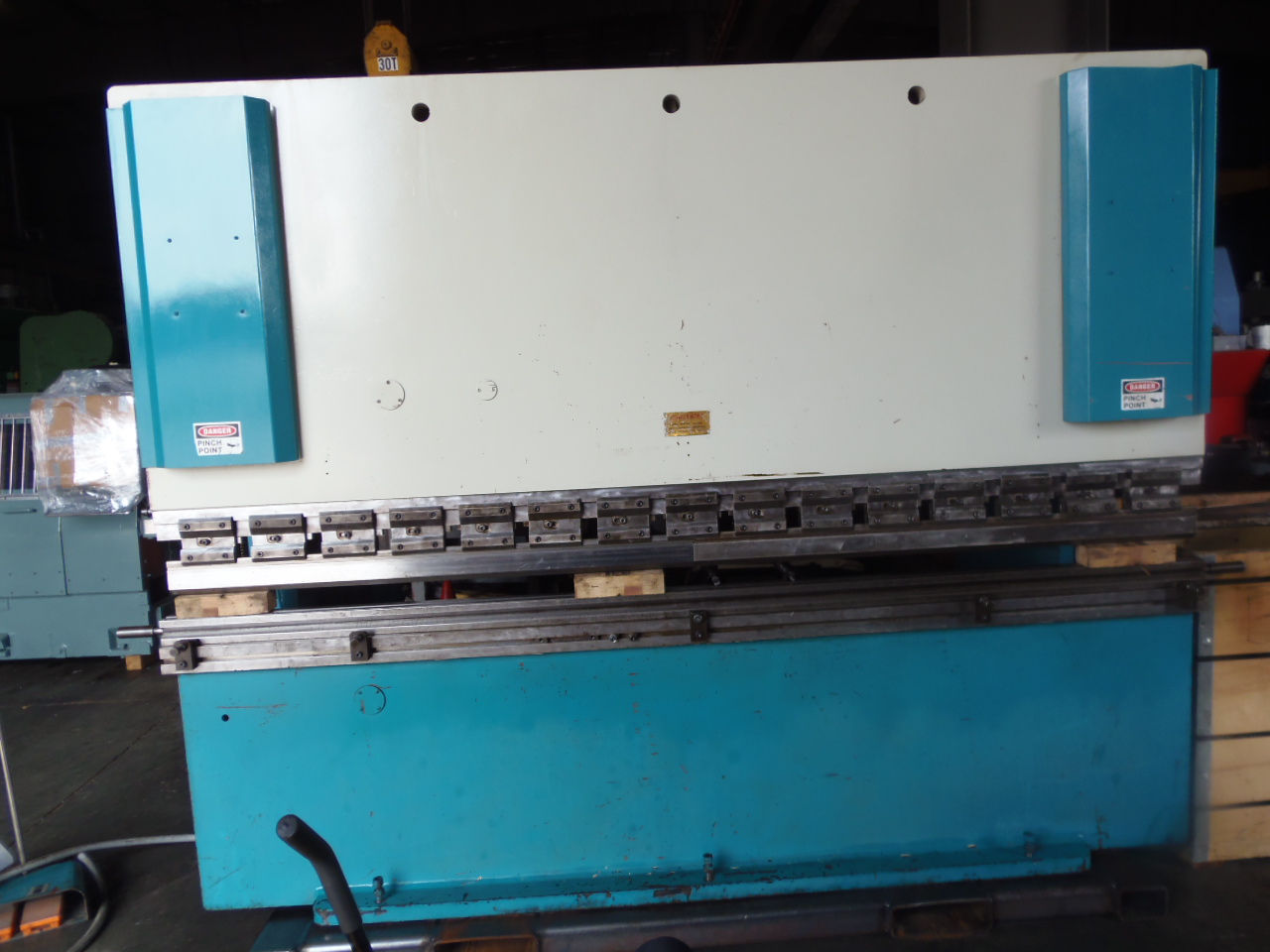

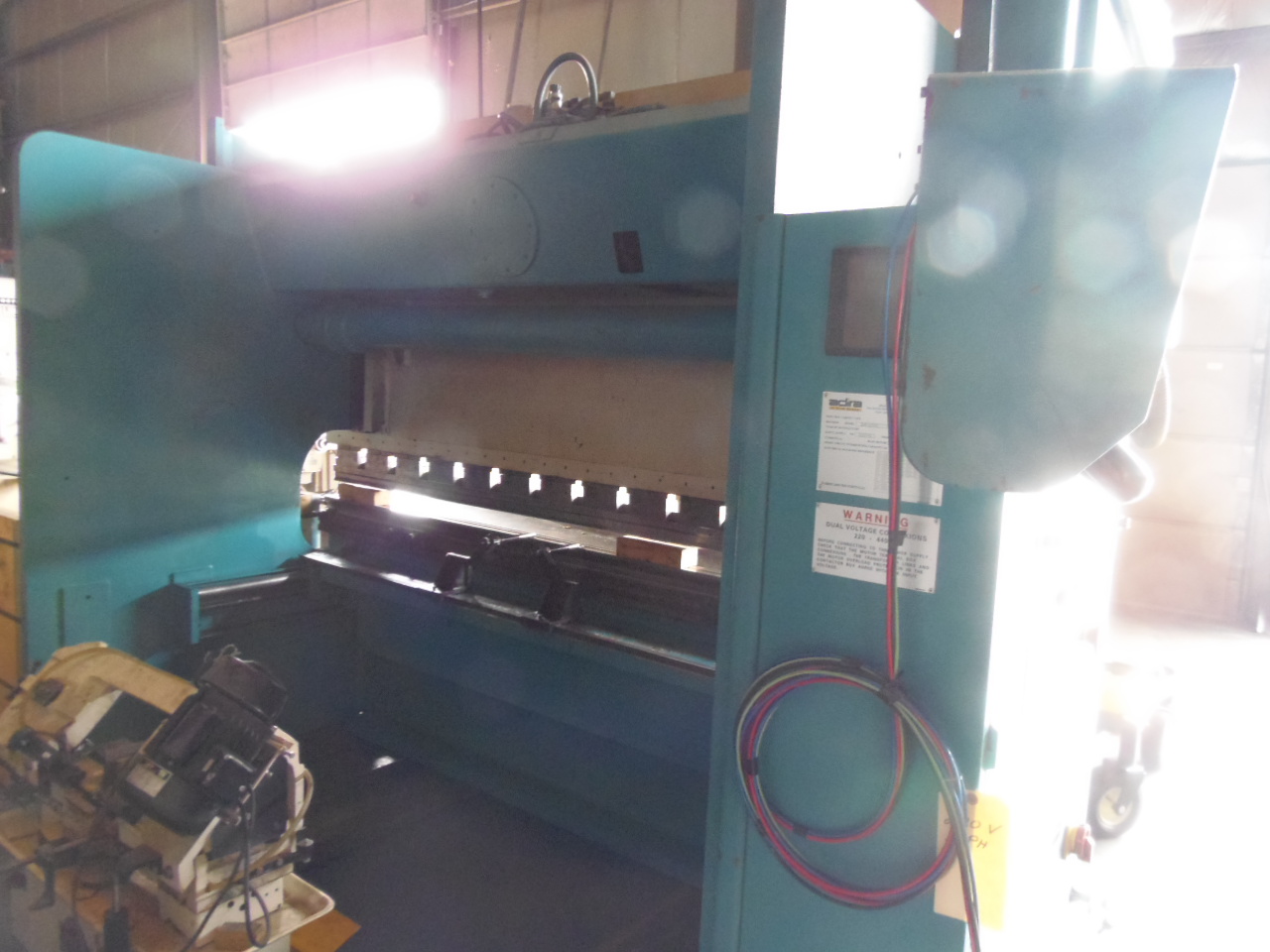

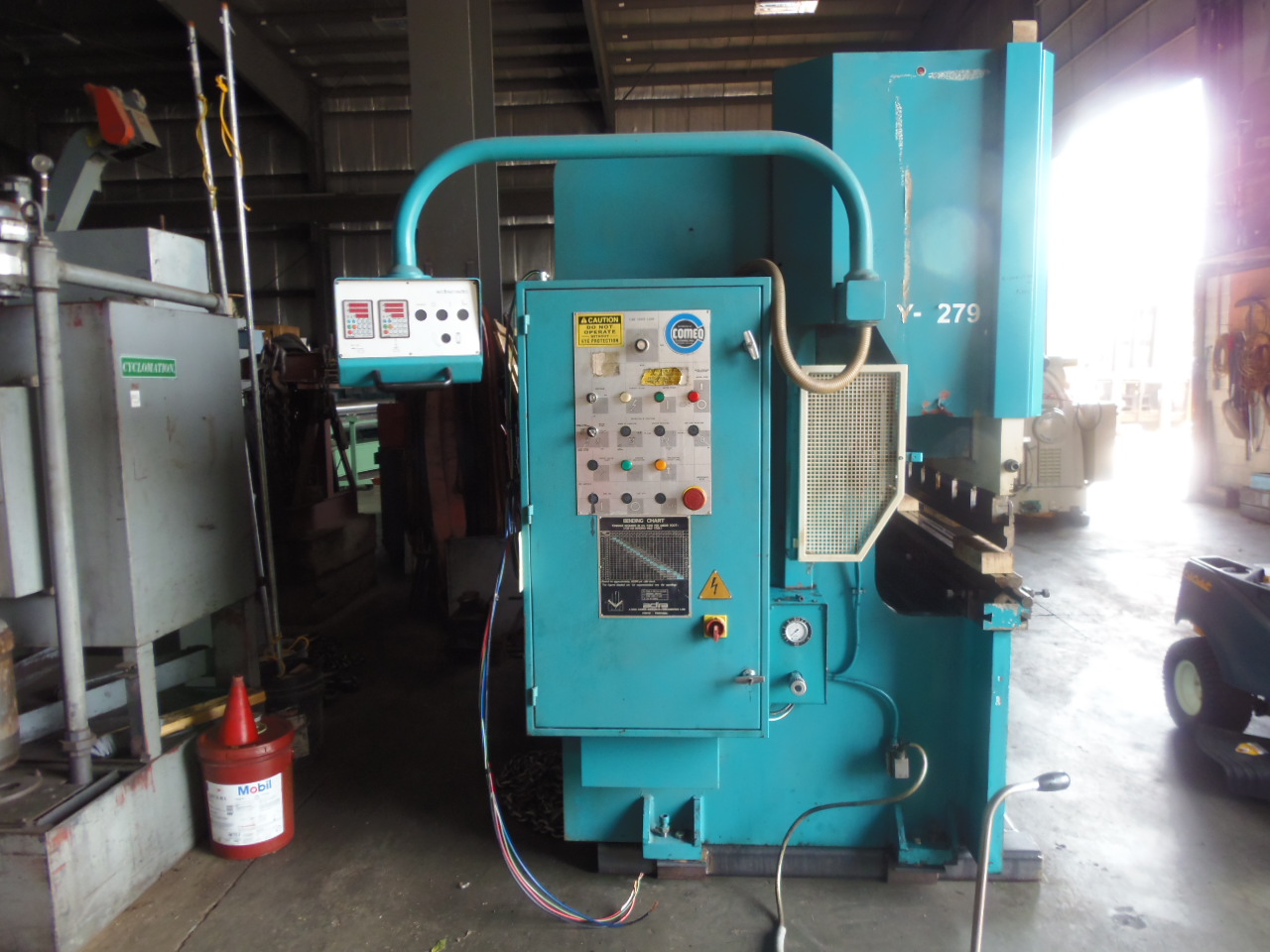

MANUFACTURER.................. ADIRA
MODEL......................... QHD-10030
NEW........................... 1999
MAX. BENDING LENGTH........... 10'
DISTANCE BETWEEN HOUSINGS..... 8'4"
TOOLING LENGTH................ 10.17"
THROAT DEPTH.................. 12.2"
MAX. STROKE LENGTH............ 4"
OPEN HEIGHT................... 12.2" W/O TOOLING
SHUT HEIGHT................... 8.2" W/O TOOLING
BED TOP WIDTH................. 4.9"

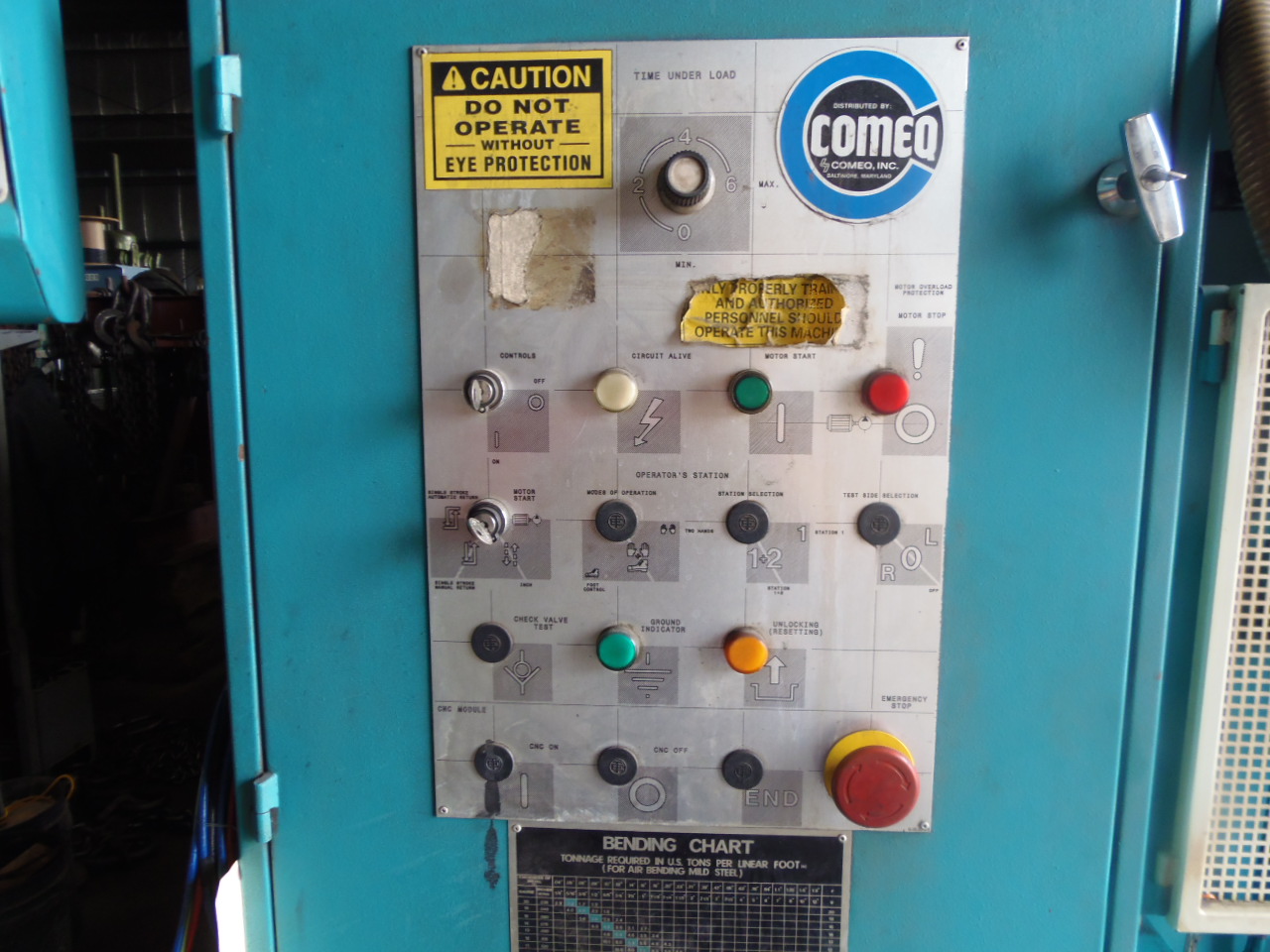

ADIRAMATIC 2011 RAM CONTROL
APPROACH SPEED................ 3.2 INCHES PER SECOND
PRESSING SPEED................ .24 INCHES PER SECOND
RETURN SPEED.................. 2.1 INCHES PER SECOND

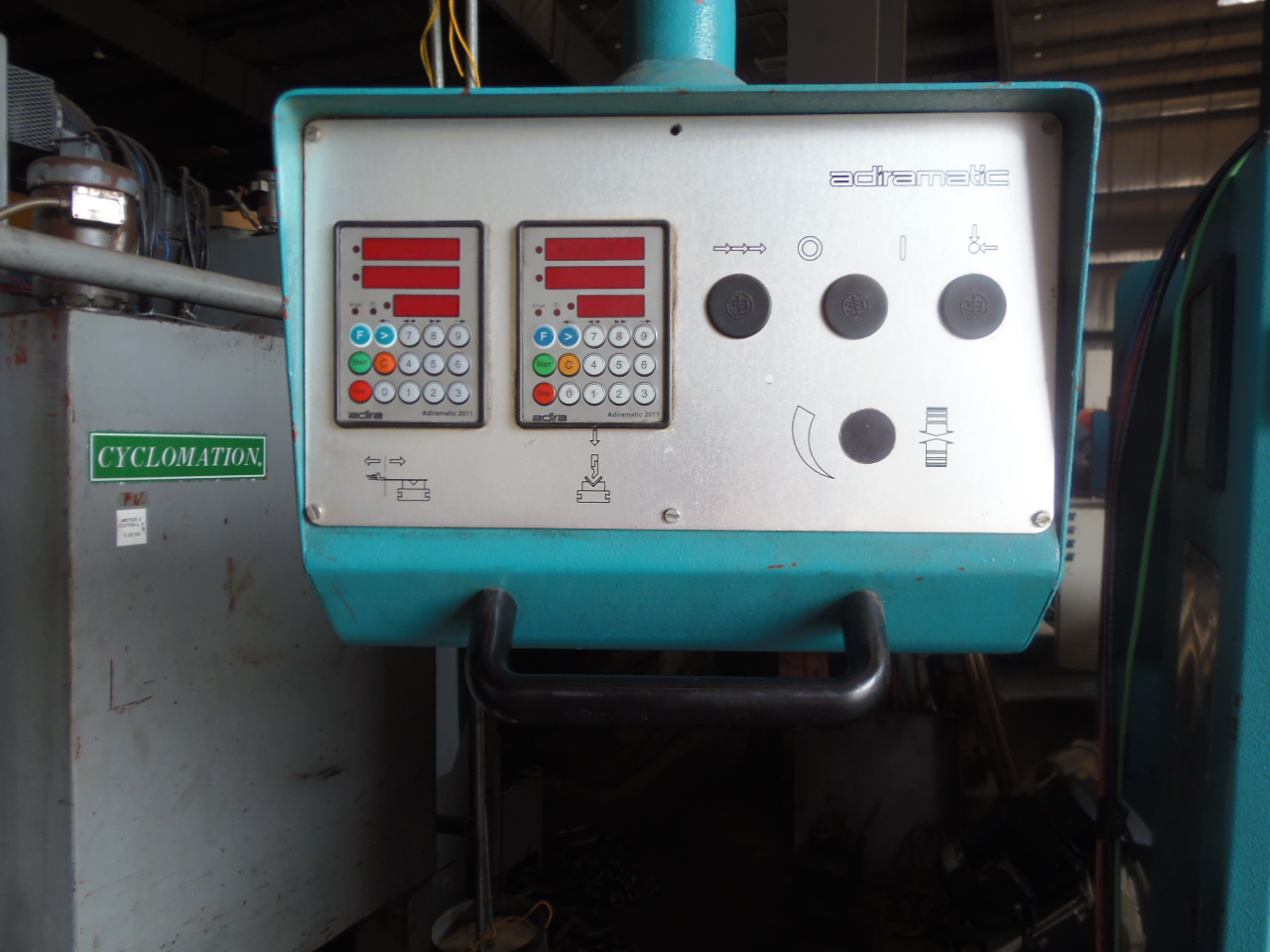

ADIRAMATIC 2011 CNC BACK GAUGE CONTROL
SPEED...................... 1.2 INCHES PER SECOND
MAX. STROKE................ 20"
MOTOR SPEED................... 7.5 HP
APPROXIMATE WEIGHT............ 16,000 LBS
EQUIPPED WITH:
SEVERAL PUNCH HOLDERS
10' 4 WAY DIE WITH V'S OF 1/4", 3/8", 5/8", 1", 1.25", 2"
10' PUNCH
DOUBLE PEDAL FOOT SWITCH
15 CLAMP EXTENSIONS
4 FRONT SUPPORTS
