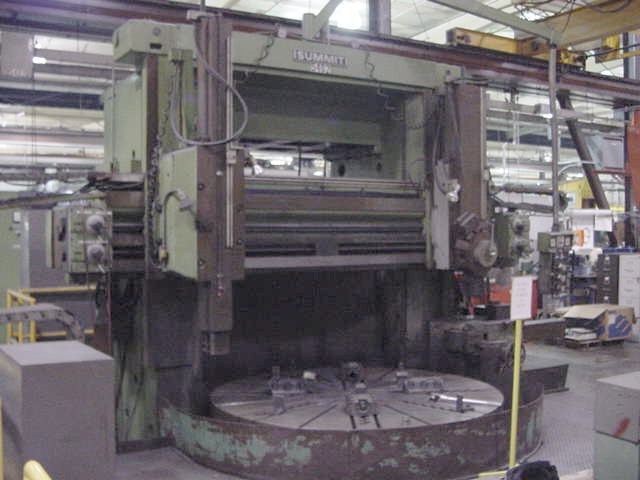

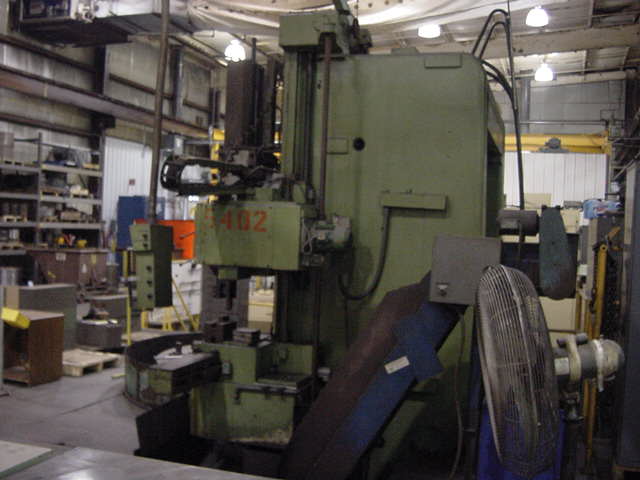

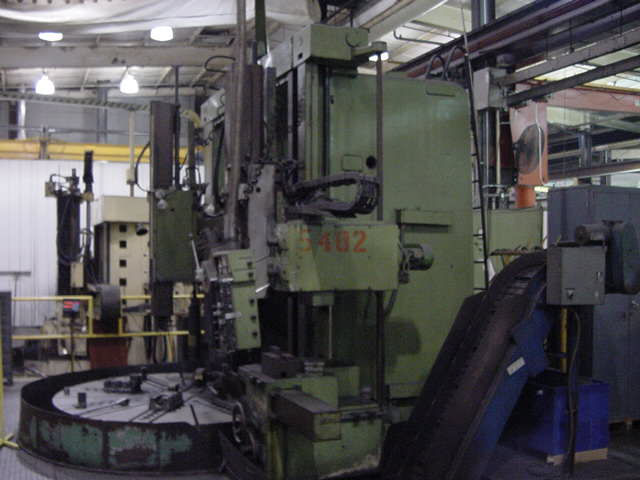

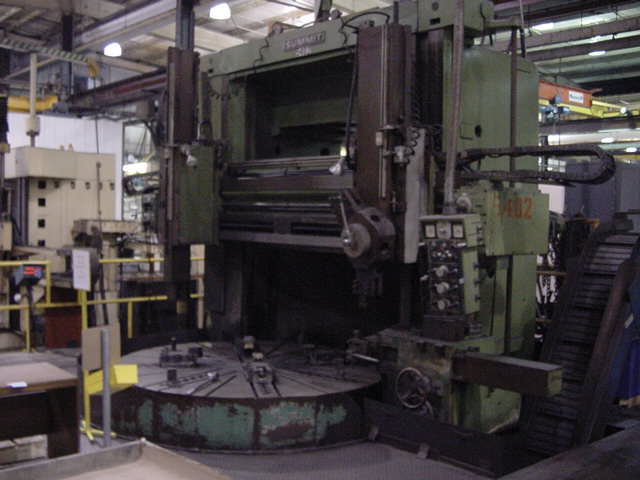

Specifications
Equipped With
GENERAL SPECIFICATIONS:
MANUFACTURER......................... SUMMIT
MODEL................................ 100
SERIAL #............................. 427
NEW APPROXIMATELY.................... 1987
CAPACITIES:
MAX. DIA. SWING W/EITHER OF
THE VERTICAL HEADS............. 106"
MAX. DIA. SWING OF THE SIDEHEAD... 102-3/8"
MAX. MACHINING HEIGHT ABOVE
TABLE.......................... 76"
MAX. WEIGHT OF WORKPIECE.......... 33,000 LBS.
TABLE:
DIAMETER(4 JAW)................... 98-1/2"
THICKNESS......................... 10-1/4"
# OF T-SLOTS (RADIAL)............. 24
HEIGHT FROM FLOOR................. 38-1/4"
T-SLOT SIZE....................... 1-1/8"
SPEEDS (3 GEAR RANGES)............ INFINITELY VARIABLE
SPEED RANGES...................... 1.24 - 112 RPM
DRIVE MOTOR (DC).................. 75 HP
BEARINGS (TYPE)................... PRECISION TAPERED ROLLER
VERTICAL HEADS:
# OF VERTICAL HEADS............... 2
TYPE: L.H......................... 1 PLAIN VERTICAL
R.H......................... 1 PENTAGONAL TURRET
SWIVEL OF EACH.................... 35 R TO 35 L
TRAVEL:
LEFT HAND PLAIN VERT. HEAD..... 47-1/4"
RIGHT HAND PENTAGONAL
TURRET HEAD................. 30"
HORIZONTAL OF EITHER
HEAD ON RAIL................ 45-5/32"
HOLE DIAMETER IN FACES OF
PENTAGONAL TURRET.............. 3-1/8"
SIZE OF LEFT HAND VERTICAL RAM.... 9-1/4" SQUARE
SIZE OF RIGHT HAND PENTAGONAL
TURRET SLIDE................... 17" X 8-1/2"
SIDE HEAD:
VERTICAL FEED..................... 74-3/4"
HORIZONTAL FEED................... 35-1/2"
SIZE OF SIDE HEAD RAM............. 7-1/2" SQUARE
RAIL:
VERTICAL TRAVEL OF RAIL THAT
VERTICAL HEADS ARE MOUNTED ON.. 65"
MIN. FROM RAIL TO TOP OF TABLE.... 12-1/2"
MAX. FROM RAIL TO TOP OF TABLE.... 77-1/2"
FEEDS:
# OF FEEDS TO VERTICAL
AND SIDE HEADS................. 16
FEED RANGE PER TABLE REVOLUTION... .00197 - .1968 IPM
RAPID TRAVERS FOR ALL 3 HEADS..... 98-27/64 IPM
FEED OF CROSS RAIL ON UPRIGHTS.... 15-3/4 IPM
MOTORS:
MAIN DRIVE MOTOR (DC)............. 75 HP (DC DRIVE)
RAIL ELEVATING MOTOR.............. 10 HP
RAPID TRAVERS MOTOR POWER......... 4 HP
DIMENSIONS AND WEIGHTS:
OVERALL WIDTH..................... 189"
OVERALL FRONT TO BACK............. 189"
OVERALL HEIGHT.................... 197"
WEIGHT (APPROX.).................. 85,500 LBS.
NOTE: SPECIFICATIONS ARE FROM CATALOG, PLEASE CALL TO VERIFTY ANY INFORMATION.
EQUIPPED WITH:
CENTRAL LUBE
FLUSH FLOOR MOUNT
3 SPEED TRANSMISSION
ELECTRIC FEED
