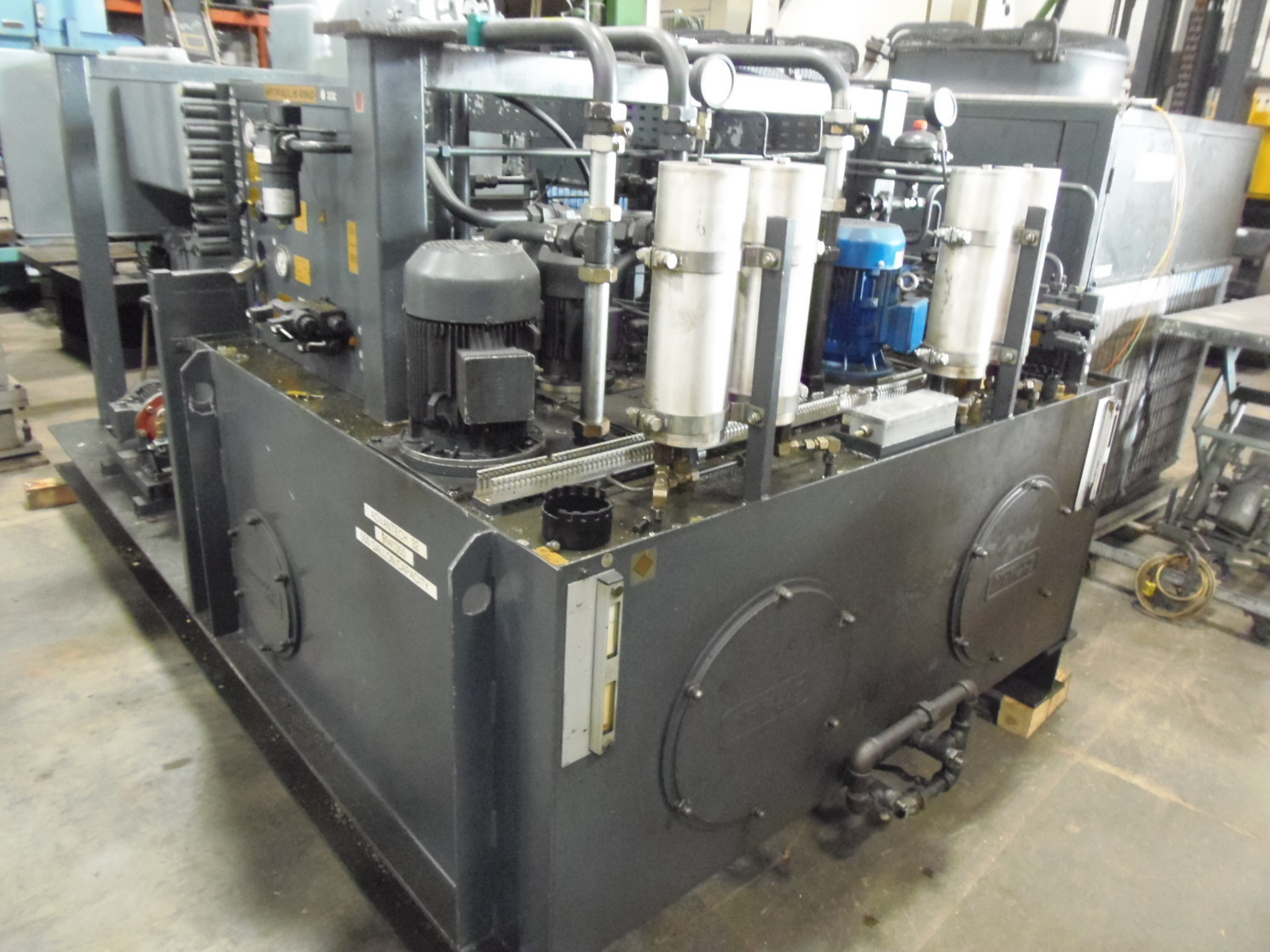

100 HP HYDRAULIC AND HYDRO STATIC SYSTEM CONSISTING OF 10 PUMPS & MOTORS WITH COOLING UNIT. 740 GALLON TANK

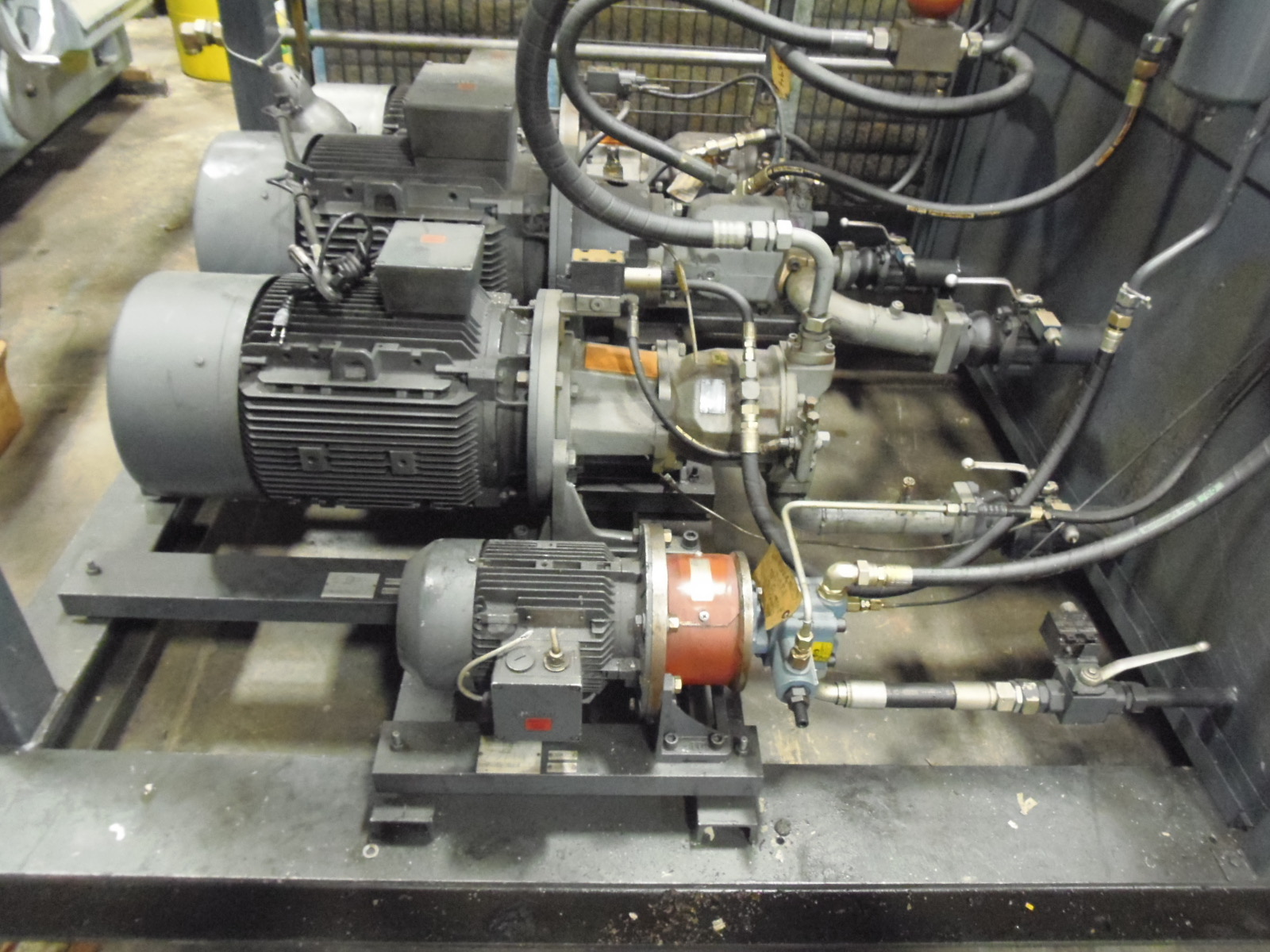

3 HYDROMATIK CIRCULATION PUMPS WITH SIEMENS COMBINATION
 4KW (5.36 H.P.) MOTORS, 1500/1800 RPM
PUMPS 230/275 cdm/min, 5 BAR PRESSURE

1 REXROTH HYDRAULIC PUMP WITH SIEMENS
30KW (40 H.P.) MOTOR, 1500/1800 RPM
PUMP 120 cdm/min, 100 BAR PRESSURE

1 REXROTH HYDRAULIC PUMP WITH SIEMENS
22KW (29 H.P.) MOTOR, 1500/1800 RPM
PUMP 95 cdm/min, 100 BAR PRESSURE

2 HYDROMATIK CIRCULATION PUMP WITH SIEMENS
.37 KW (1/2 H.P.) MOTOR, 1500/1800 RPM
PUMP 4/4.8 cdm/min, 13 BAR PRESSURE

1 HYDROMATIK HYDRAULIC PUMP WITH SIEMENS
1.5 KW (2 H.P.) MOTOR, 1500/1800 RPM
PUMP 2.3/2.7 cdm, 240 BAR PRESSURE

1 HYDROMATIK HYDRAULIC PUMP WITH SIEMENS
2.2 KW (3 H.P.) MOTOR, 1500/1800 RPM
PUMP 10 cdm/min, 90 BAR PRESSURE

1 REXROTH HYDRAULIC PUMP WITH SIEMENS
  22KW (29 H.P.) MOTOR, 1500/1800 RPM
PUMP 120 cdm/min, 70 TO 80 PAR PRESSURE

2800 LITER/740 GALLON TANK DIVIDED INTO TWO SECTIONS

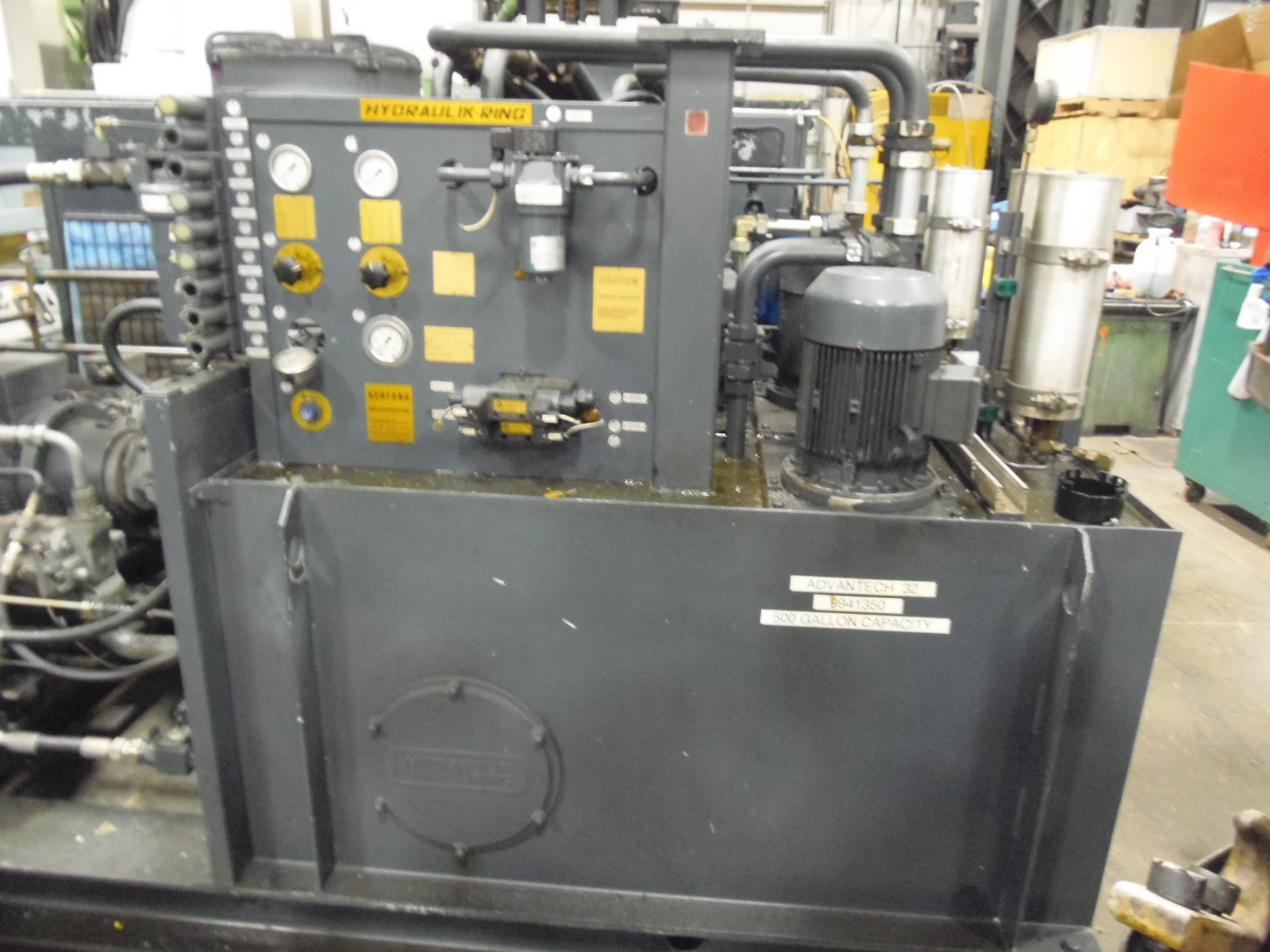

   1200 LITER/317 GALLON HYDRAULIC TANK
   1600 LITER/423 GALLON HYDROSTATIC FLUID TANK

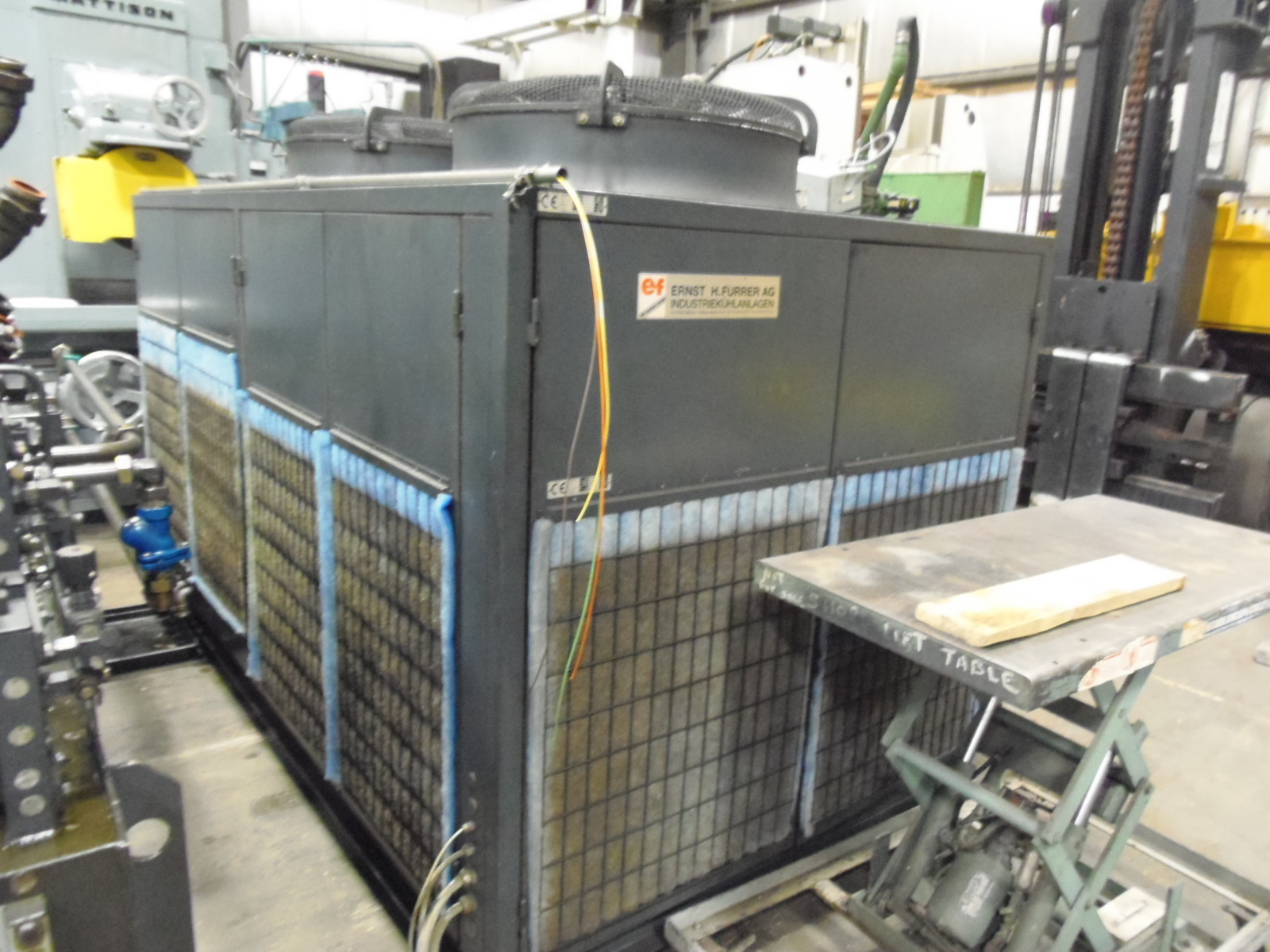

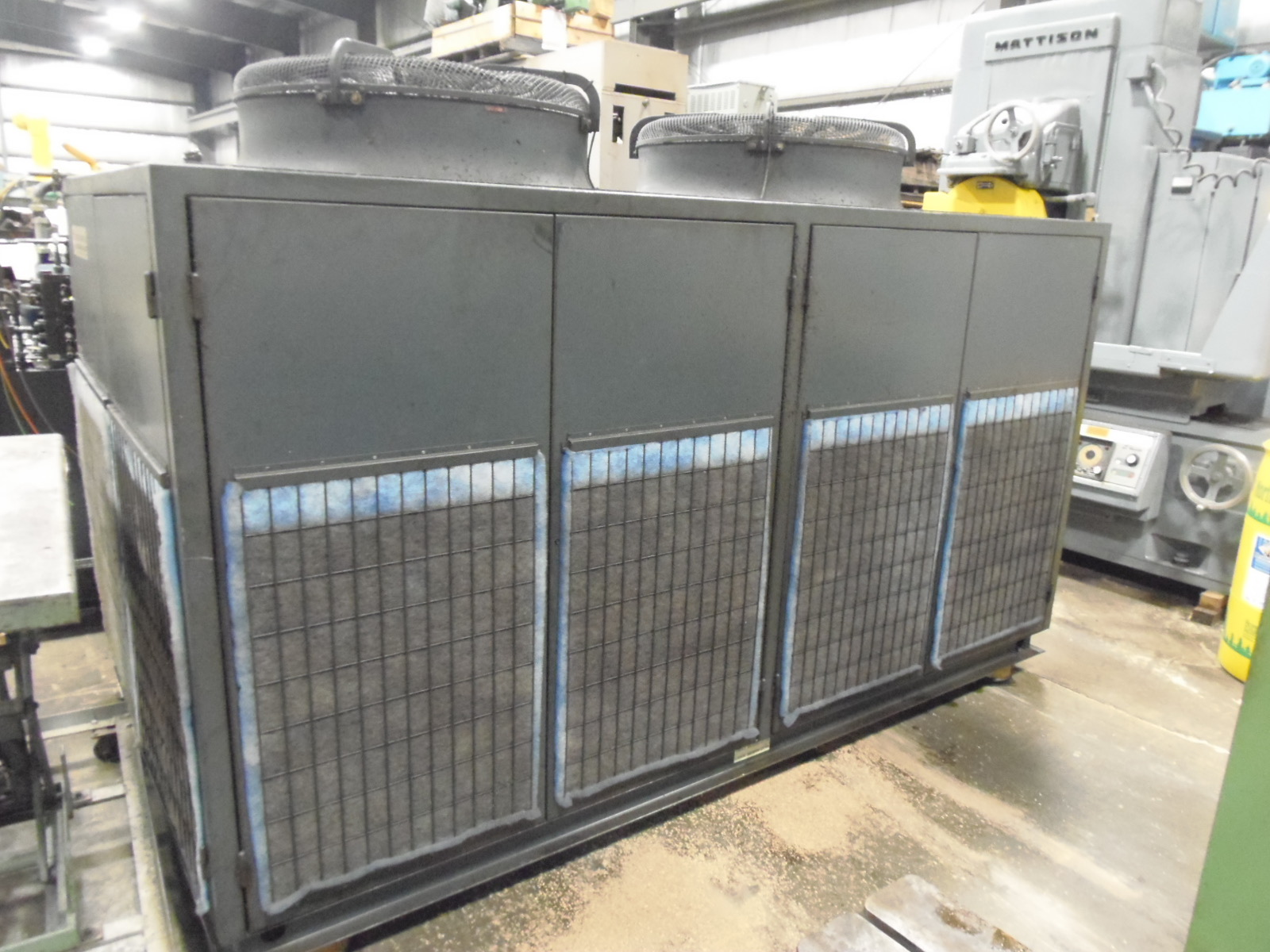

ERNST H. FURRER AG INDUSTRIAL HEAT EXCHANGER MODEL OK945/3
