Specifications
Equipped With
GENERAL SPECIFICATIONS:
MANUFACTURER....................... KARSTENS
MODEL.............................. 16AS
SERIAL............................. 1374
SWING.............................. 10"
CENTER DISTANCE.................... 20"
FEED RANGE VARY.................... .000004 - .001
MAX. WORK PIECE WEIGHT............. 175 LBS WITH CENTER
WORKHEAD SPEED..................... 50-450 RPM
WHEELHEAD SPEED.................... 220/310/400
MAXIMUM GRINDING WHEEL SIZE........ 16"
MAXIMUM GRINDING WHEEL WIDTH....... 3"
APPROX. INTERNAL GRINDING DEPTH.... 4.7"
APPROX. WEIGHT..................... 4,400 LBS
EQUIPPED WITH:
LONGITUDINAL OR PLUNGE CUT HYDRAULIC FEED
11.5 DEGREE TABLE SWIVEL

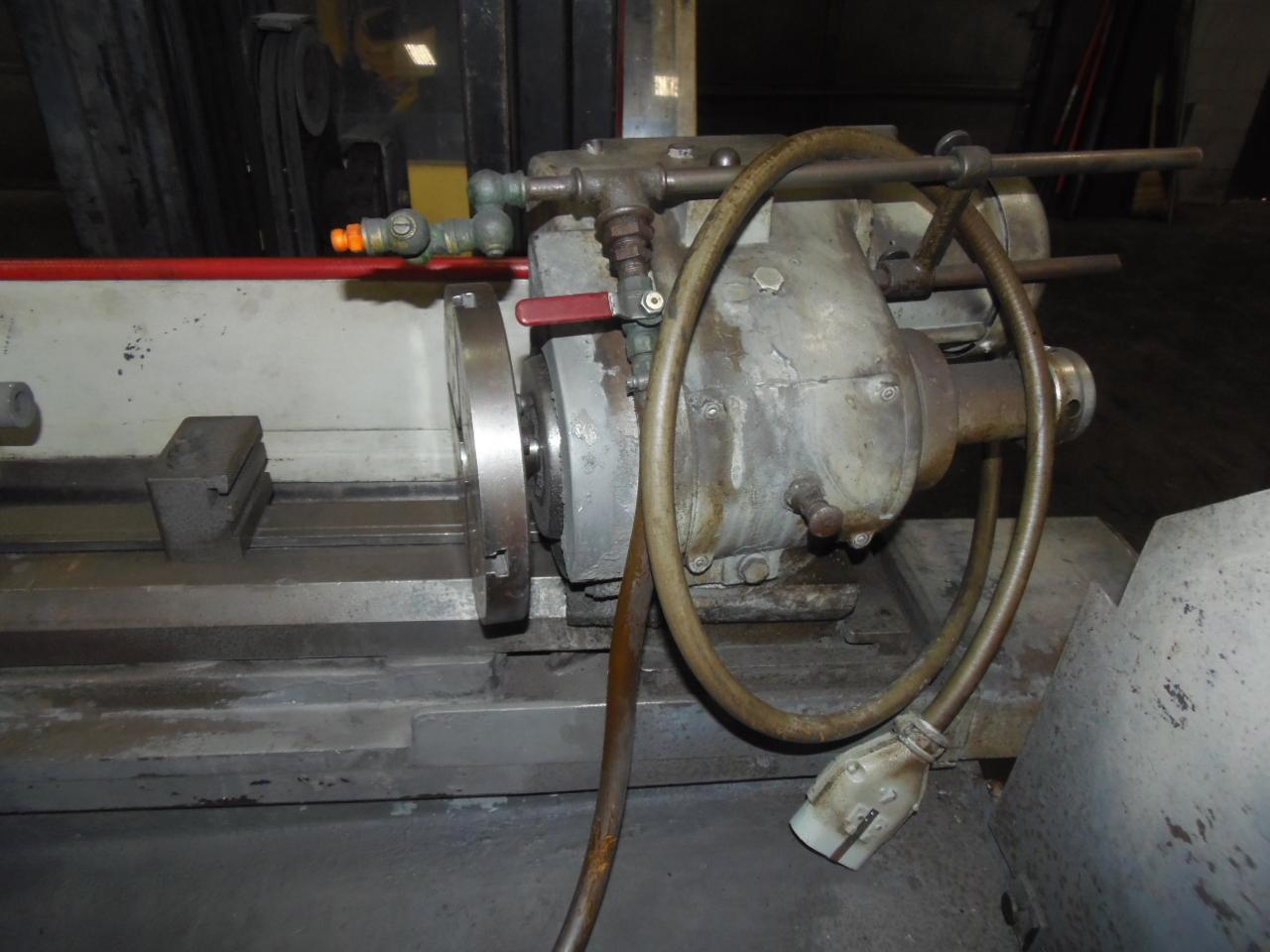

SWIVEL WORKHEAD
FINE AND COMPENSATING FEED
TAILSTOCK
LIVE/DEAD WORKHEAD

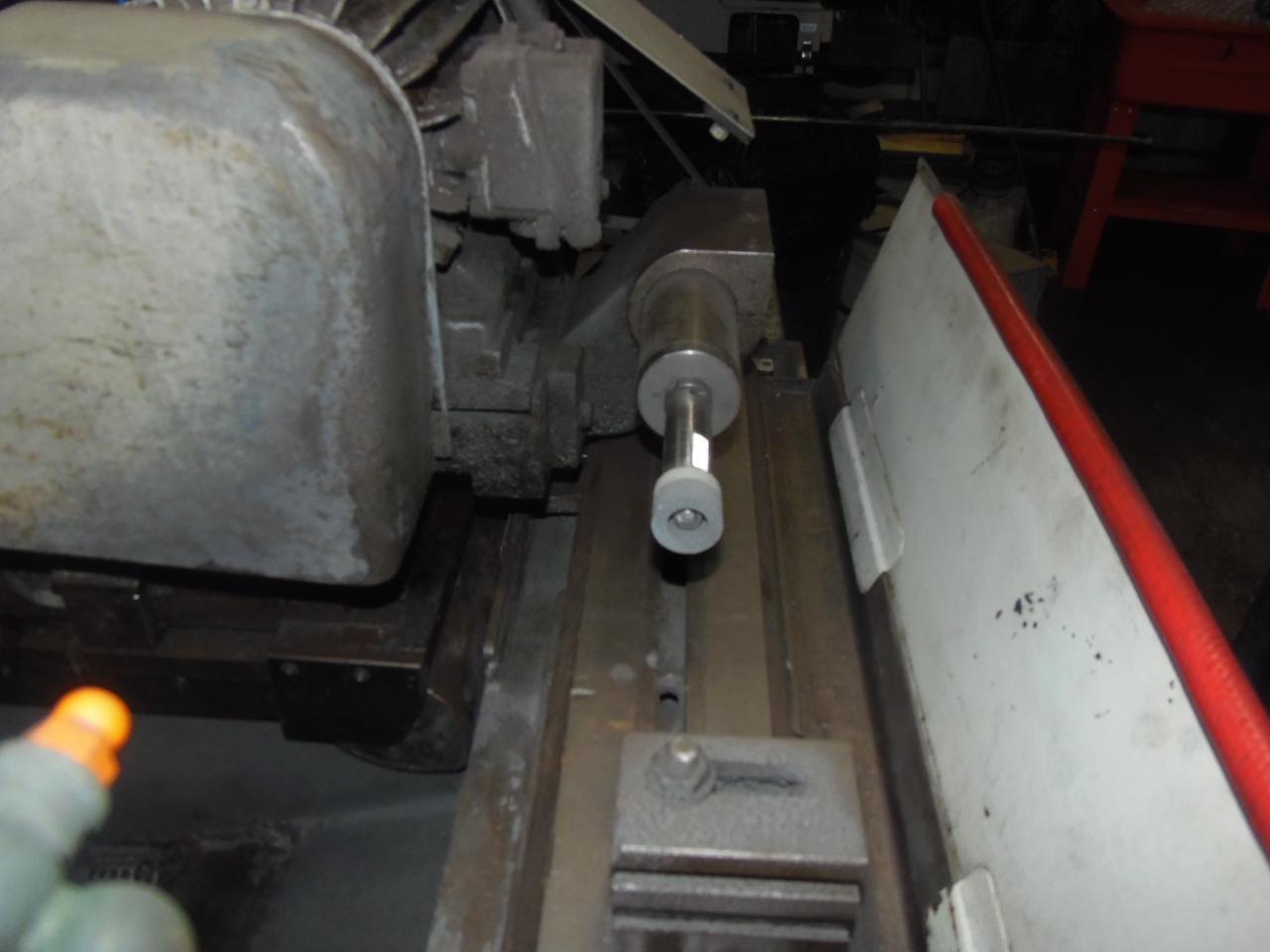

INTERNAL ATTACHMENT
COOLANT
