SPECIFICATIONS:

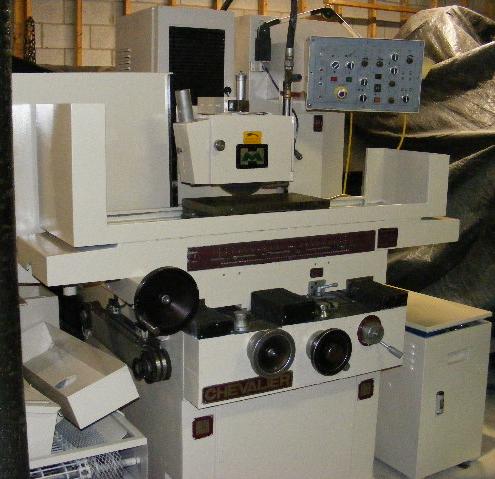

MANUFACTURER............................... CHEVALIER
MODEL...................................... FSG-1020AD
SERIAL NUMBER.............................. 25145
YEAR....................................... 1987
Grinding capacity.......................... 10" x 20"
Table size................................. 10" x 20"
Spindle centre t0 table top................ 21 1/2"
Standard grinding wheel.................... 12" x 1-1/4" x 3"
Longitudinal travel, automatic............. 22-7/8"
Longitudinal travel, manual................ 24 3/8"
Table speed-longitudinal................... 16 TO 82 FPM
Cross Travel .............................. 11 7/16"
Wheelhead motor............................ 3 HP
Hydraulic motor............................ 2 HP
Electrics.................................. 575/3/60
Floor space................................ 96" x 61" x 75"
Approximate weight......................... 4,200 Lbs
EQUIPED WITH:
Incremental downfeed
Coolant system with filtration
Over-the wheel dresser
magnetic chuck.
