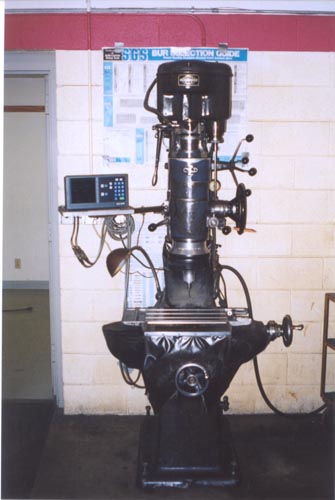

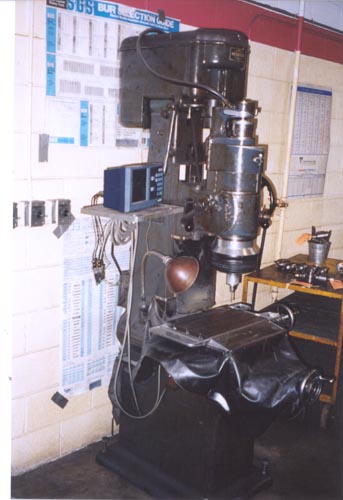

10" x 16" MOORE NO. 1, MICROMETER STOP, 40000 RPM, 2-AXIS DRO

GENERAL SPECIFICATIONS:
MANUFACTURER MOORE
MODEL NO. 1
TABLE SIZE 10" x 16"
TABLE TRAVEL 9-1/4" x 14-1/4"
MAX. HEIGHT(TBL TOP TO WHL CHK) 9"
SPINDLE TO COLUMN WAYS 10"
SPINDLE TO COLUMN BELOW WAYS 11"
VERT. TRVL MAIN SPINDLE SLIDE 3-5/8"
VERT. TRVL MAIN SPINLDE HOUSING 8"
GRINDING SPEEDS 14,000 & 45,000 RPM
WEIGHT (APPROX.) 2,500 LBS.
ELECTRICS 220/3 PH

EQUIPPED WITH:
MICROMETER STOP
2-AXIS ACU-RITE DIGITAL READOUT
VERTICAL POWERFEED
