Specifications
Equipped With
GENERAL SPECIFICATIONS:

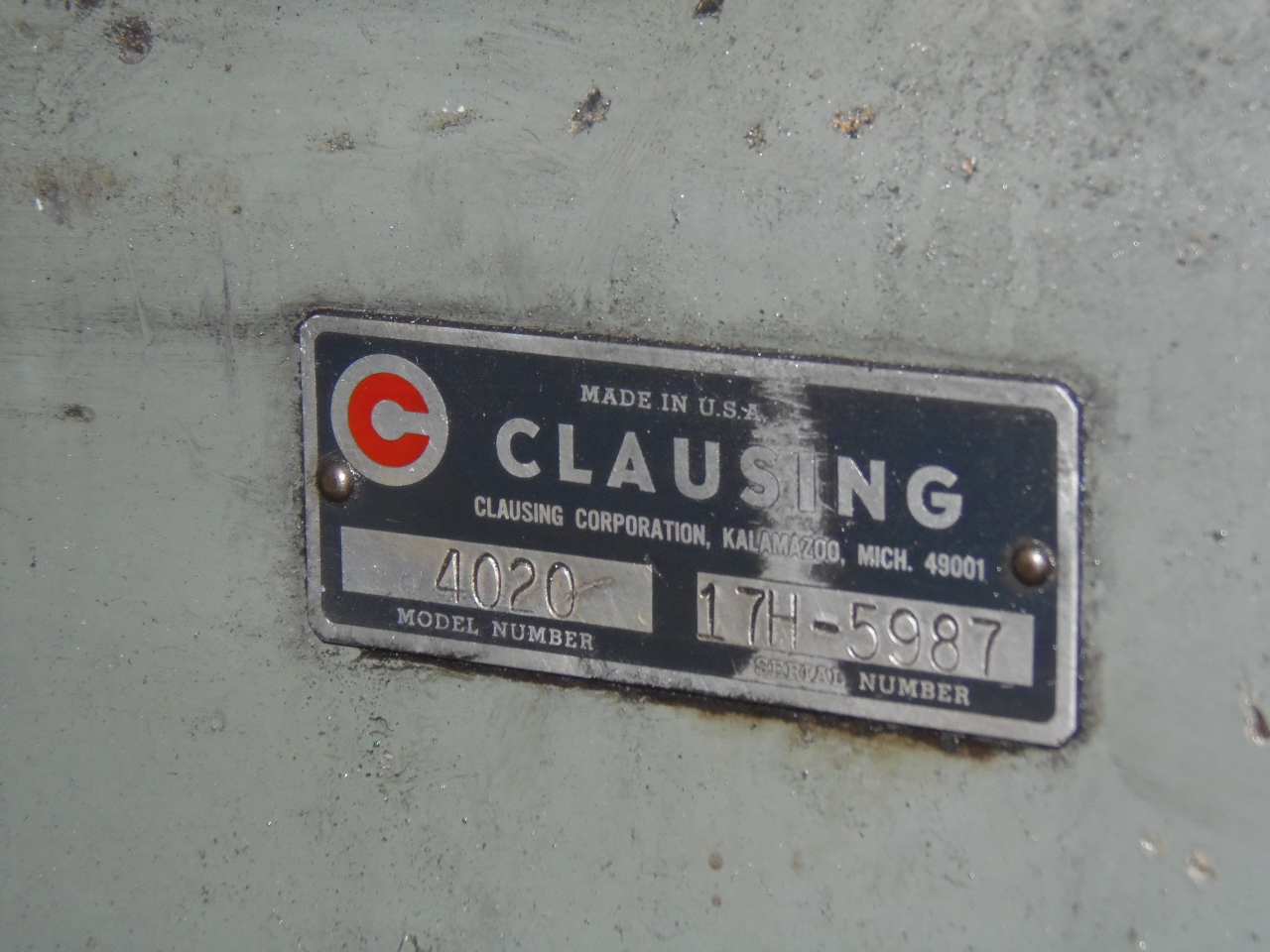

MANUFACTURER........................... CLAUSING
MODEL.................................. 4020
SERIAL................................. 17H-5987
TABLE.................................. 10" X 15"
TRAVELS................................ X 17.5"
................................ Y 10.75"
CAPACITY UNDER 12" WHEEL............... 14"
HYDRAULIC CROSS FEED SPEED............. 5 TO 70 FPM INF. VARIABLE
INFINITELY VARIABLE CROSS FEED RANGE... .005" - .250"
DOWN FEED GRADUATIONS ON WHEEL......... .0005"
VERNIER GRADUATIONS.................... .0001"
MAX WHEEL SIZE......................... 12" X .75" X 3"
WHEEL ON MACHINE....................... 10"
SPINDLE MOTOR.......................... 2 HP
FLOOR SPACE TO RUN MACHINE............. 90" L/R X 58" F/B
HEIGHT................................. 75"
WEIGHT................................. 3,000 LBS
EQUIPPED WITH:

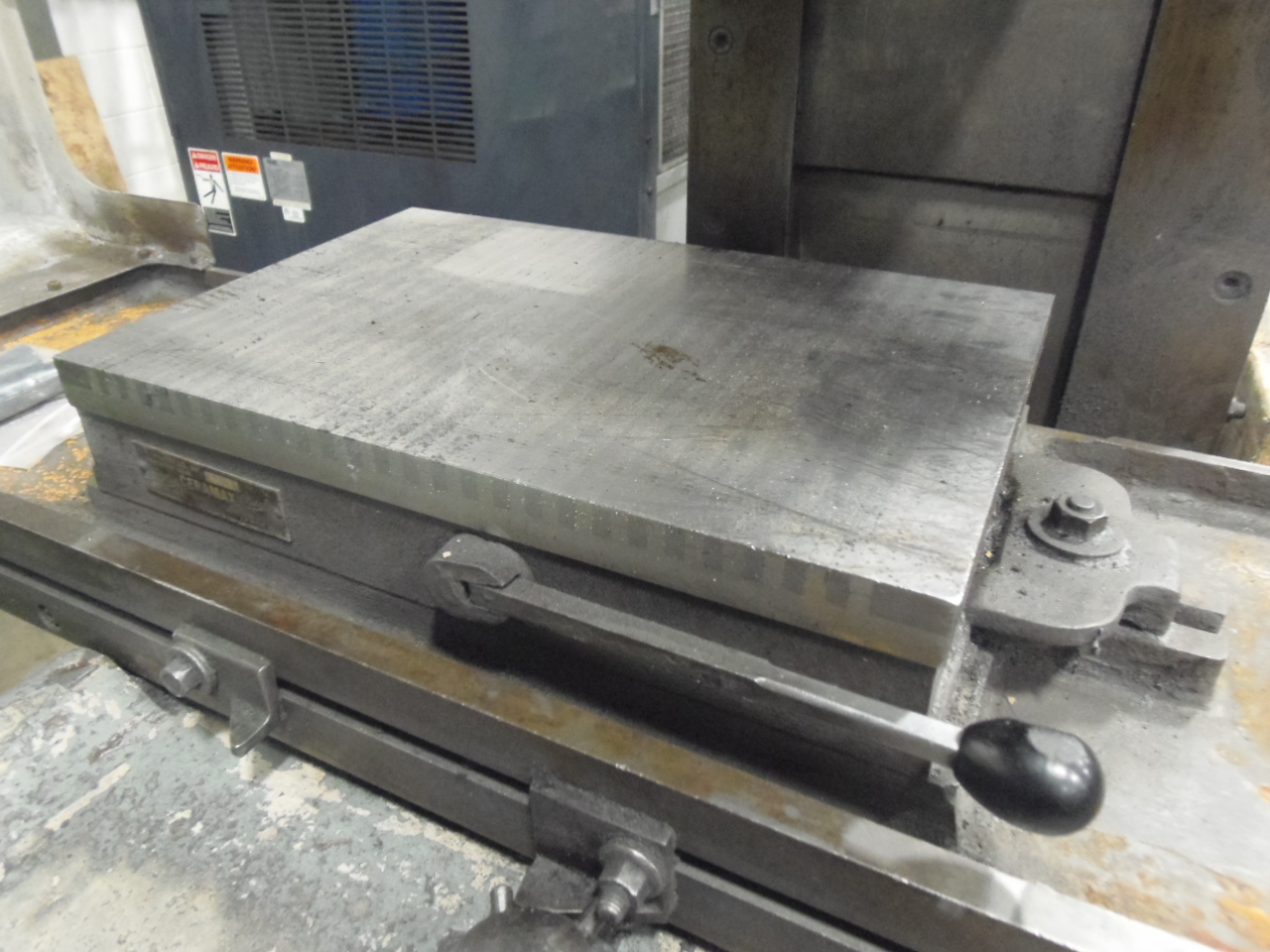

10" X 16" PERMANENT MAGNETIC CHUCK
CHROME WAYS
AUTO LUBE
2 AXIS POWER FEED WITH RAPIDS
MANUAL UP/DOWN
