Specifications
Equipped With
GENERAL SPECIFICATIONS:

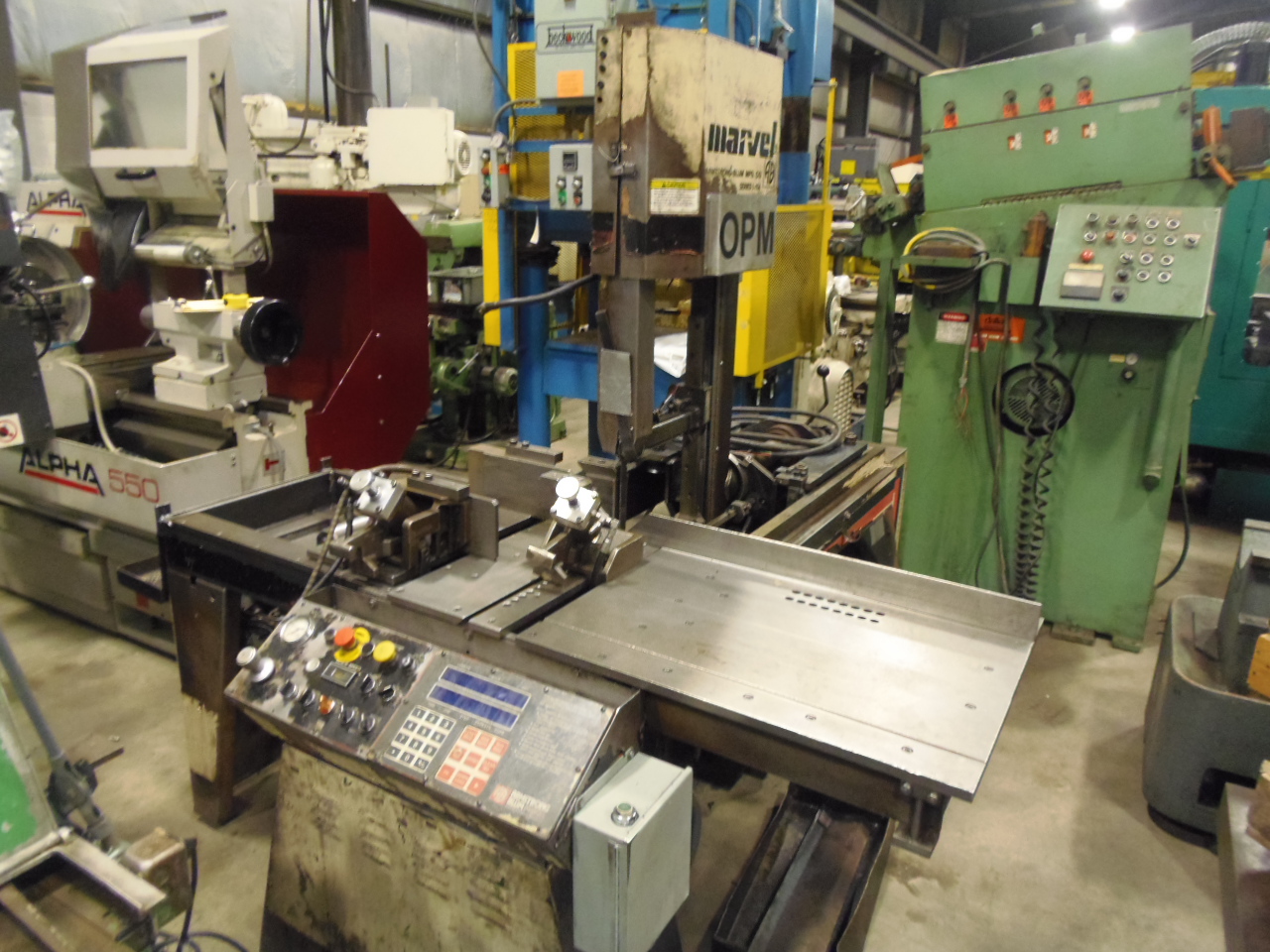

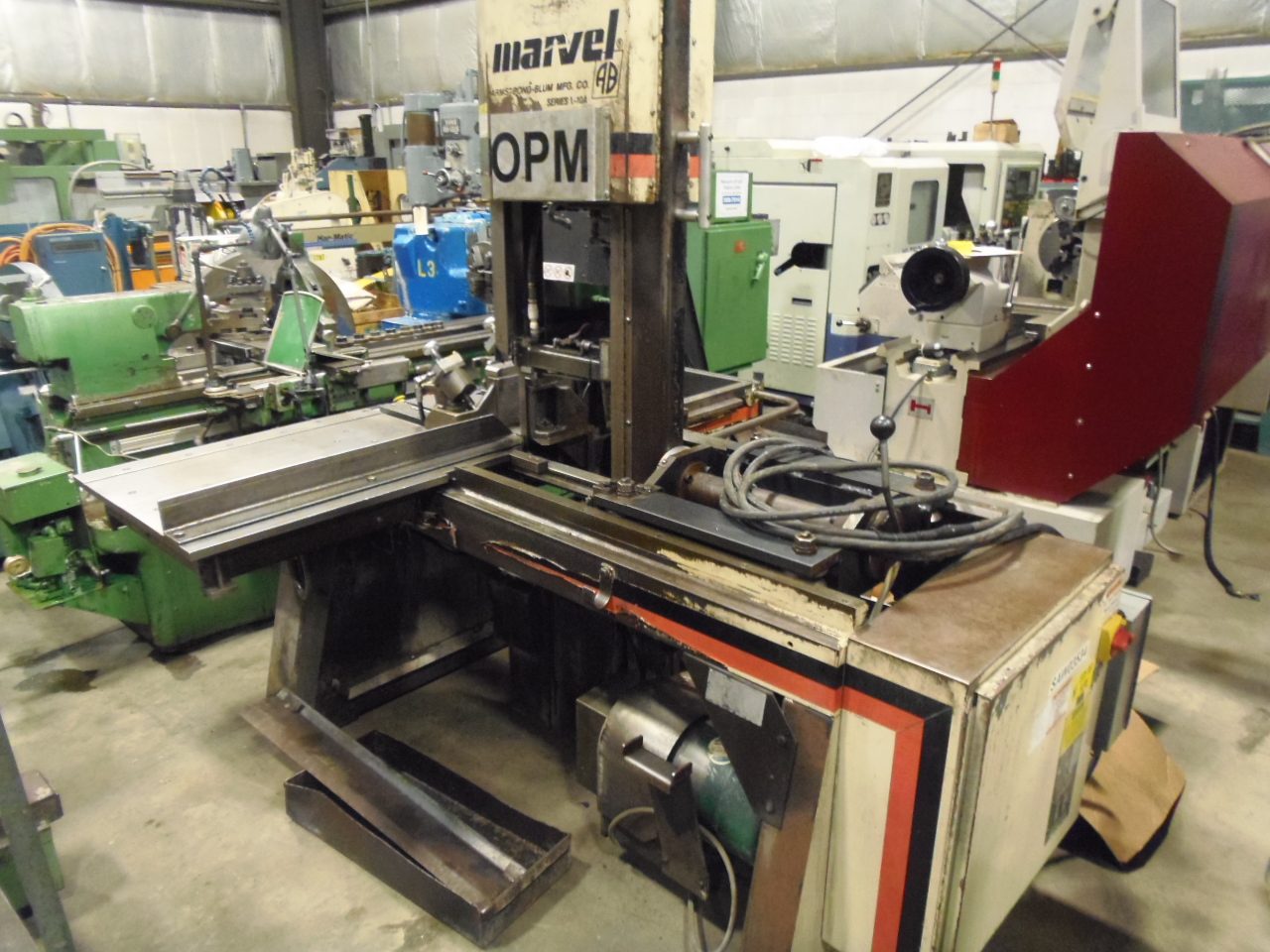

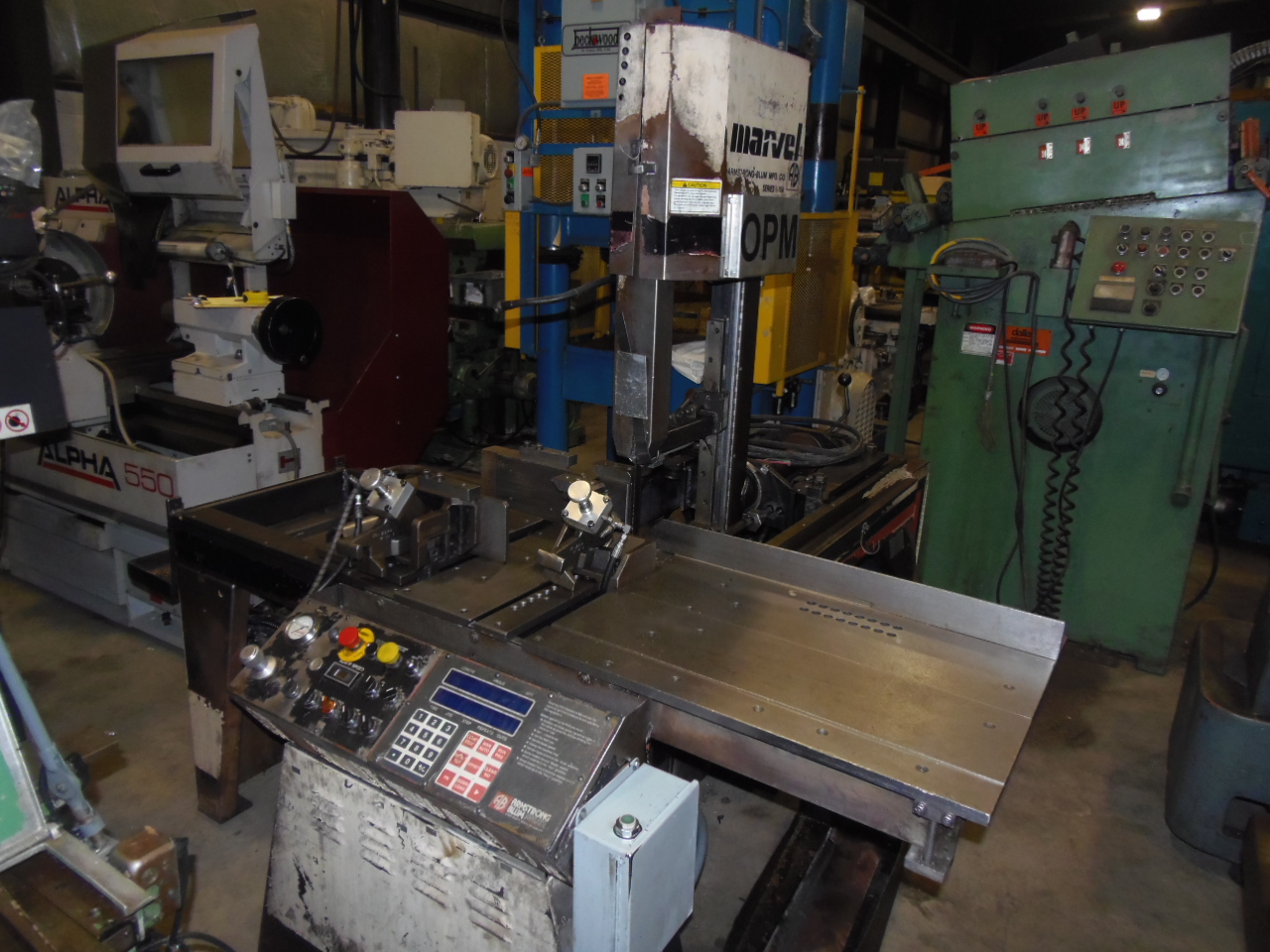

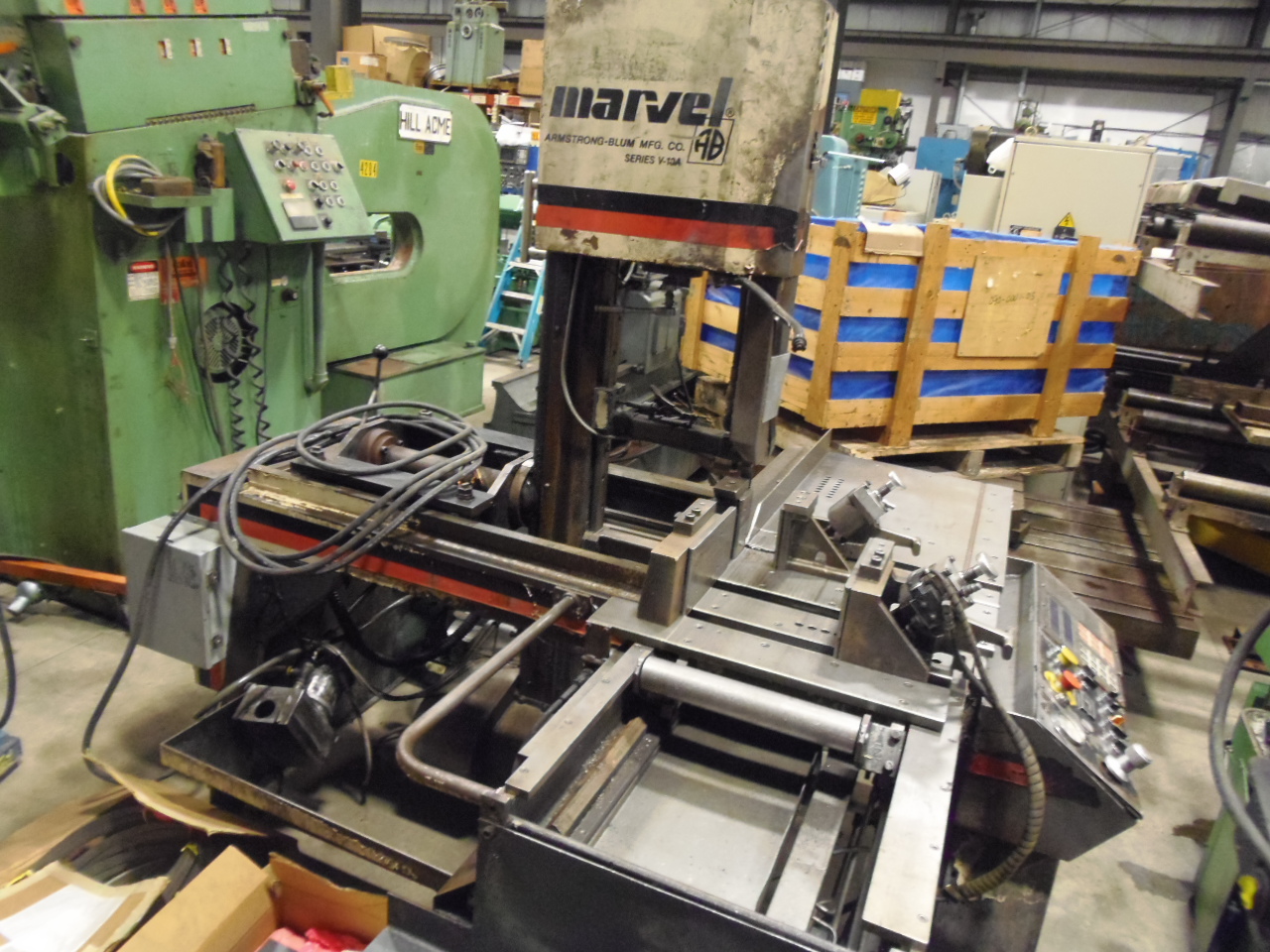

MAKE............................ MARVEL

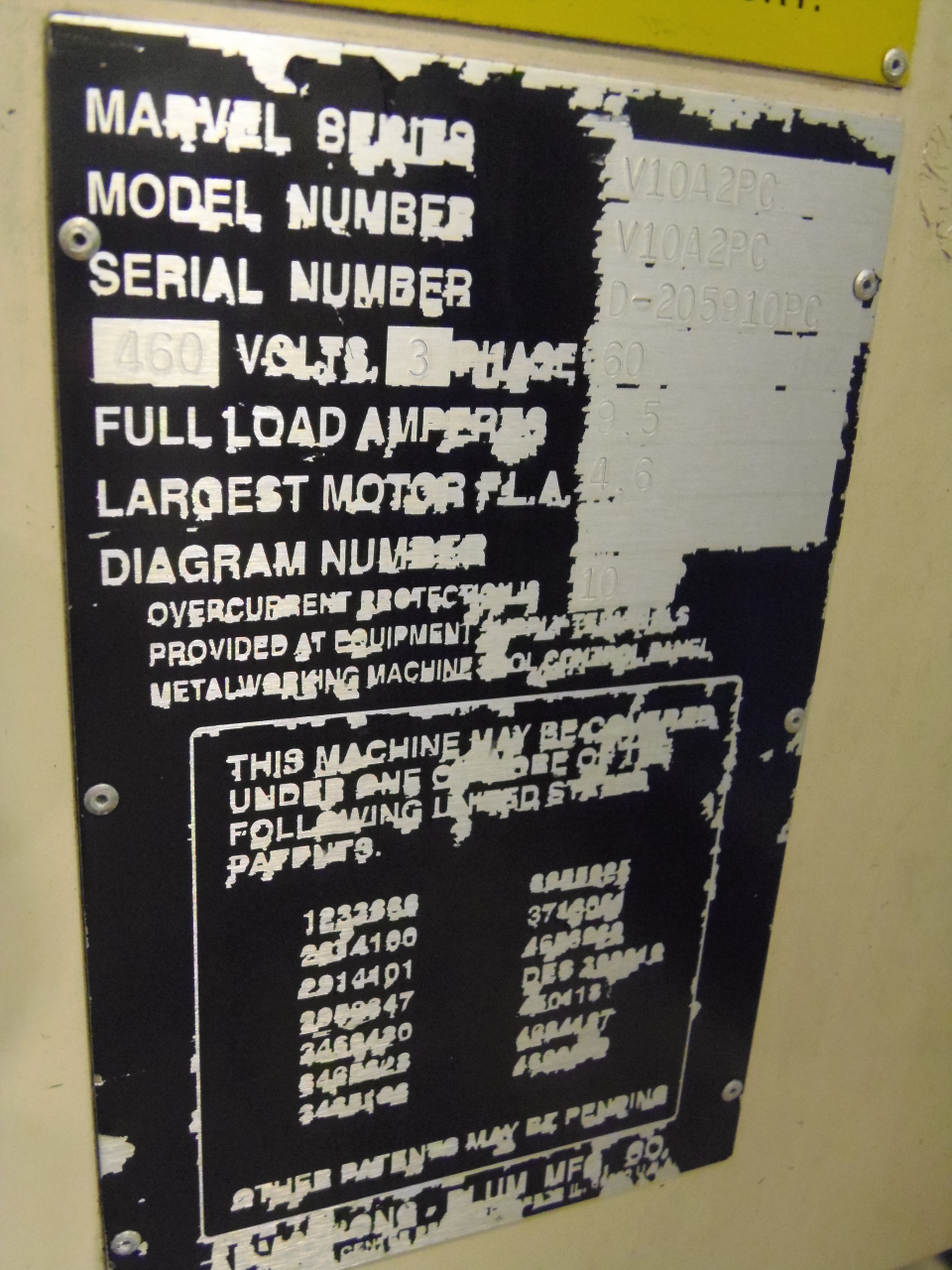

MODEL........................... V-10A2 PC
SERIAL NUMBER................... D-205910PC
AGE (YEAR)...................... 1997
CAPACITY SQUARE @ 90 DEG........ 10" X 14"
CAPACITY SQUARE @ 45 DEG........ 10" X 9"
CAPACITY ROUND @ 90 DEG......... 10"
TABLE........................... 22" X 24"
BLADE........................... 13' 6" X 1"
BLADE THICKNESS................. .035"

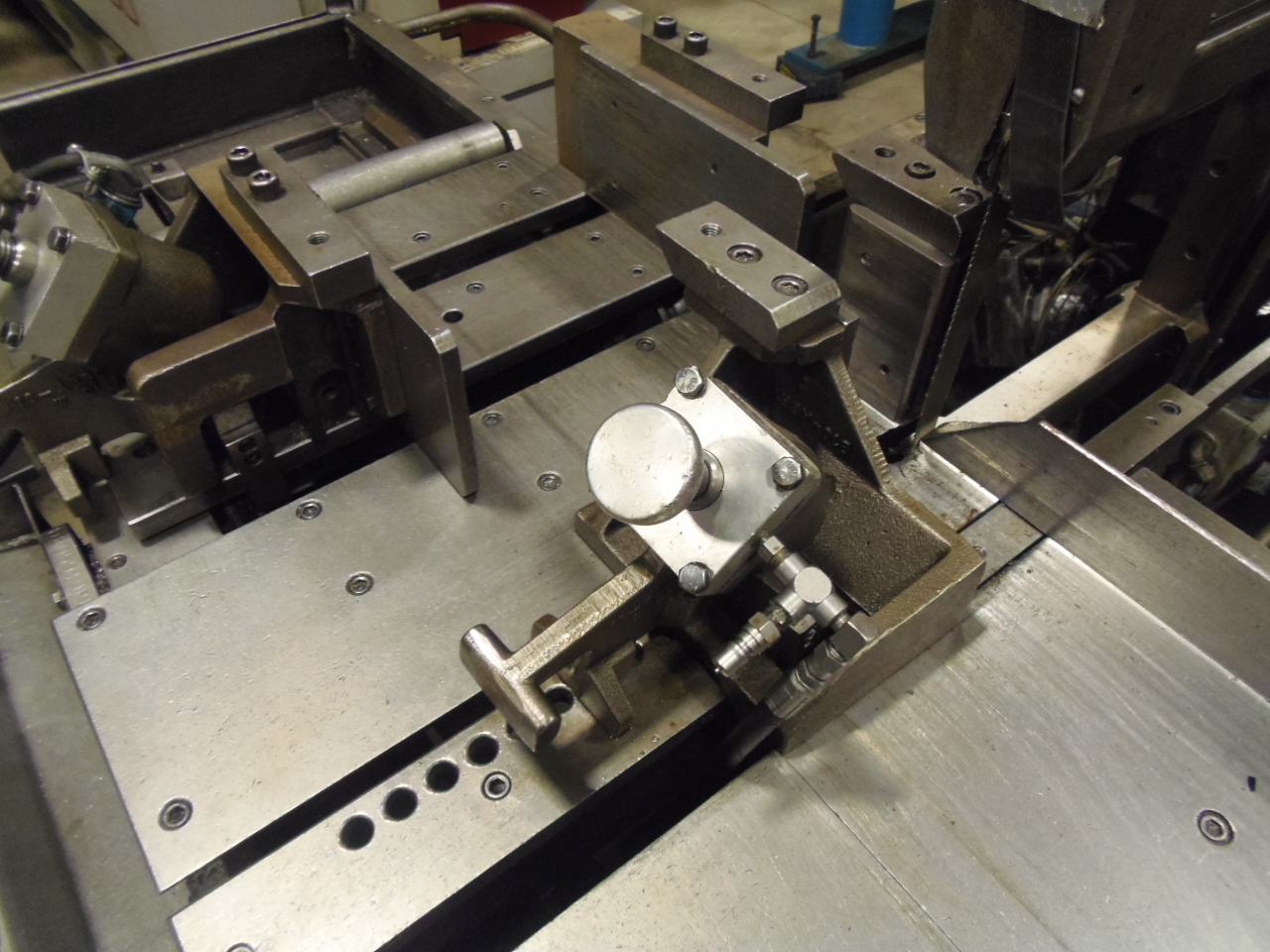

VISES MAX OPENING............... 10.5"
VISES HEIGHT OF JAWS............ 6"
BLADE DRIVE MOTOR............... 3 HP
BLADE SPEEDS (INFINITELY VAR.).. 50-500 FPM
FEED FORCE (INFINITELY VAR.).... 0-250 LBF
SHUTTLE BAR FEED WEIGHT CAP..... 5000 LBS.
MAX LENGTH ONE INDEX............ 15"
MAX CYCLES...................... 9
DIMENSIONS...................... 89" X 89" X 82" H
WEIGHT.......................... 3500 LBS.
EQUIPPED WITH:

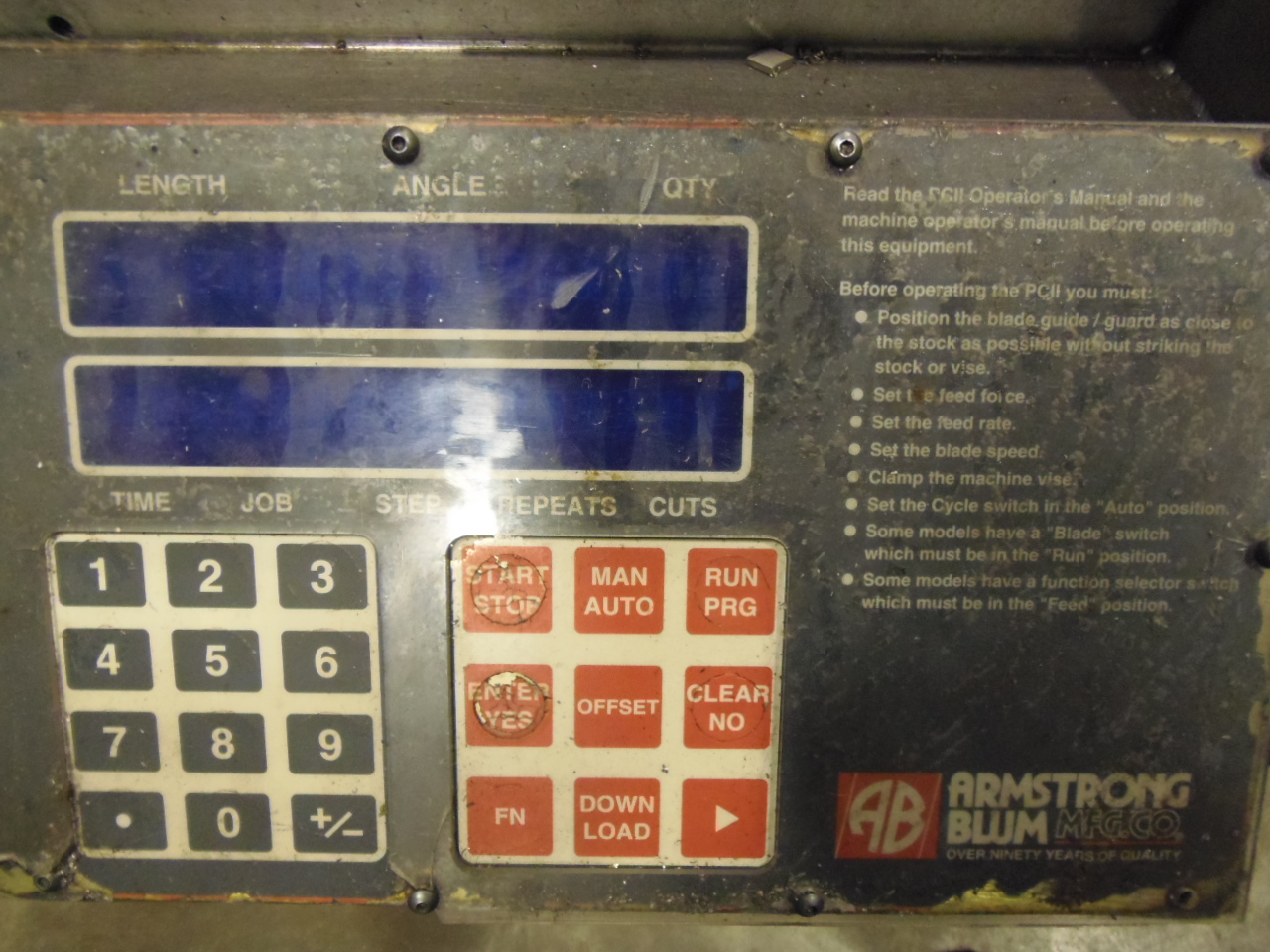

MARVEL SERIES V-10A PROGRAMMABLE CONTROL

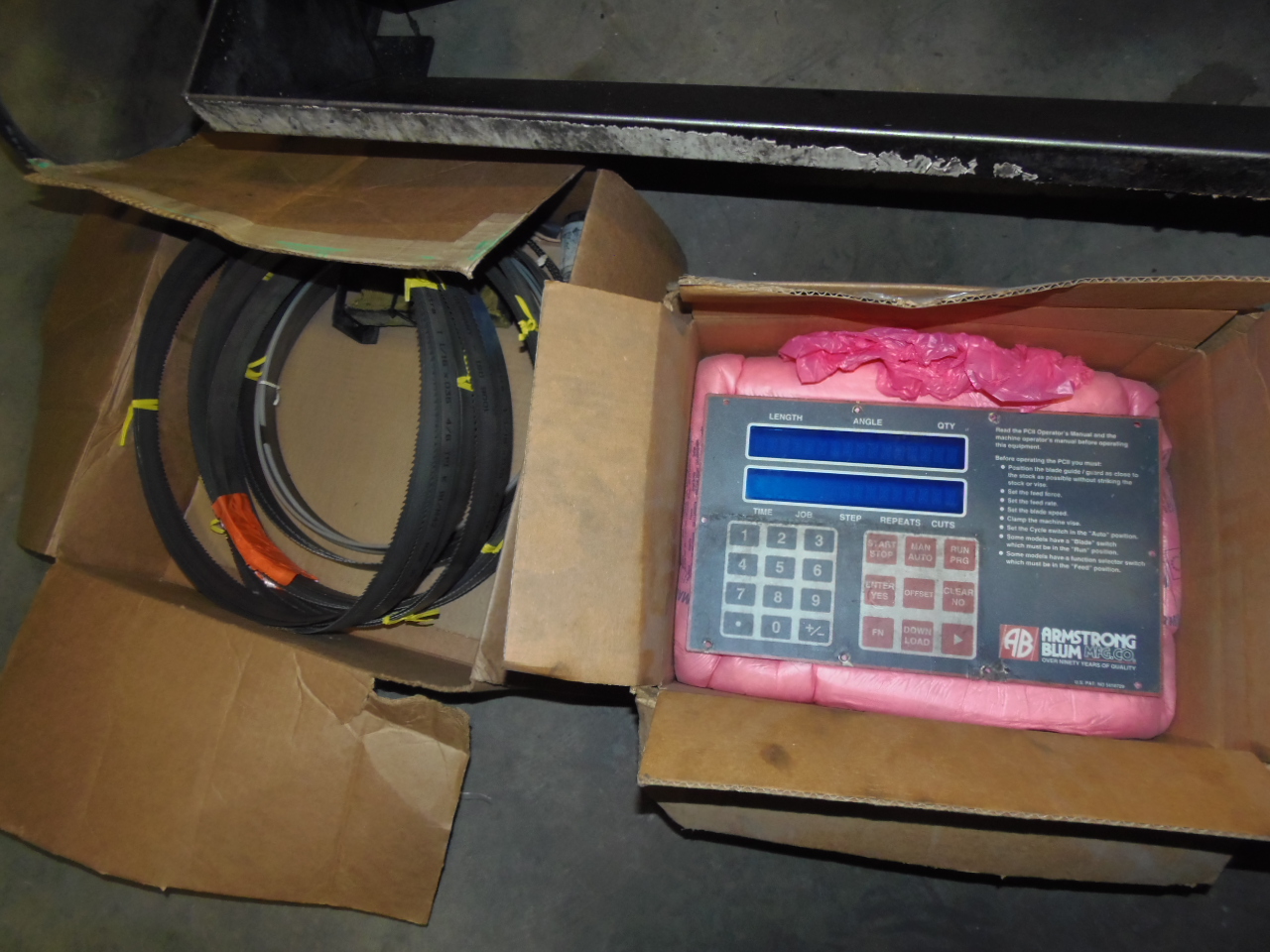

EXTRA BLADES
EXTRA PC CONTROL (CONDITION UNKNOWN)
DISCHARGE TABLE
20' CONVEYOR
SPECIFICATIONS SUBJECT TO VERIFICATION
