Specifications
Equipped With
SPECIFICATIONS:
OVERALL ROLL LENGTH......... 10'
MAX BENDING THICKNESS....... 1 3/4" to 2 1/8"
MAX PREBENDING THICKNESS.... 1 1/2 to 1 3/4"
YIELDING STRENGTH........... 24 Kg/MM2
NUMBER OF ROLLS............. 4
TOP ROLL DIAMETER........... 21.65"
LOWER ROLL DIAMETER......... 21.65"
LATERAL ROLL DIAMETER....... 17.71"
MIN. FERRULE DIAMETER....... 48"
MAX. FERRULE DIAMETER....... 10'2"
CAPACITY AT MIN. FERRULE DIA 1.5"
CAPACITY AT MAX. FERRULE DIA 2.125"
ROLL ROTATION SPEED MT/MM... 1 / 4
LATERAL ROLLS UPSTROKE......
SPEED MM/MIN:............. 200-300
LATERAL ROLLS MIN. INTERAXE MM 816
LATERAL ROLLS MAX. INTERAXE MM 1235
CENTRAL LOWER ROLL STROKE..... 125
GAB BETWEEN TOP AND LOWER ROLL 125
TWISTING MOMENT............. 14000 Kgm
HYDRAULIC SYSTEM MOTOR...... 75+15 HP
HYDRAULIC TANK CAPACITY..... 500 Lt.
OVERALL DIMENSIONS.......... 114" x 275" x 108" H
( 2920x7000x2750)
WEIGHT OF MACHINE........... 101,500 Lbs.
( 46000 Kg )
EQUIPPED WITH:

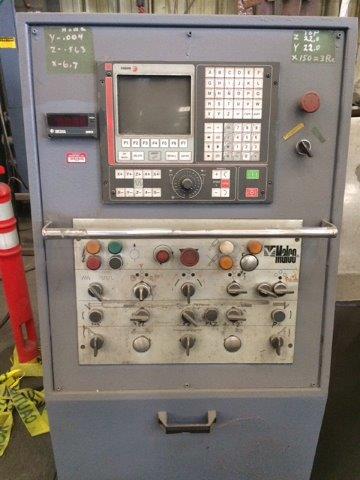

Fagor CNC Control

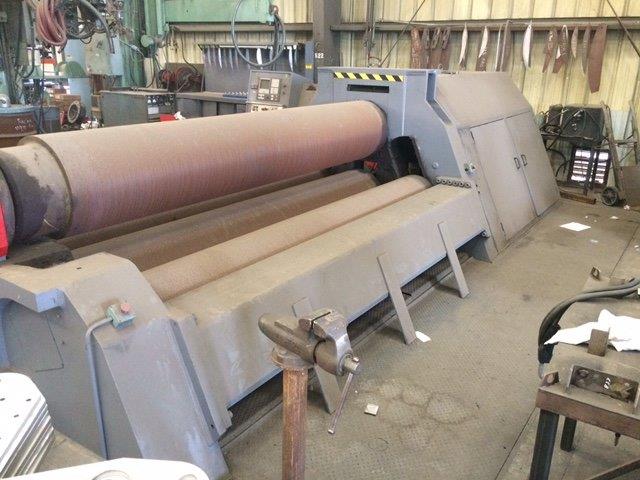

4 Rolls
California
