GENERAL SPECIFICATIONS
MAKE......................... SEOAM
MODEL........................ CAH-10
SERIAL NUMBER................ B665
DIAMETER..................... 10"
SPINDLE MOUNT................ A2-8
THRU HOLE DIAMETER........... 2" (52 MM)
JAW STROKE................... 1/3" (7.6 MM)
PLUNGER STROKE............... 3/4" (18 MM)
GRIPPING MAX................. 8 1/4" (210 MM)
GRIPPING MIN................. 1/2" (11 MM)
MAX PERMISSIBLE INPUT FORCE.. 40 KN
MAX PERMISSIBLE SPEED........ 4200 RPM
WEIGHT W/ SOFT JAWS.......... 75 LBS (34.5 KG)

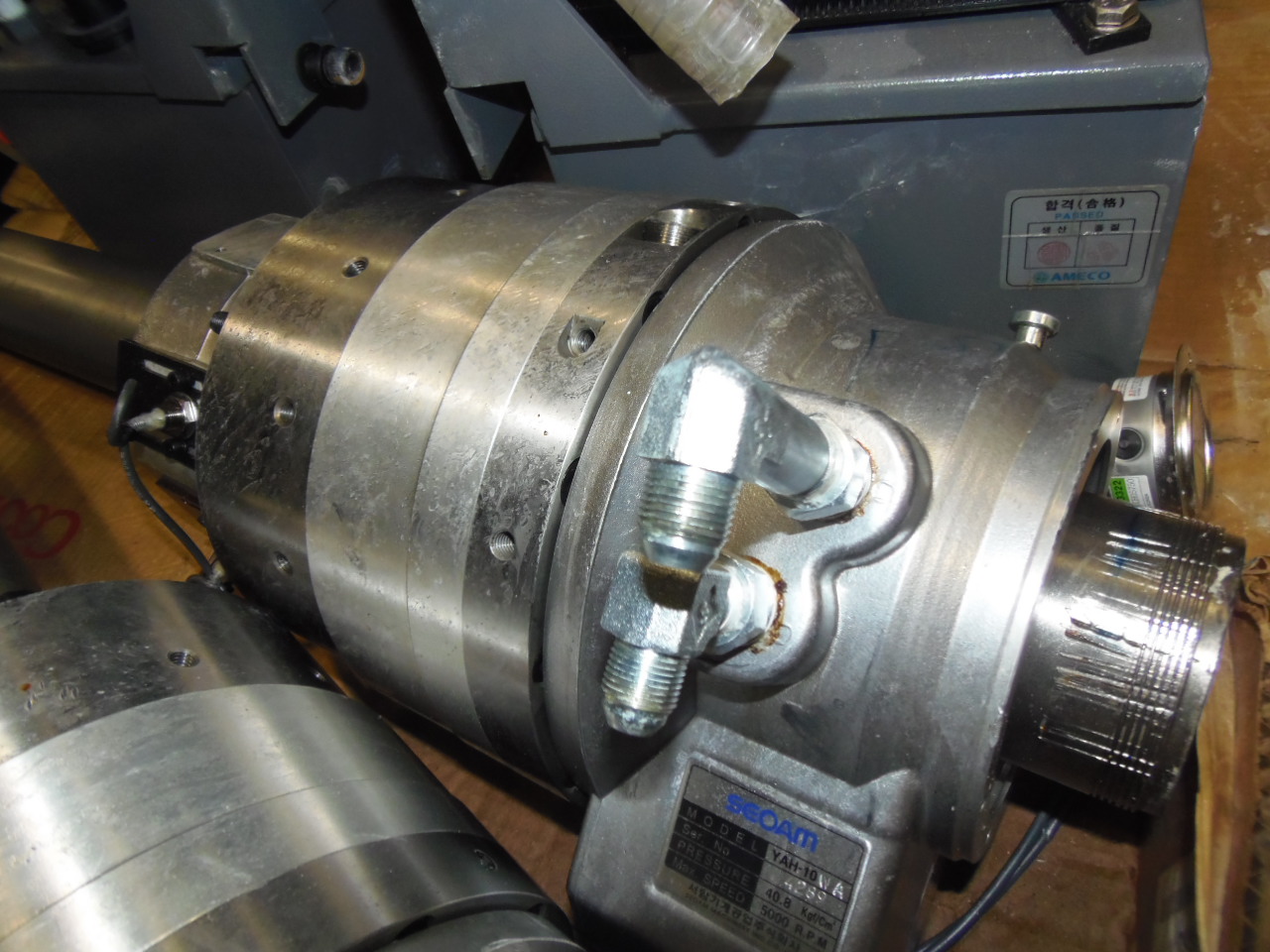

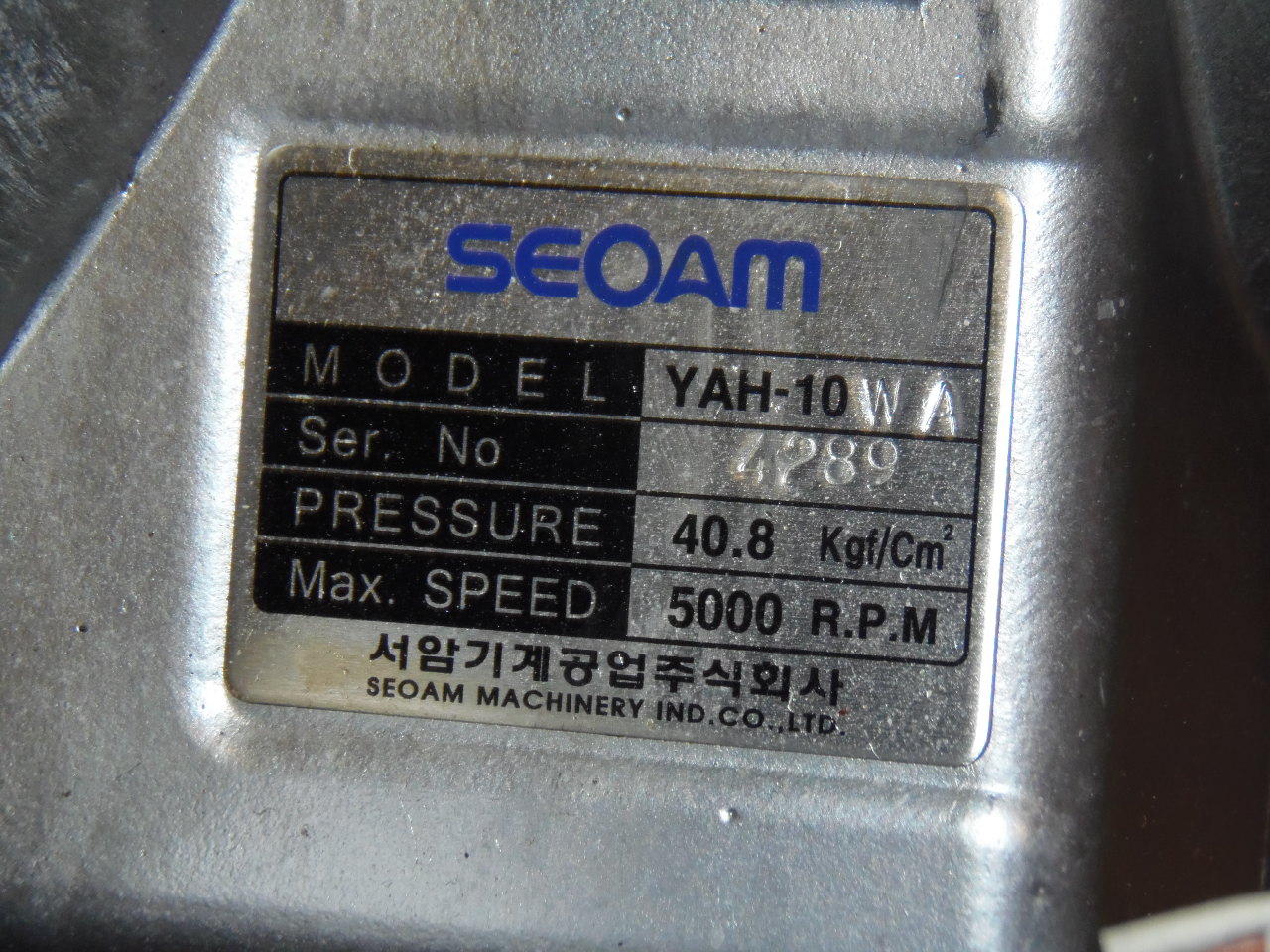

HYDRAULIC ROTATIONAL CYLINDER:
MAKE......................... SEOAM
MODEL........................ YAH-10WA
SERIAL NUMBER................ 4289
PRESSURE..................... 40.8 KGF/CM2
MAX SPEED.................... 5000 RPM
EQUIPPED WITH:
SOFT JAWS
DRAW TUBE 3" OD (2 5/8" ID)
UNUSED - CAME OFF A KIA 60-G CNC LATHE
SPECIFICATIONS SUBJECT TO VERIFICATION
