GENERAL SPECIFICATIONS:

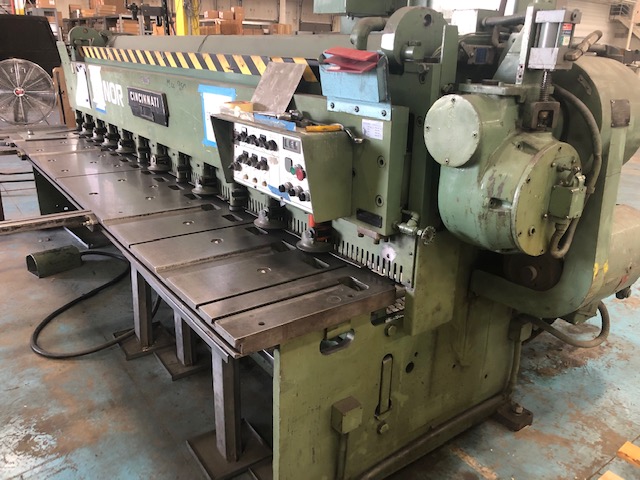

MANUFACTURER.................. CINCINNATI
MODEL......................... 1012
SERIAL........................ #33K33
NEW (APPROX.)................. 1974
CUTTING CAP. (MILD STEEL)..... 12' x 10 GAUGE
APP. OVERALL LENGTH OF KNIVES. 12' 6"
GAP DEPTH, THROAT............. 18"
STROKES PER MINUTES........... 60
FLYWHEEL SPEED................ 1200 RPM
RAKE ANGLE.................... 1/4"/FOOT
DISTANCE FLOOR TOP OF BED..... 32"
DISTANCE UNDER HOLD DOWNS..... 9/16"
HOLD DOWNS TO KNIFE EDGE...... 5/8"
RAM ADJUSTMENT................ 11/16"
MOTOR......................... 7.5 HP/3/60
WEIGHT (APPROX.).............. 17,500 LBS
DIMENSIONS (APPROX.).......... 184"LR x 88"FB x 76"H
EQUIPPED WITH:

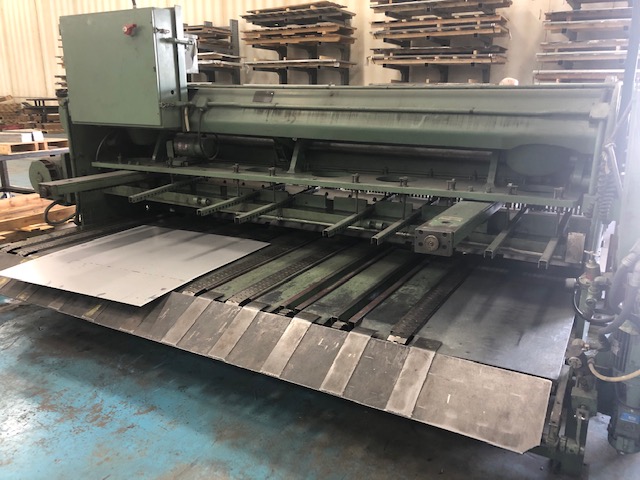

CONVEYOR STACKER
36" FRONT OPERATED BACK GAUGE
9 38" MAGNETIC SHEET SUPPORTS
FOOT SWITCH OPERATION
SQUARING ARM
13 HYD. HOLD DOWNS/RAM COUNTER BALANCES
2 SHEET SUPPORTS
