Specifications
Equipped With
GENERAL SPECIFICATIONS:

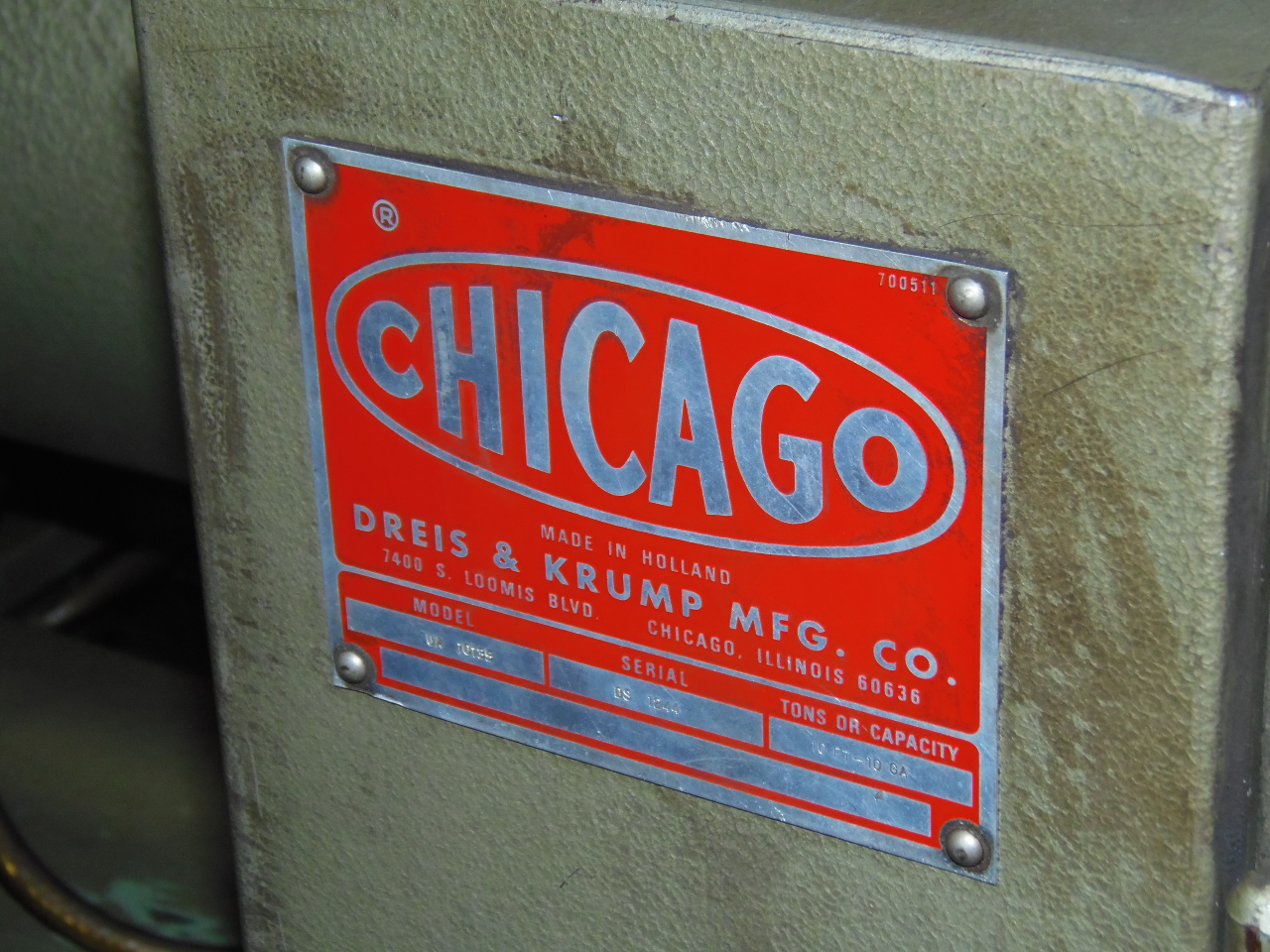

MAKE.............................. DREIS & KRUMP
MODEL............................. US-10135
SERIAL NUMBER..................... DS1244
OPERATION......................... HYDRAULIC
RATED CAPACITY.................... 10 GA. X 10' MILD STEEL
BLADE LENGTH...................... 122.8"
NUMBER OF HOLDDOWNS............... 18
FRONT OPERATED BACK GAUGE RANGE... 36"
SPEED 1" STROKE................... 32 TO 57 SPM
SPEED 2" STROKE................... 80 TO 95 SPM

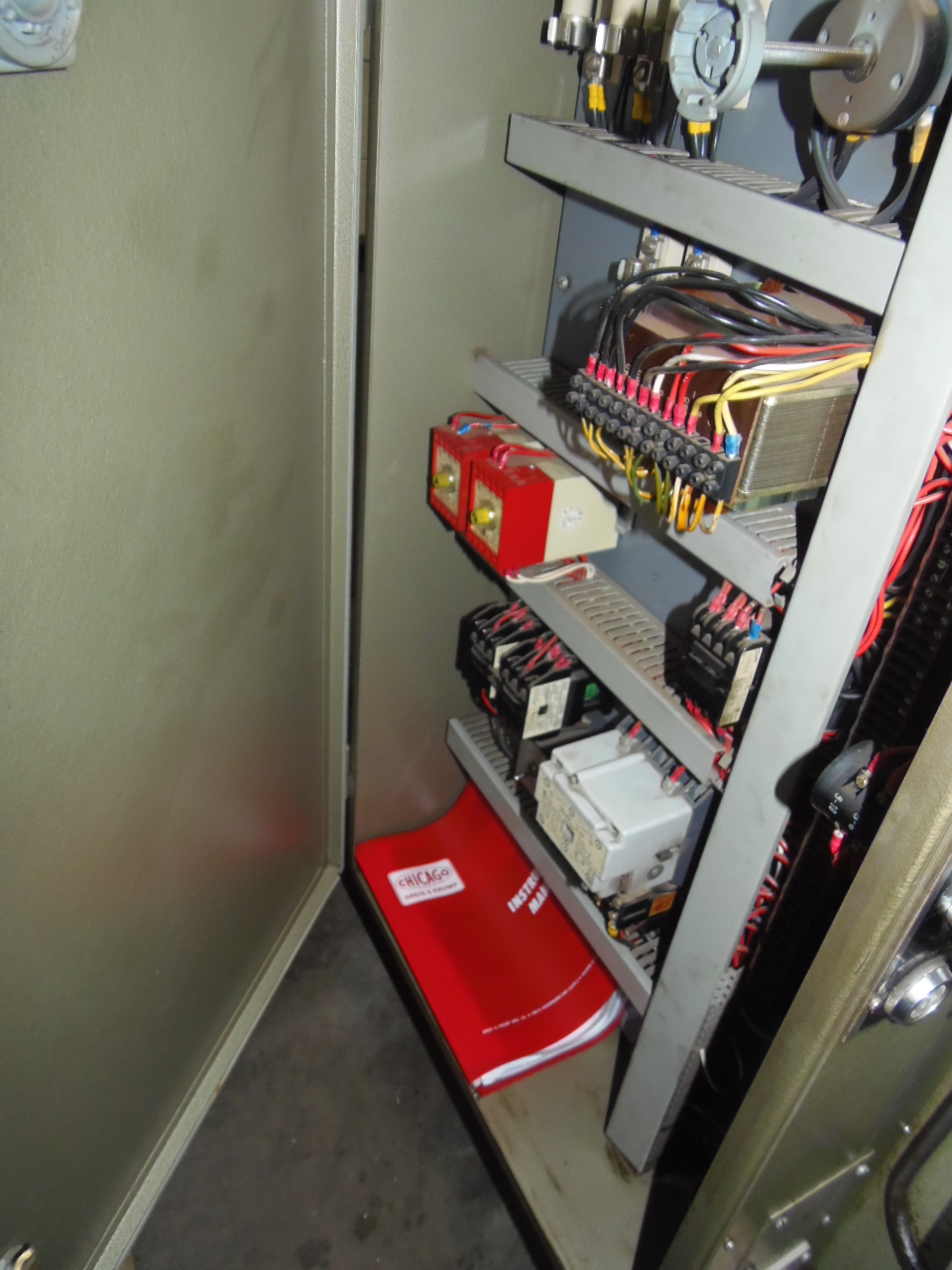

ELECTRICS......................... 220V / 3 PH
HORSEPOWER........................ 7.5 HP
MACHINE WEIGHT.................... 15,000 LBS
EQUIPPED WITH:
10' SQUARING ARM
2-24" SUPPORT ARMS
FOOT PEDAL

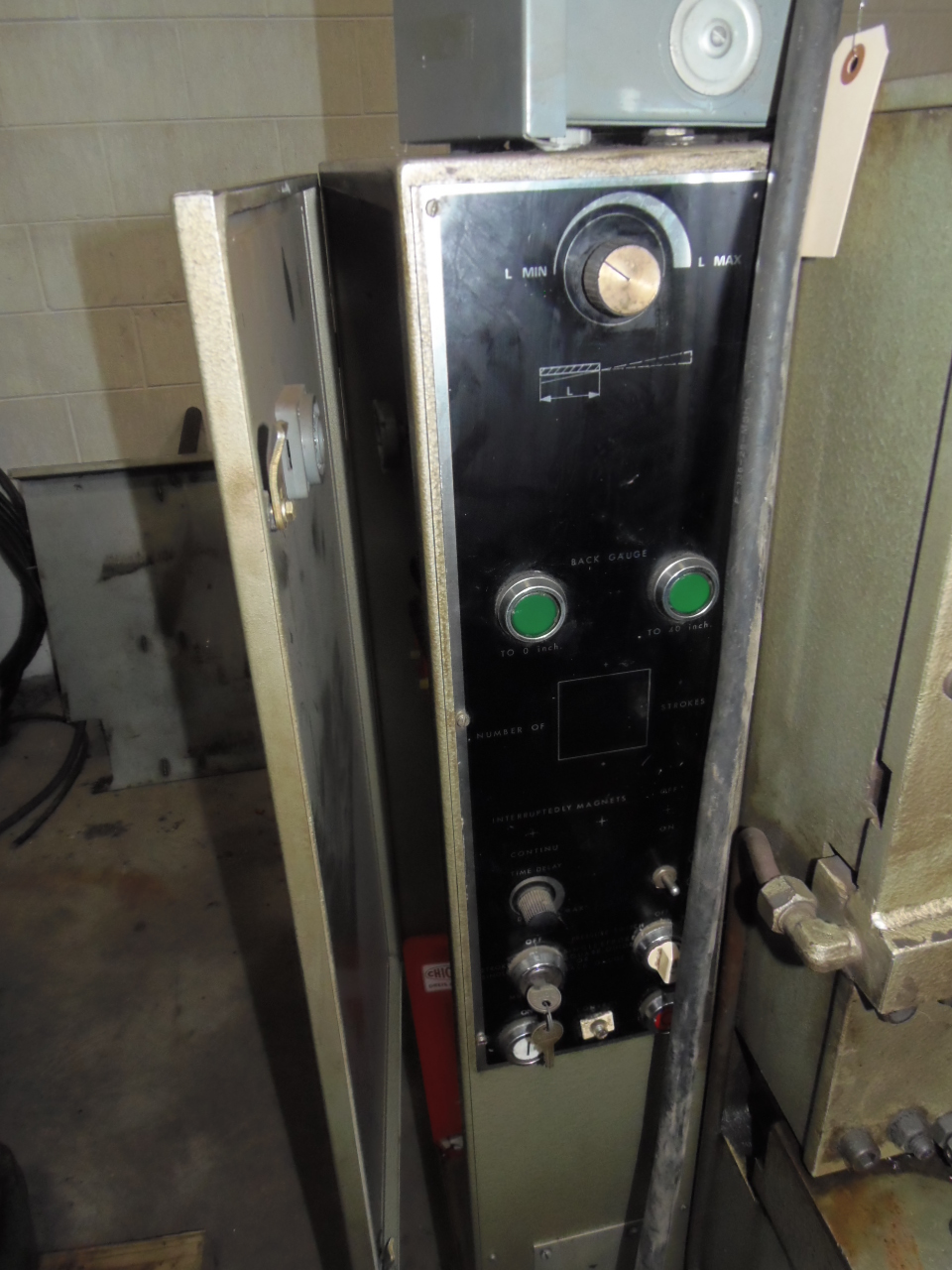

36" FRONT OPERATED POWER BACK GAUGE
1/8" T0 5/16" ADJUSTABLE RAKE
4 EDGE BLADE
REAR EXIT RAMP
FLUSH FLOOR MOUNT
SPECIFICATIONS SUBJECT TO VERIFICATION
