GENERAL SPECIFICATIONS:
MAKE....................... FMB
MODEL...................... JUPITER
SERIAL NUMBER.............. 40715
AGE (YEAR)................. 1994
CAPACITY
ROUND
0 DEG............. 9.44"
45 DEG............ 7.87"
SQUARE
0 DEG............. 9.44" X 9.44"
45 DEG............ 7.87" X 7.87"

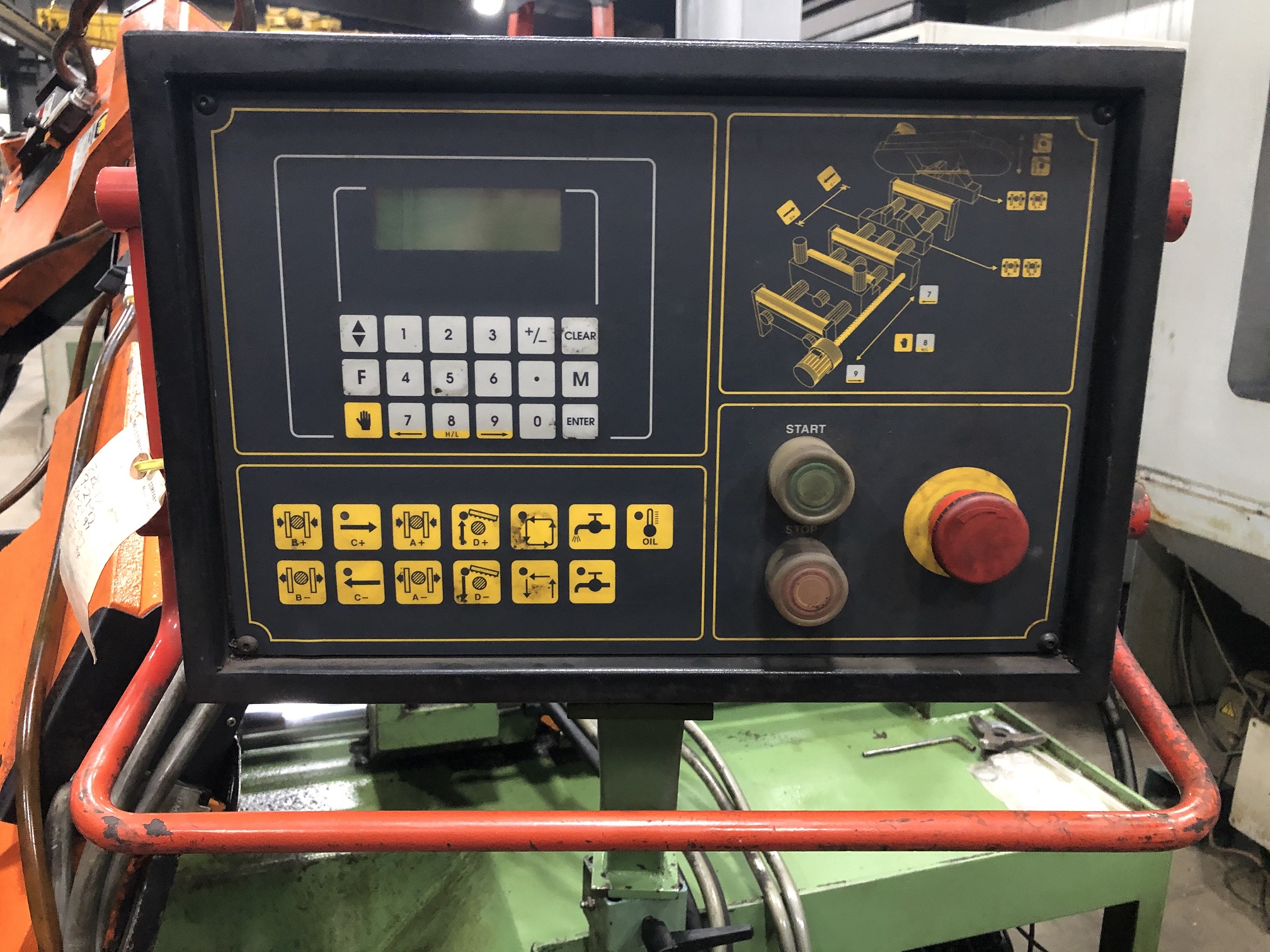

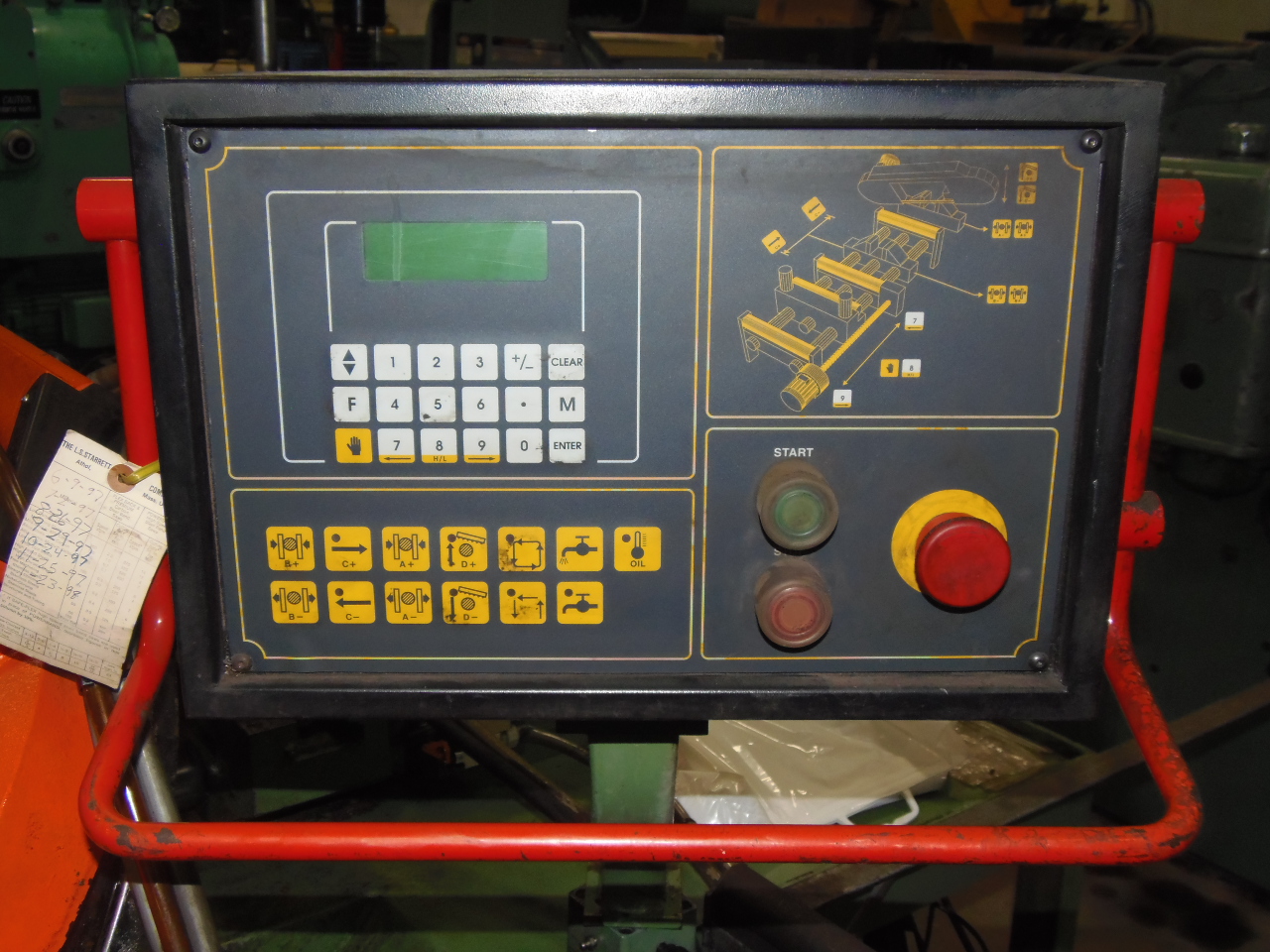

CONTROL MODEL.............. PQL 02.01

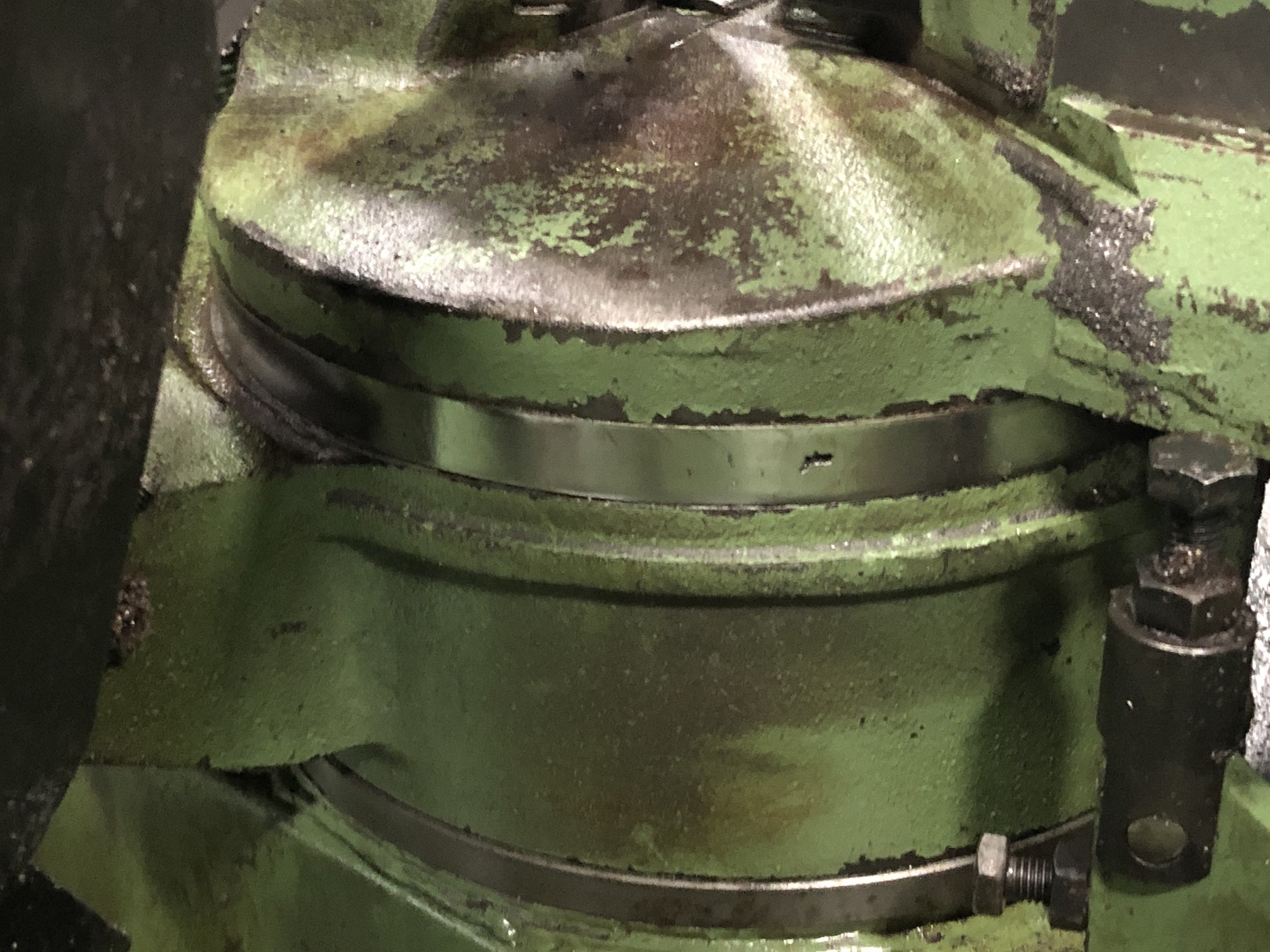

SAW HEAD SWIVEL............ 0 - 45 DEGREES
MAX AUTO FEED LENGTH....... 23.6"
NUMBER OF MULTIPLE STROKES. 4
BLADE LENGTH............... 10'5"
BLADE WIDTH................ 1"
BLADE THICKNESS............ .035"
BLADE SPEED (60 HZ)........ 52 - 396 FT/MIN INF. VARY
VOLTAGE.................... WIRED FOR 220
DIMENSIONS................. 83" X 60" X 60" TALL
WEIGHT..................... 2530 LBS
EQUIPPED WITH:
CONTROL SET UP FOR 99 CUTTING JOBS

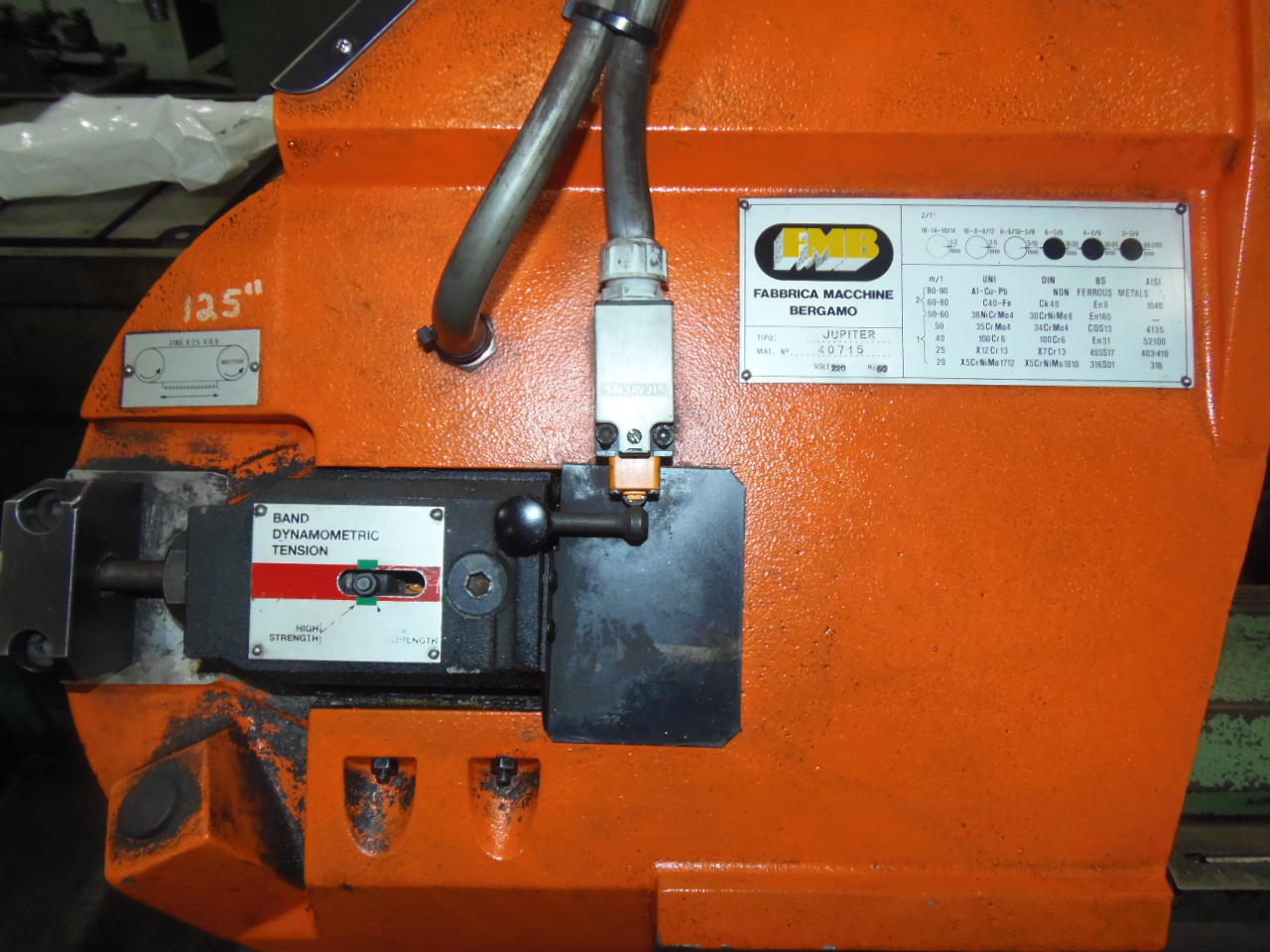

MECHANICAL BAND TENSION WITH BUILT IN INDICATOR

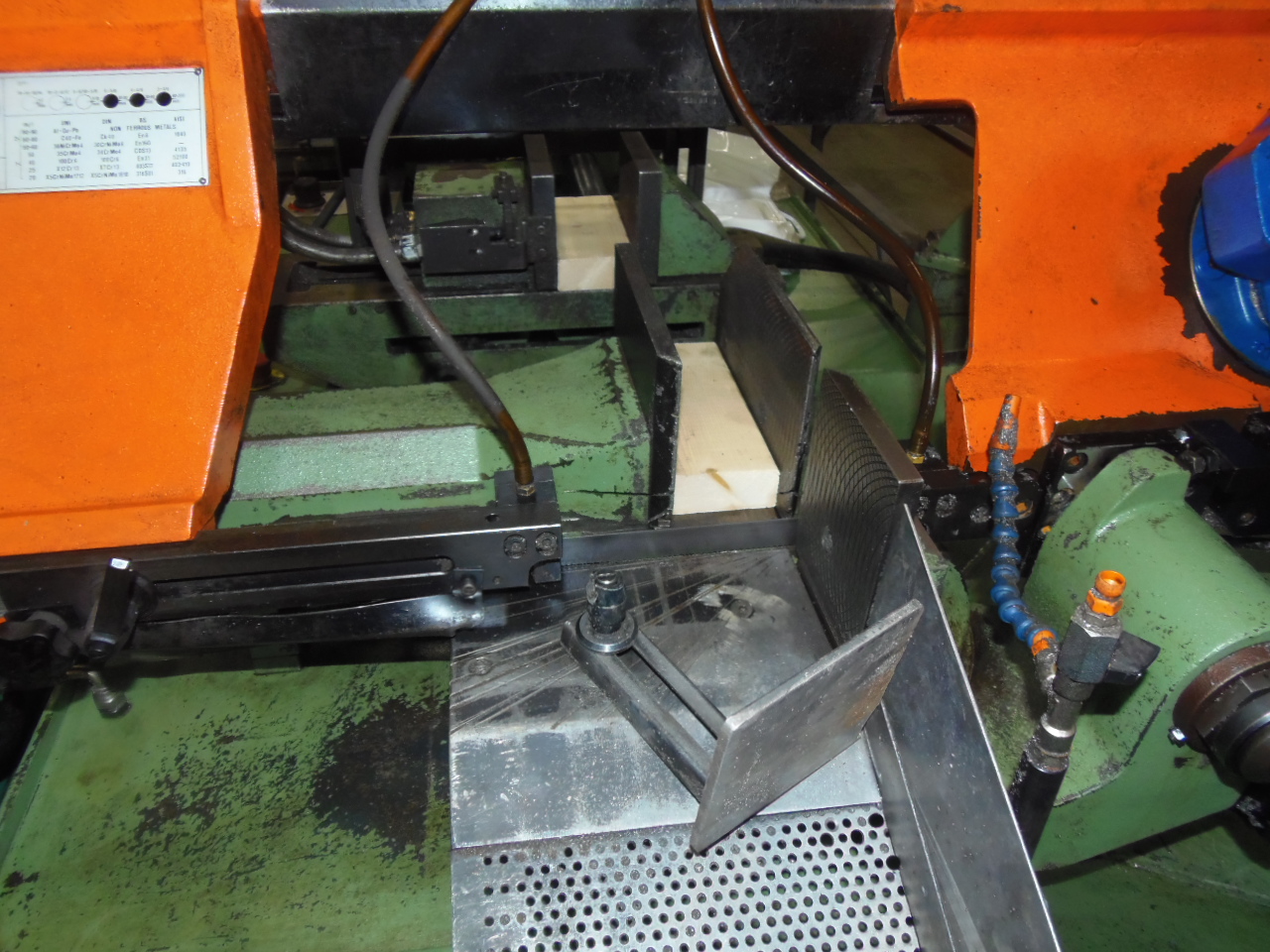

HYDRAULIC CLAMPING SLIT FRONT VISE CLAMPS ON BOTH SIDES OF BLADE
SAW BLADE RETURN HEIGHT CONTROL
BLADE BREAKAGE SWITCH TO SHUT MACHINE OFF

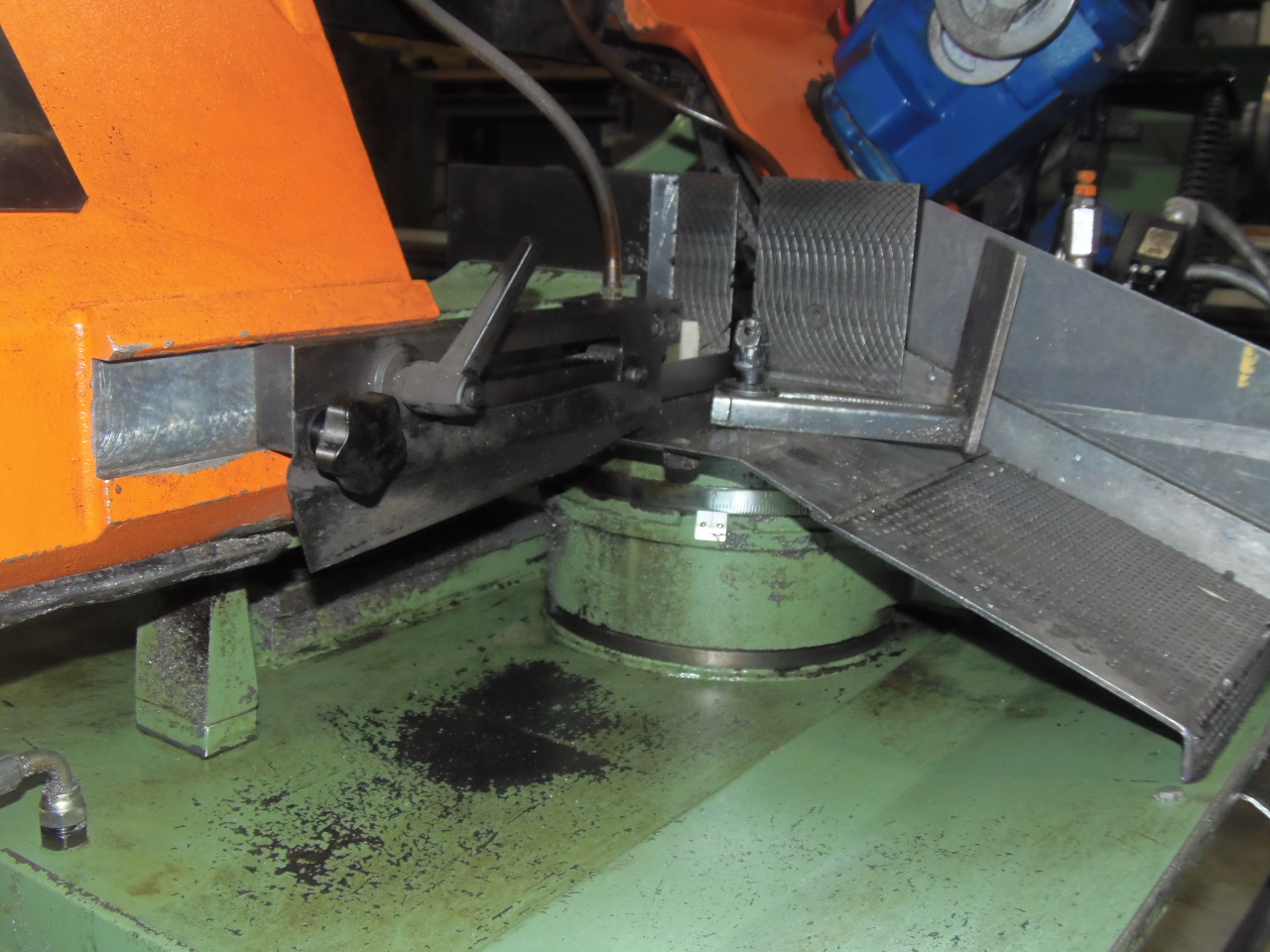

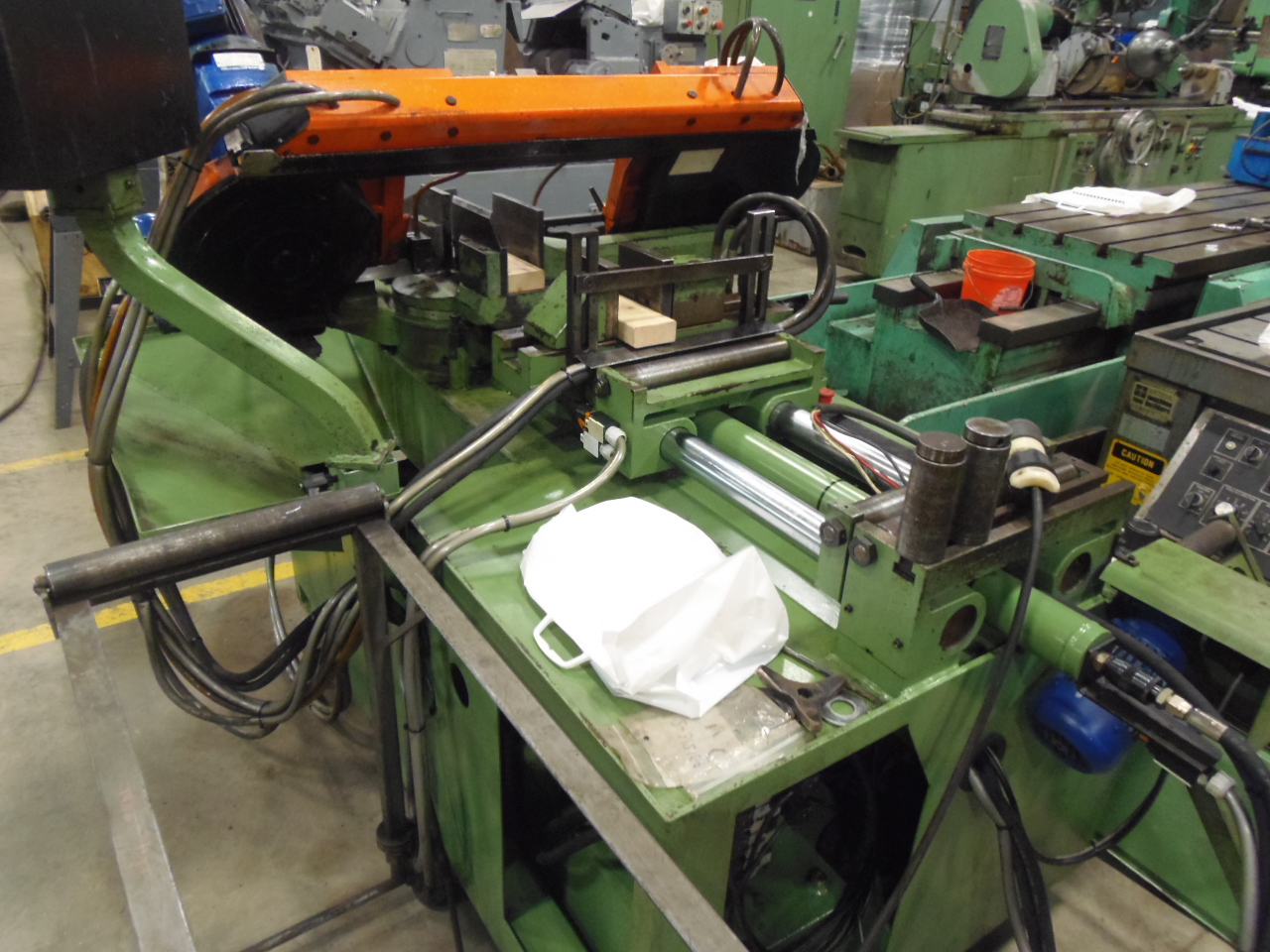

SELF CENTERING FEED VISE FOR CROOKED OR BENT MATERIAL
MISC MANUALS
