Specifications
Equipped With
GENERAL SPECIFICATIONS:

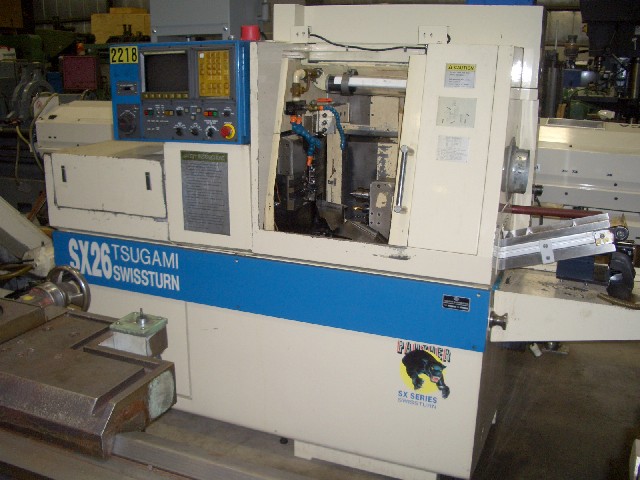

MANUFACTURER TSUGAMI
MODEL BS26B
YEAR 1997
SERIAL NUMBER 164
CAPACITY 1" (26MM)
MAX WORKPIECE LENGTH 8.25 (210MM)

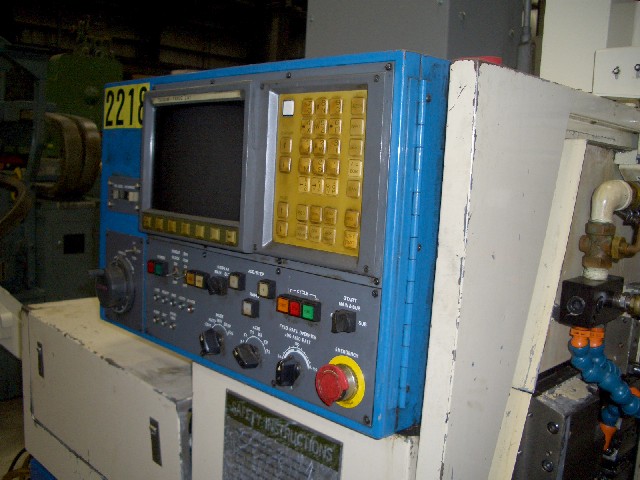

CONTROL FANUC LA-1
MAIN SPINDLE INDEXING (C AXIS) 5 DEGREES
MAX RPM OF MAIN SPINDLE 6300
MAX SPEED OF REAR SPINDLE 6000/4000 TO BE CONFIRMED

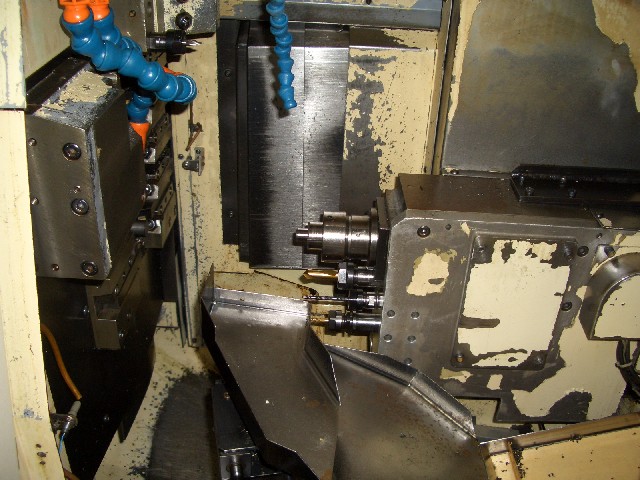

TOTAL NUMBER OF TOOLS 17
OUTER DIAMETER TOOLS 7 FIXED, 3 ROTARY
FRONT SIDE TOOLS 4 FIXED, 2 ROTARY
REAR SIDE TOOLS 3 FIXED
# OF CONTROLLED AXIS 6
EQUIPPED WITH:

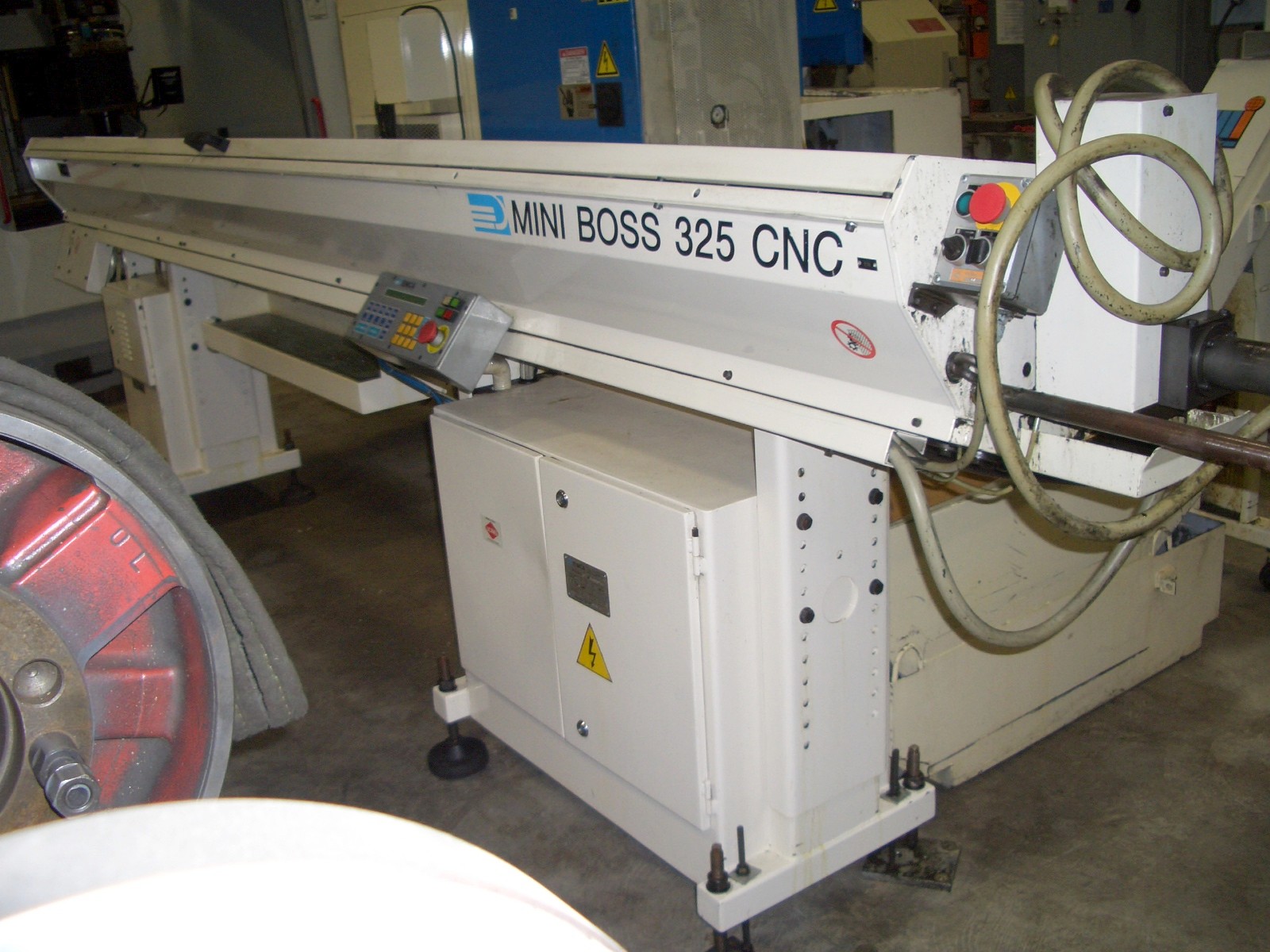

IEMCA MINI BOSS 325 BARFEED
RIGID TAPPING
SUB-SPINDLE INDEXING

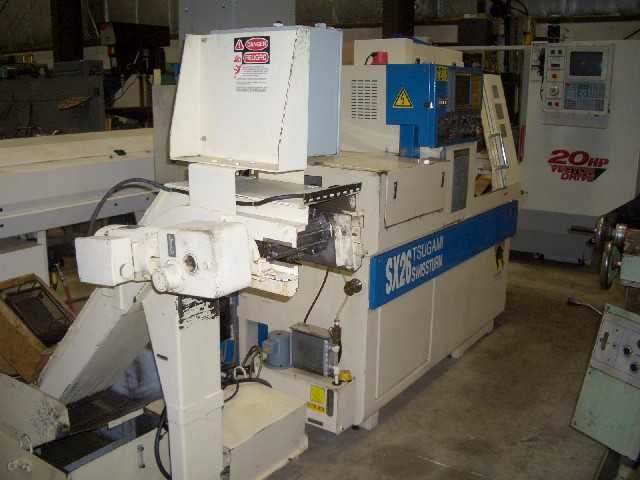

CHIP CONVEYOR
EXIT CONVEYOR
MISC. MANUALS & TOOLING
