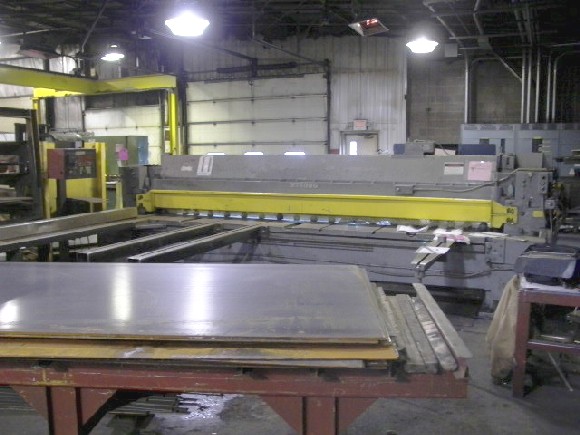

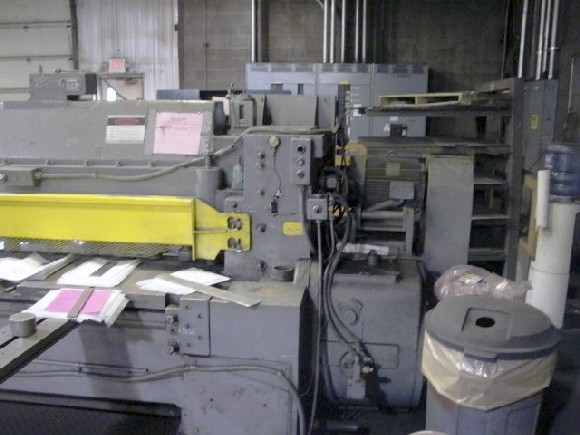

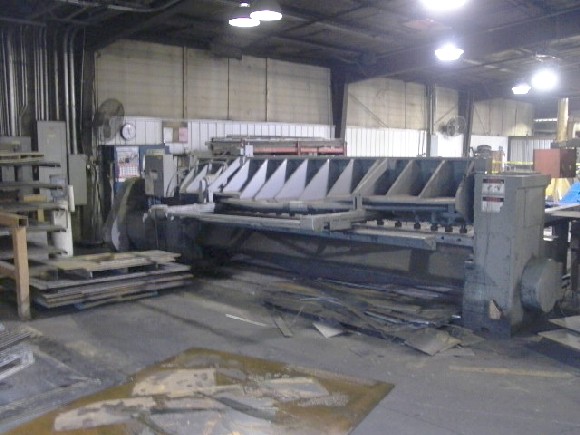

1/4" x 14' WYSONG #1425, MECH., 36" FOPBG, 3 SUPPORT ARMS, SQ. ARM, 1973

GENERAL SPECIFICATIONS:
MANUFACTURER WYSONG
MODEL 1425
SERIAL # P73-107
NEW (APPROX.) 1973
TYPE MECHANICAL
CAPACITY (MILD STEEL) 1/4"
CAPACITY (STAINLESS) 7 GA.
CUTTING LENGTH 14'
RAKE OF UPPER BLADE 1/4"
# OF HOLDDOWN FEET 20
HOLDDOWN FEET CENTERS 7"-9"
BACK GAUGE RANGE 36"
MOTOR 15 HP
STROKES PER MINUTE 50
DIMENSIONS (APPROX.) 127" x 266" x 72"H
WEIGHT (APPROX.) 40,000 LBS

EQUIPPED WITH:
3 SUPPORT ARMS
SQUARING ARM
36" FRONT OPERATED POWER BACK GAUGE
