Specifications
Equipped With
GENERAL SPECIFICATIONS:

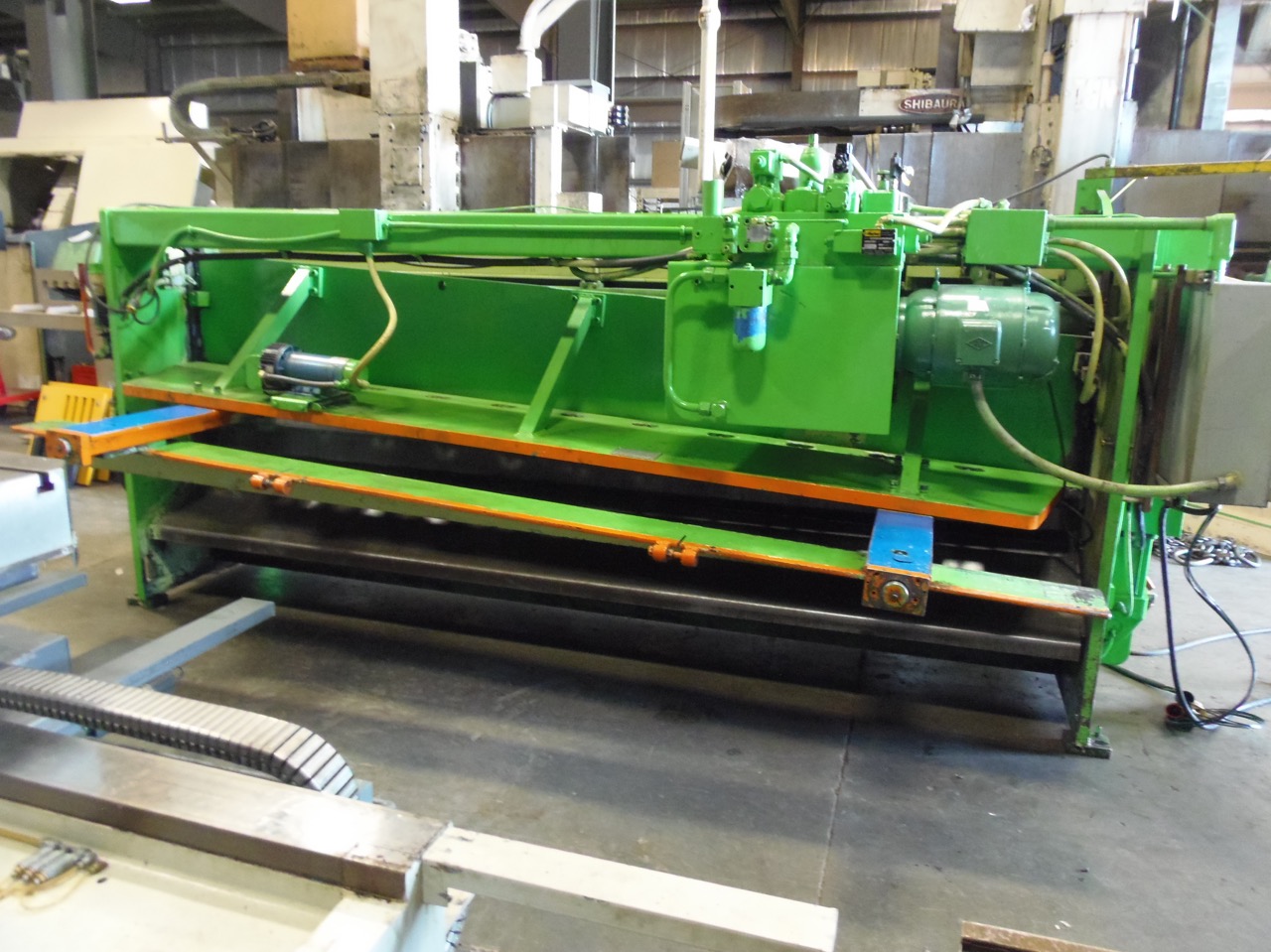

MAKE......................... CINCINNATI
MODEL........................ 2H-12
SERIAL NUMBER................ 2C134
AGE (YEAR)................... 1978
RATED CAPACITY (THICKNESS)
MILD STEEL (60,000 PSI)... 1/4"
STAINLESS (90,000 PSI).... 3/16"
ALUMINUM (30,000 PSI)..... 3/8"
LENGTH....................... 12'
STROKES PER MINUTE
FULL LENGTH CUTS.......... 16
24" CUTS.................. 32
BACKGAUGE RANGE.............. 36"
MOTOR........................ 15 HP
WEIGHT....................... 17000 LBS.
SHIPPING DIMENSIONS.......... 180" X 78" X 78" H
ELECTRICS.................... 460/230 V - 3PH - 60HZ
EQUIPPED WITH:
SINGLE, CONTINUOUS OPERATION

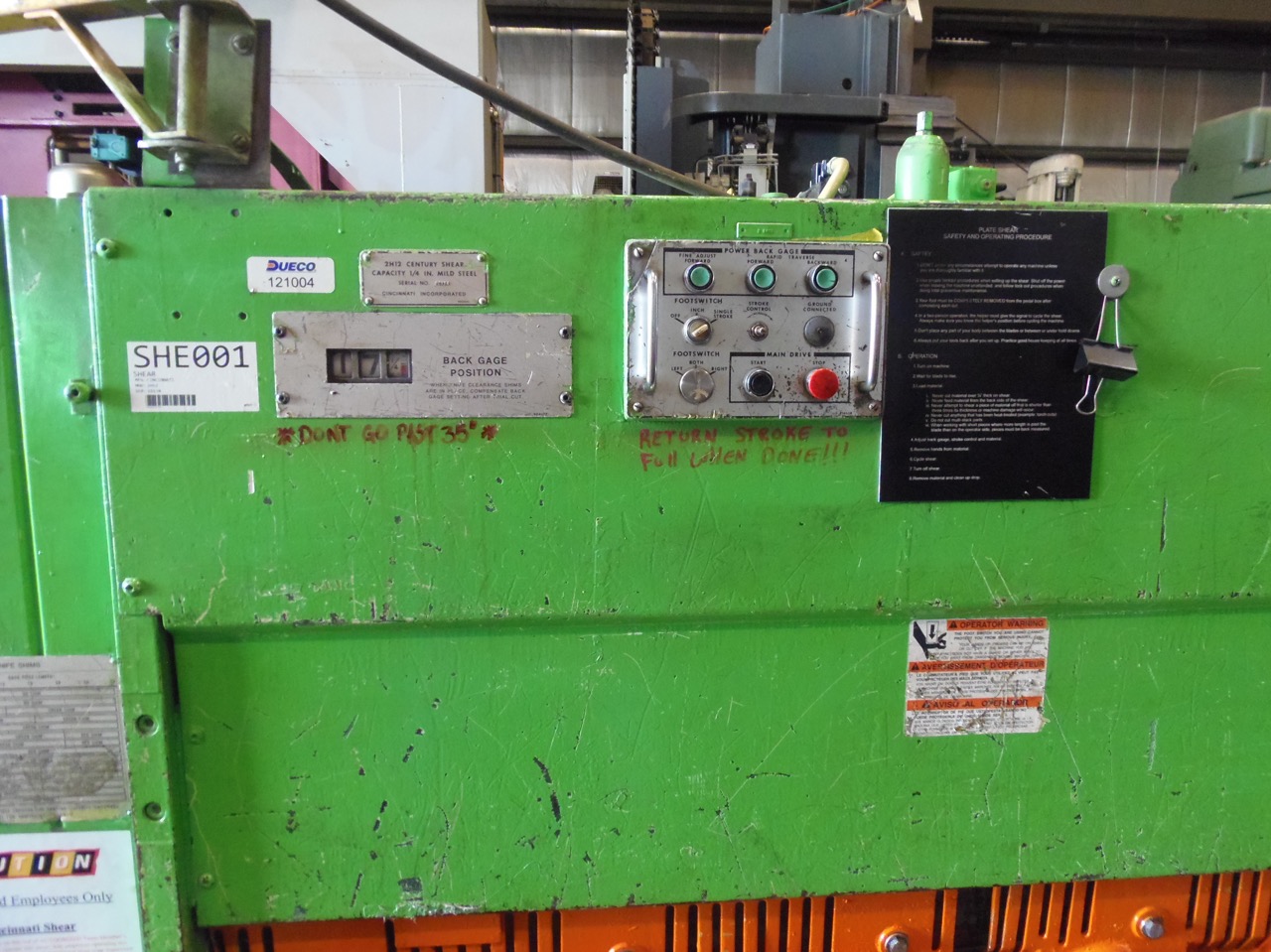

36" POWER BACK GAUGE WITH DIGITAL READOUT
ADJUSTABLE STROKE LENGTH
LIGHT BEAM SHEARING GAGE

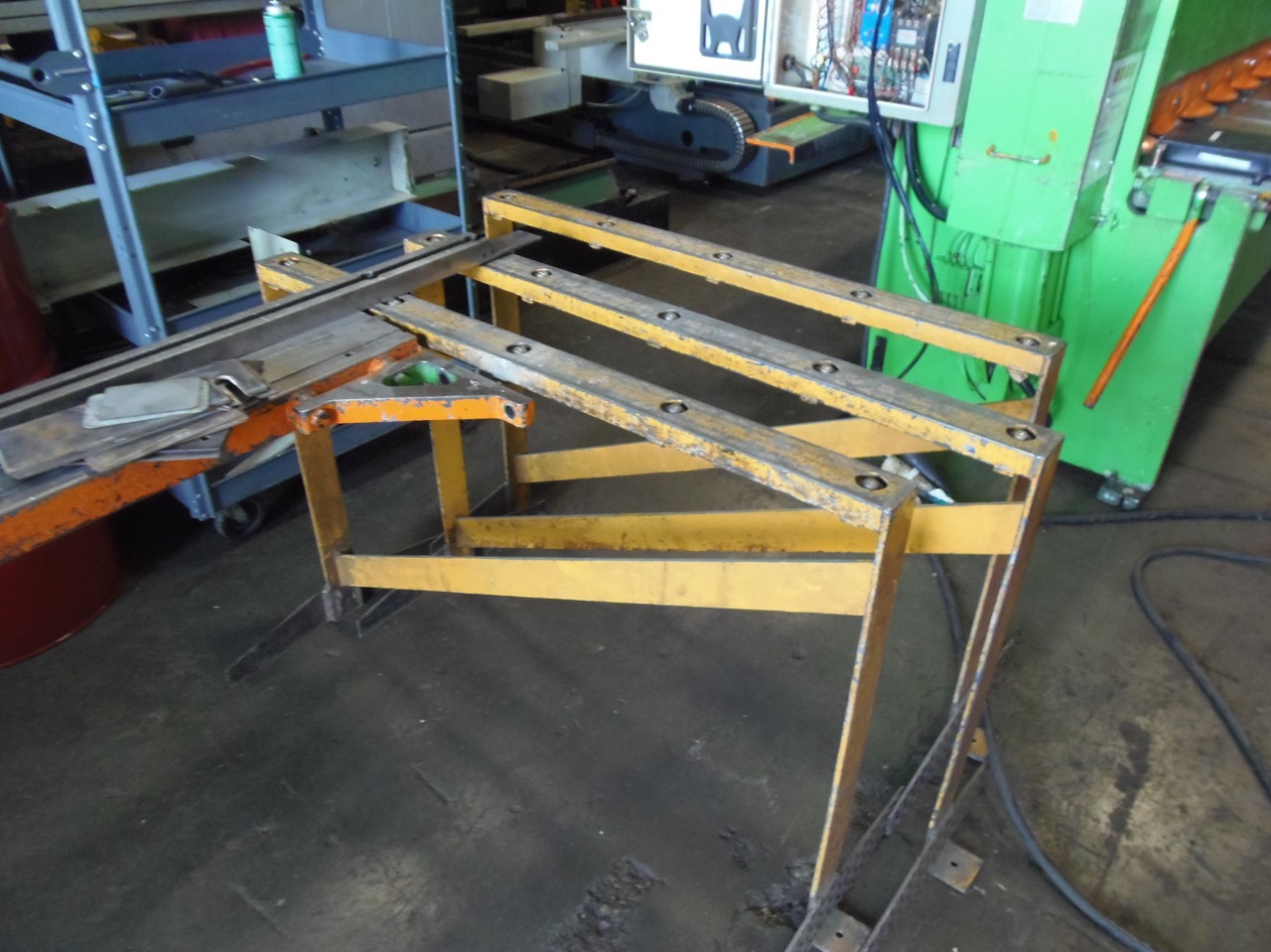

3 FRONT SUPPORT ARMS WITH ROLLERS BUILT IN
10' SQUARING ARM
DOVETAIL SLOTS IN SHEAR TABLE
HYDRAULIC HOLD DOWNS
FOOT PEDAL
SPECIFICATIONS SUBJECT TO VERIFICATION
