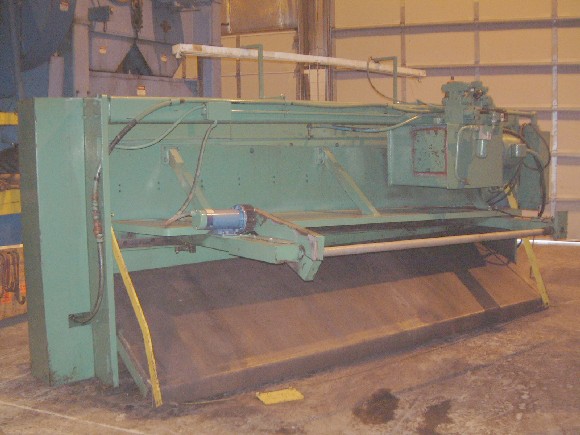

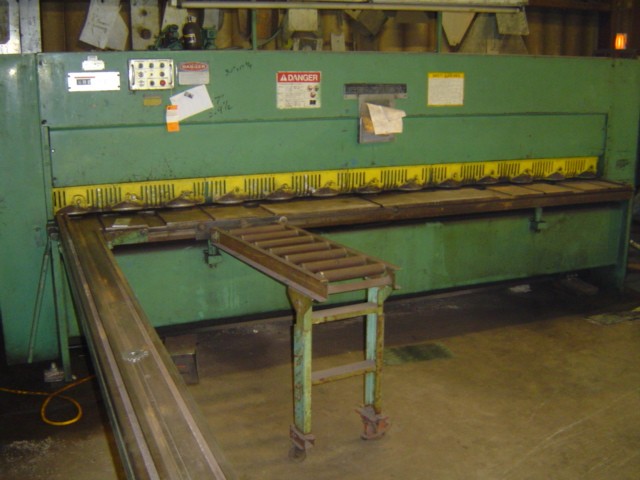

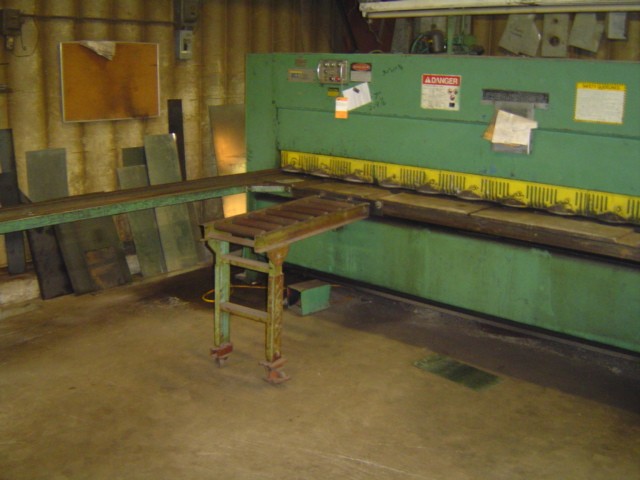

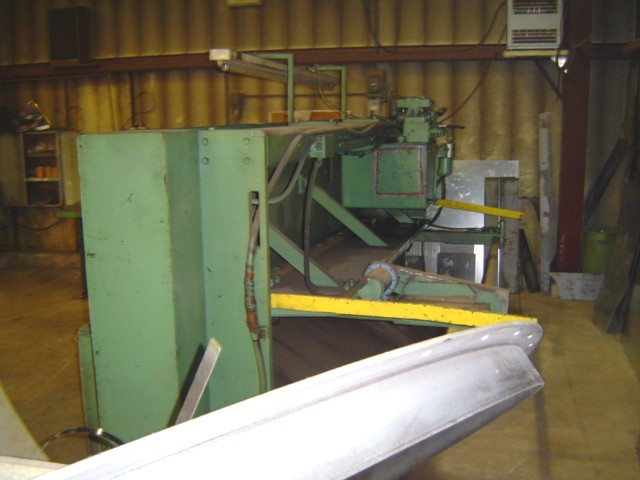

1/4" x 12' CINCINNATI CENTURY 2H12, 15 HP, 9' SQ. ARM, 3/8" RAKE ANGLE, 1" x 3" KNIFE CROSS SECTION

GENERAL SPECIFICATIONS:
MANUFACTURER CINCINNATI CENTURY
MODEL 2H12
SERIAL # 20055
MILD STEEL CAPACITY 1/4"
STAINLESS STEEL CAPACITY 3/16"
ALUMINUM CAPACITY 3/8"
MAXIMUM CUT LENGTH 144"
KNIFE CROSS SECTION 1" x 3"
RAKE ANGLE 3/8"
STROKES PER MIN. FULL LENGTH CUTS 14
STROKES PER MINUTE 24" CUTS 14
BACK GAGE RANGE 36"
FRONT GAGING DISTANCE 48"
DISTANCE UNDER GUARDS 1/2"
DIST. FROM HOLDDOWN TO KNIFE EDGE 7/8"
DIST. FROM GUARD TO KNIFE EDGE 2-3/4"
MOTOR 15 HP
ELECTRICS 460V/3PH
WEIGHT (APPROX.) 17,000 LBS

EQUIPPED WITH:
9' SQUARING ARM
POWER BACK GAGE
FRONT SUPPORT ARMS WITH DISAPPEARING STOPS
DOVETAIL SLOTS IN SHEAR TABLE
