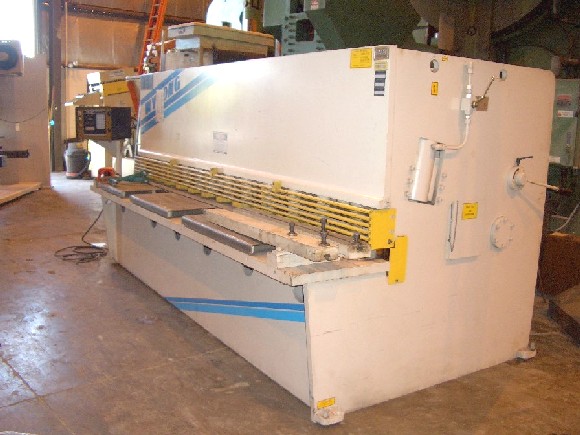

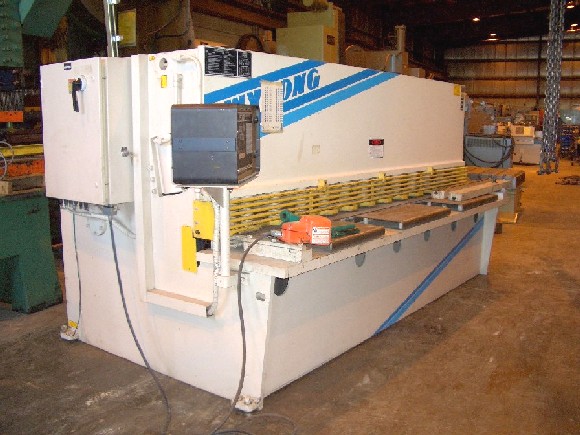

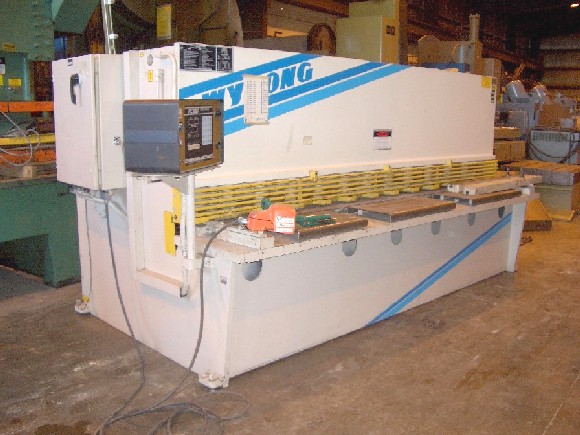

1/4" x 10' WYSONG, MDL H2510, 120" CUTTING LGTH, 21-60 SPM, PC100 CNC BACKGAUGE, 1998

GENERAL SPECIFICTIONS:
MANUFACTURER WYSONG
MODEL H2510
SERIAL # H2-266
NEW (APPROX.) 1998
CAPAICTY (MILD) 1/4"
CAPACITY (STAINLESS) 7 GA.
CUTTING LENGTH 120"
HOLDDOWNS 13
SPEED (DEPENDS ON LGTH OF STROKE) 21 - 60 SPM
DISTANCE BETWEEN HOUSINGS 130"
BACKGAUGE RANGE 36"
HEIGHT TABLE TO FLOOR 32"
MOTOR 20 HP
DIMENSIONS (APPROX.) 162" x 76" x 73"H
WEIGHT (APPROX.) 17,000 LBS.

EQUIPPED WITH:
PC100 CNC BACKGAUGE
SIDE MOUNTED BLADE GAP ADJUSTMENT
(2) FRONT SUPPORT ARMS
PARTS CONVEYOR
