Specifications
Equipped With
GENERAL SPECIFICATIONS:

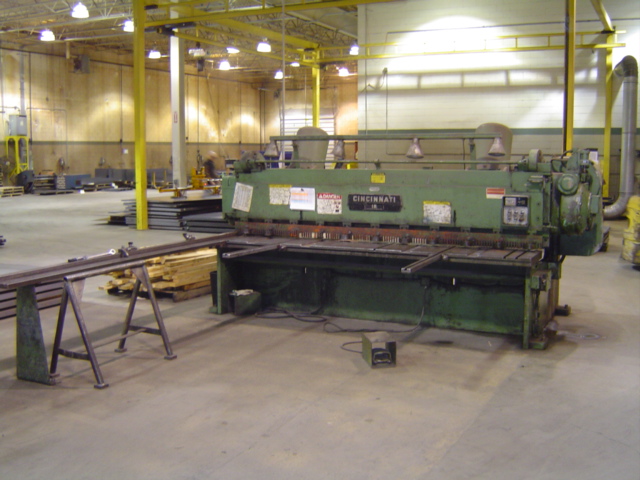

MANUFACTURER CINCINNATI
MODEL 1810
SERIAL # 31K96
NEW (APPROX.) 1973
CUTTING CAP. (MILD STEEL) 10' x 1/4"
LENGTH BETWEEN HOUSINGS 10'-3"
OVERALL LENGTH OF KNIVES 124
GAP DEPTH, THROAT 18"
STROKES PER MINUTES 60
FLYWHEEL SPEED 1200 RPM
RAKE ANGLE 1/4"/FOOT
DISTANCE FLOOR TOP OF BED 32"
DISTANCE UNDER HOLD DOWNS 9/16"
HOLD DOWNS TO KNIFE EDGE 5/8"
RAM ADJUSTMENT 11/16"
MOTOR 7.5 HP/3/60
WEIGHT (APPROX.) 20,000 LBS
DIMENSIONS (APPROX.) 166"LR x 92"FB x 81"H
EQUIPPED WITH:

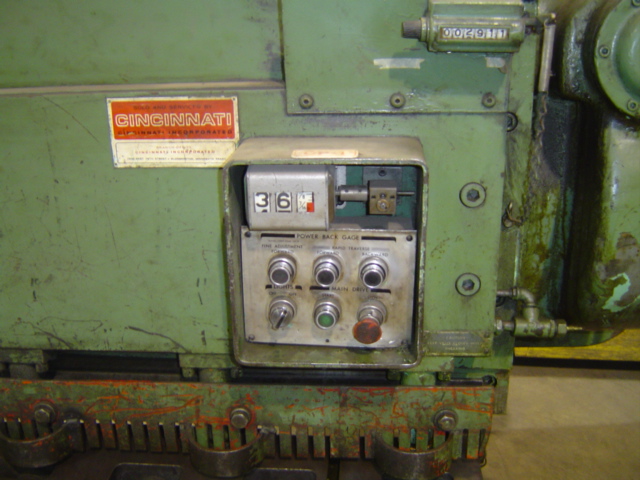

36" FRONT OPERATED BACK GAUGE
DUAL ELECTRIC FOOT SWITCH OPERATION
10' SQUARING ARM
13 HYD. HOLD DOWNS/RAM COUNTER BALANCES
2 SHEET SUPPORTS
