Specifications
Equipped With
GENERAL SPECIFICATIONS:

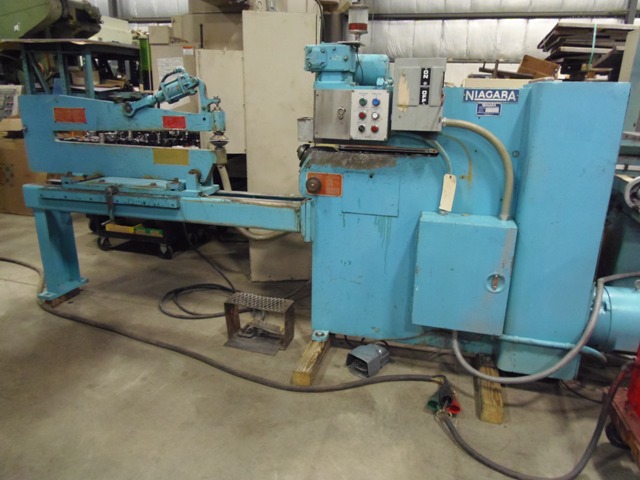

MANUFACTURER.......................... NIAGARA
MODEL................................. 33-RC
SERIAL#............................... 62427
CAPACITY.............................. 1/4"
CIRCLE DIAMETER....................... 6" TO 60"
HEAD THROAT DEPTH..................... 18.5"
TAIL THROAT DEPTH..................... 43"
WORK HEIGHT FROM FLOOR................ 38.5"
SPEED APPROX.......................... 100 RPM
EQUIPPED WITH:

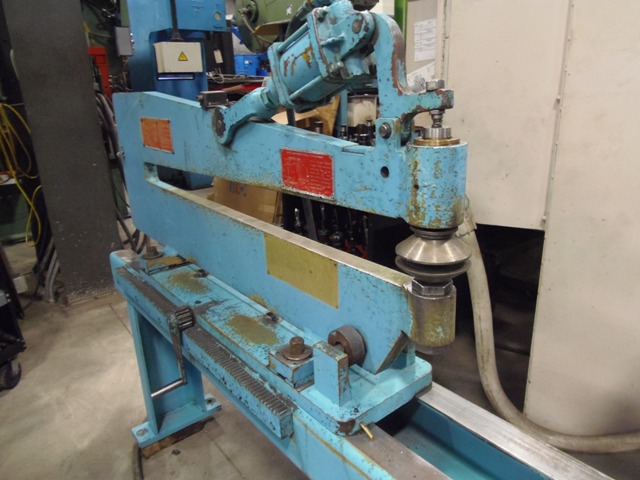

RACK & PINION FEED FOR TAILSTOCK

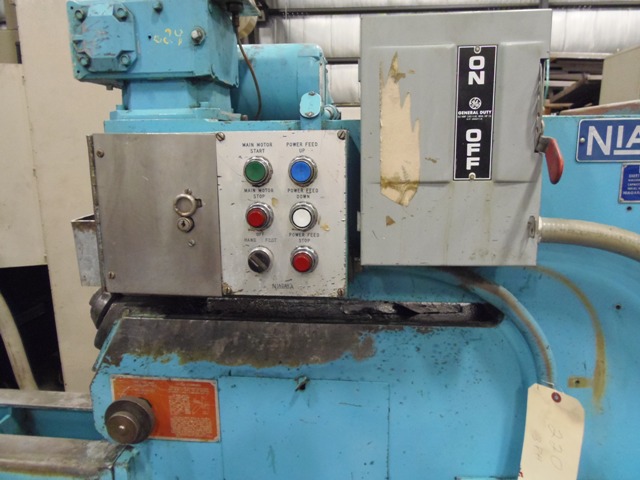

PUSH BUTTON FOR START AND STOP
HAND WHEEL FOR RAISING AND LOWERING UPPER CUTTER
3 HP MOTOR
WEIGHT APPROX 1700 LBS
OVERALL DIMENSIONS 24"L-R X 110"F-B X 55"H
SPECIFICATIONS SUBJECT TO VERIFICATION
