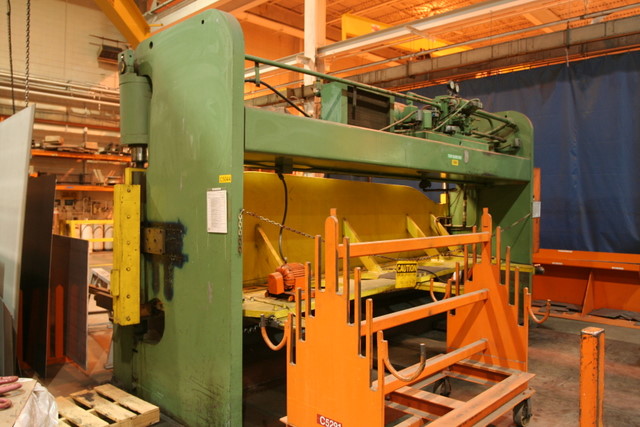

MODEL 4FL16
SERIAL #37746
SPECIFICATIONS:
NEW APPROXIMATELY 1970
CAPACITY IN MILD STEEL:
AT NOMINAL RAKE OF 3/8" 1/2" X 16'
AT INCREASED RAKE OF 1/2" 5/8" X 16'
AT INCREASED RAKE OF 11/16" 3/4" X 14'
LENGTH BETWEEN HOUSINGS 16'-3"
DEPTH OF THROAT 18"
BACK GAGE RANGE 48"
SPEED, FULL LOAD DOWN 135 IPM
SPEED, RETURN 290 IPM
STROKES PER MINUTE:
FULL LENGTH CUT 13
STROKES PER MINUTE:
24" CUT 40
HOLDDOWNS (12" CENTERS WITH EXTRA
HOLDDOWNS AT BOTH ENDS 19
HOLDDOWN FORCE, TONS 55
MAIN MOTOR HORSEPOWER 40
APPROXIMATE SHIPPING WEIGHT 66,900 LBS.
EQUIPPED WITH:
HYDRAULIC HOLDDOWNS
FRONT CONTROLLED POWER OPERATED BALL BEARING
BACK GAGE WITH DIRECT READING INDICATOR
SOLID BACK GAGE ANGLE
WATER COOLED OIL COOLER
HOLDDOWN TONNAGE CONTROL
HOLDDOWN AND KNIFE GUARDS
ADJUSTABLE RAKE
ADJUSTABLE STROKE
BALL TRANSFERS IN TABLE
2 FRONT SUPPORT ARMS
AUTOMATIC PRESSURE LUBRICATION
SINGLE STROKE CTRL, INCLUDING "INCH" & "RUN" OPERATION
