GENERAL SPECIFICATIONS:

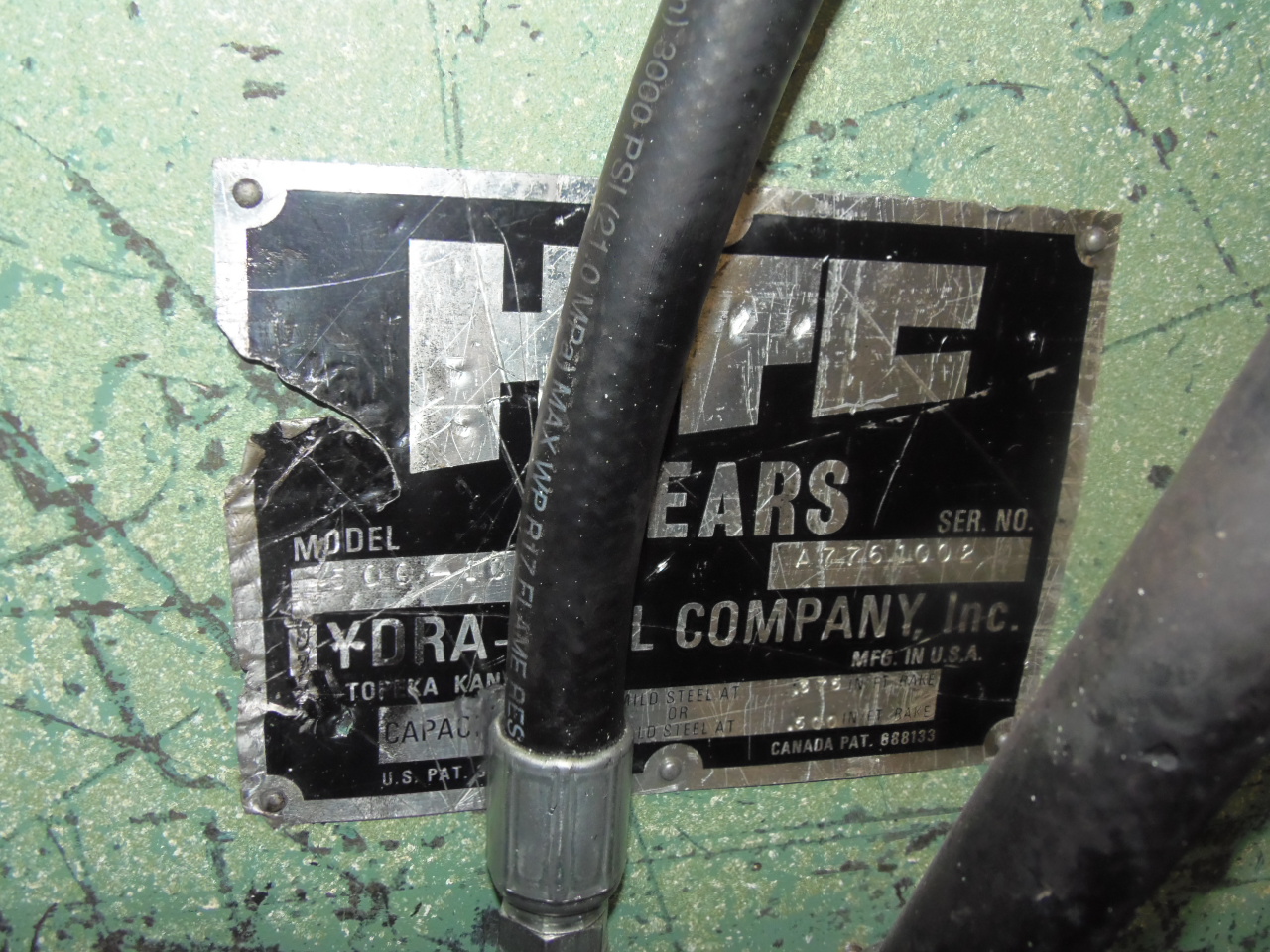

MANUFACTURER........................... HTC
MODEL.................................. 500-10A
NEW.................................... 1976
SERIAL................................. A7761002
NOMINAL CAPACITY MILD STEEL............ 1/2" x 10'
MAXIMUM CAPACITY MILD STEEL:
AT MAXIMUM RAKE & SHARP BLADES......... 3/4" x 10'
CUTTING WIDTH.......................... 124"

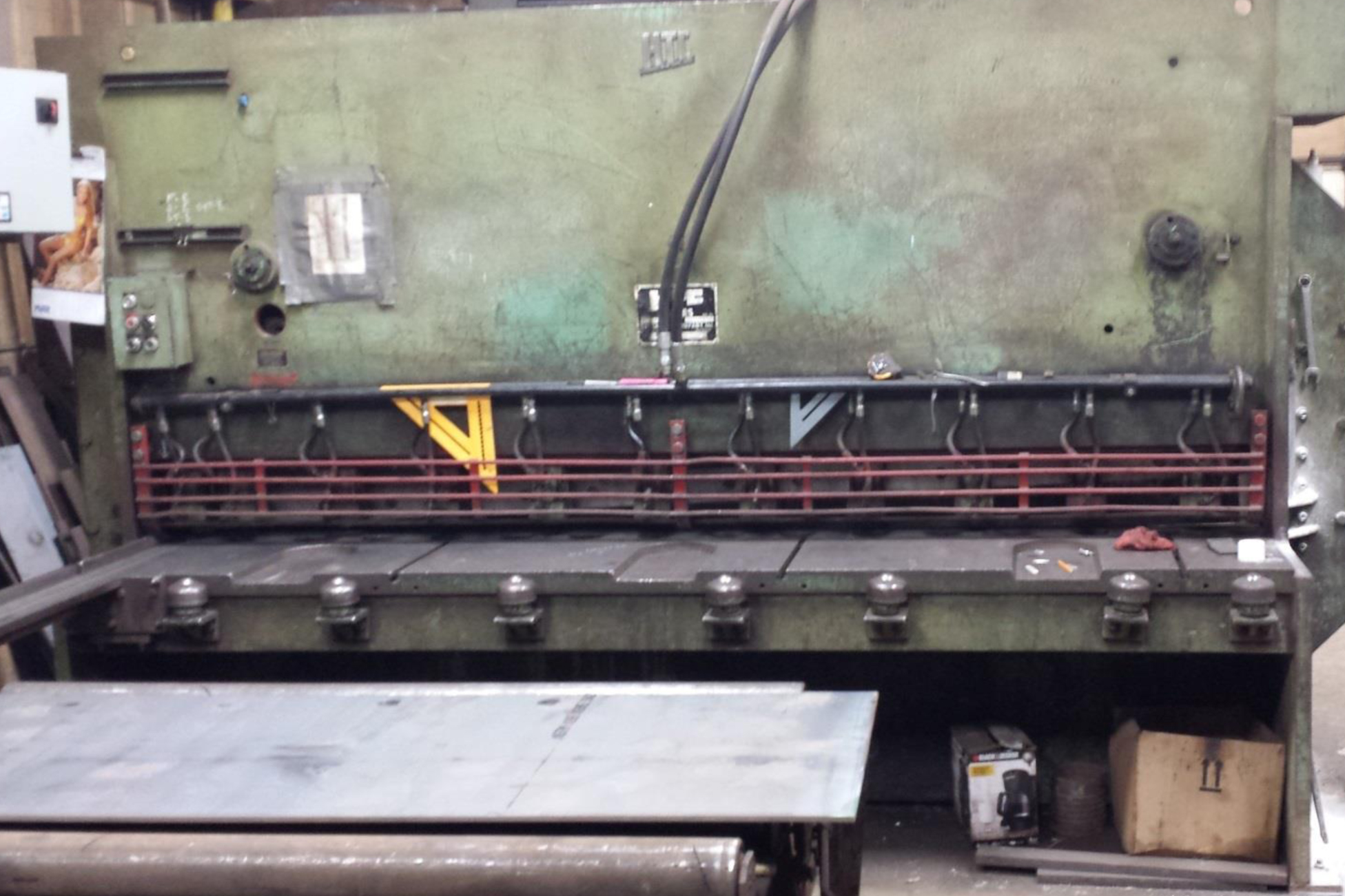

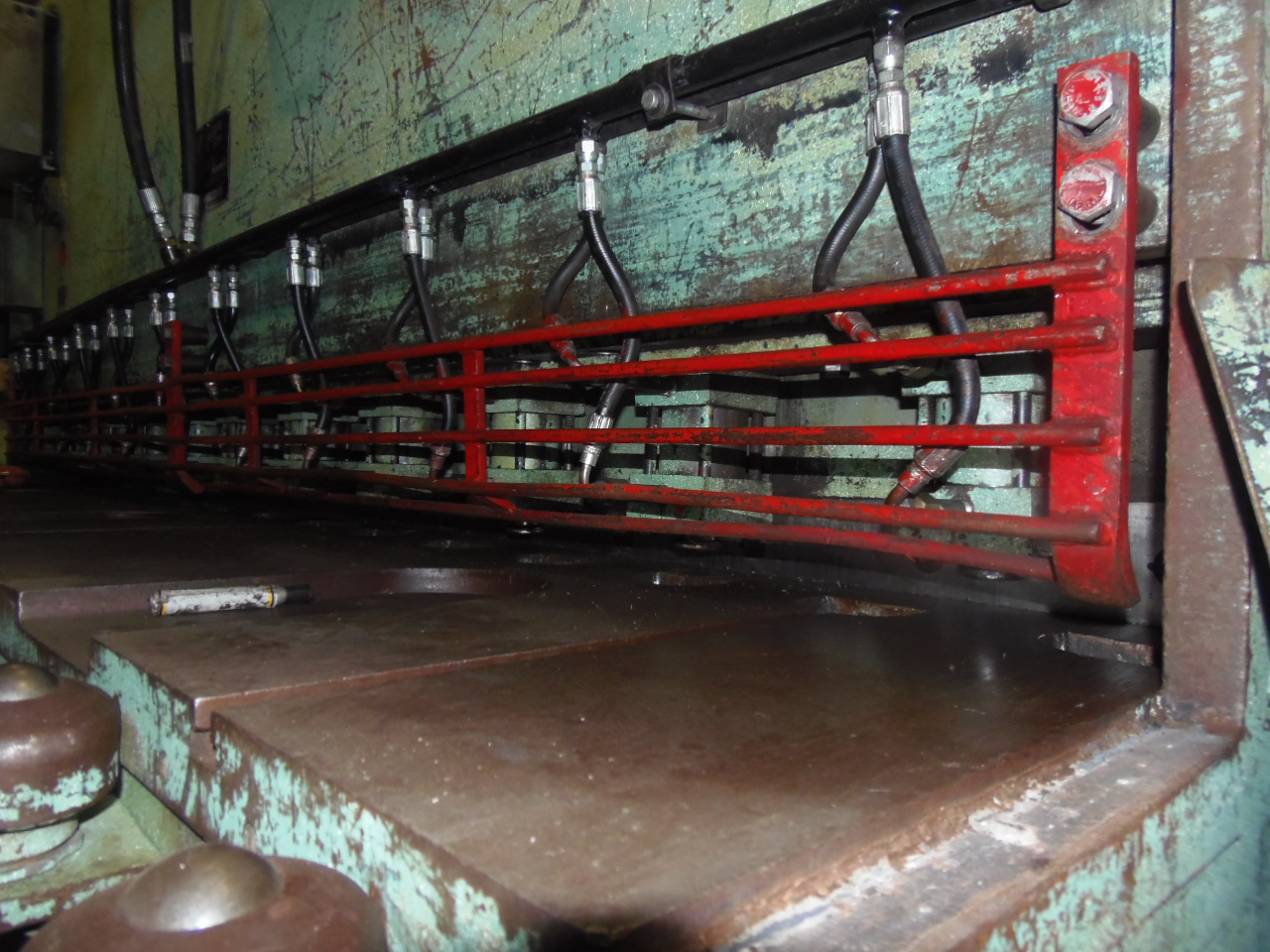

NUMBER OF HYDRAULIC HOLD DOWNS......... 11
BLADE SIZE............................. 1" x 4"
CYCLES PER MINUTE: FULL LENGTH CUT..... 9.5
: 1/2 LENGTH CUT....................... 15
: 12" CUT.............................. 26
SPEED INCHES PER MINUTE: DOWN.......... 123
UP............ 192
MAIN DRIVE MOTOR....................... 40 HP
OVERALL SIZE D x W x H................. 8-1/2' x 12-1/2' x 9'
APPROXIMATE WEIGHT..................... 25,000 LBS.
EQUIPPED WITH:

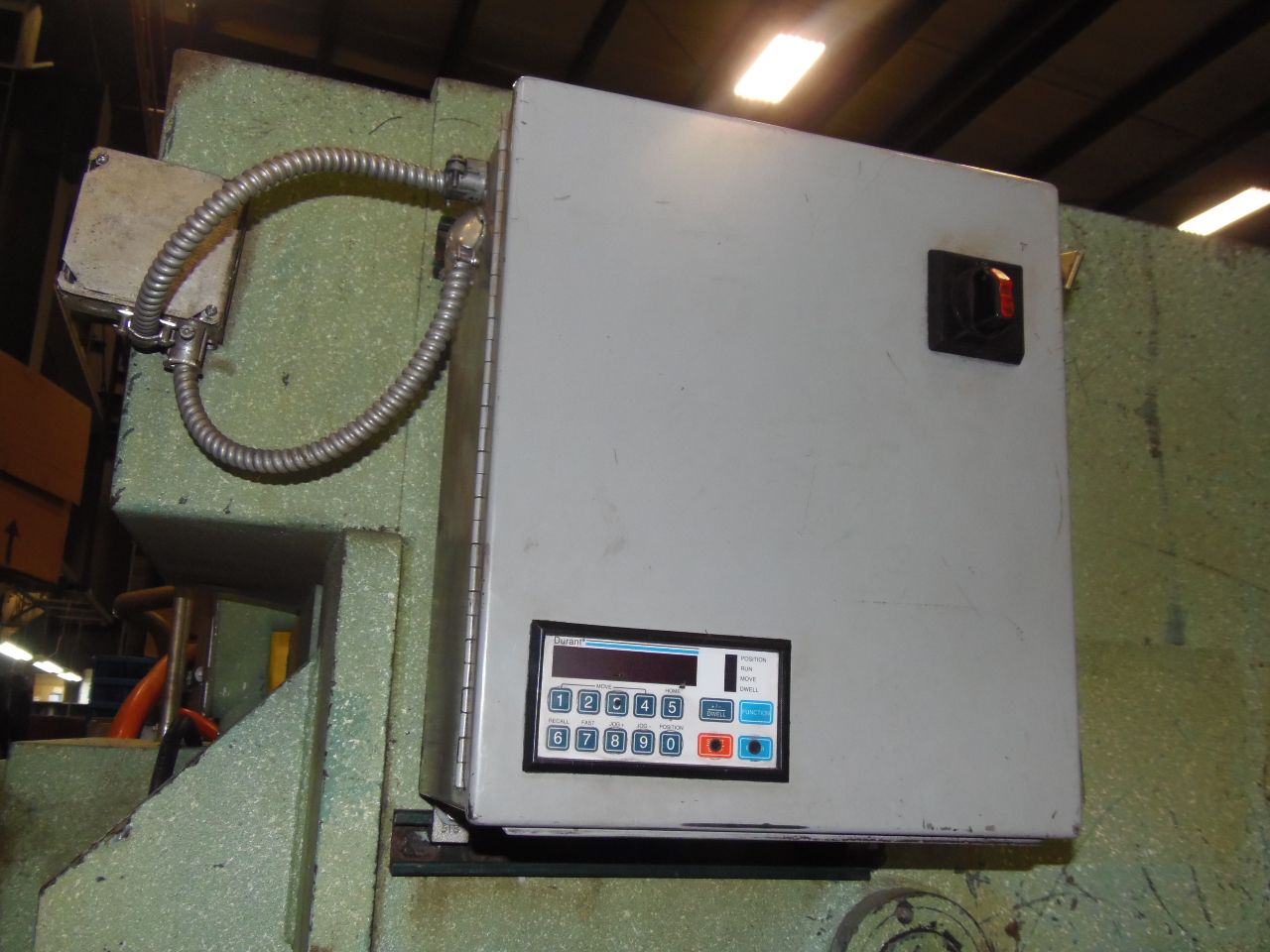

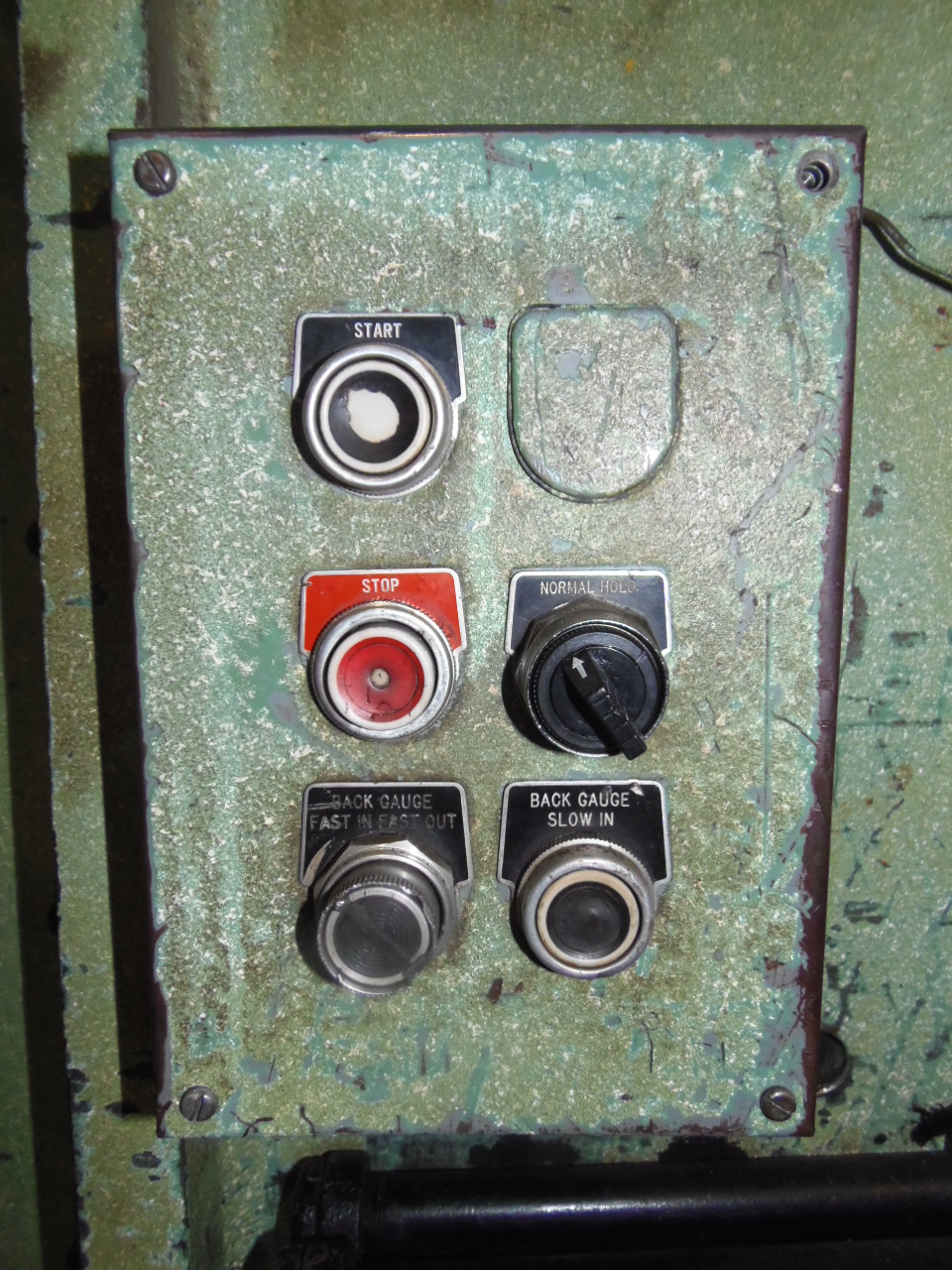

36" FRONT OPERATED POWER BACK GAUGE WITH ELECTRONIC READOUT
FLUSH FLOOR MOUNT
WORK LIGHT CANOPY ONLY
RAKE ADJUSTMENT
BLADE GAP ADJUSTMENT
FOOT SWITCH
STROKE LENGTH CONTROL
SWING AWAY BACK STOP
4' SQUARING ARM
EXTRA BLADES
MANUAL CENTRAL LUBE

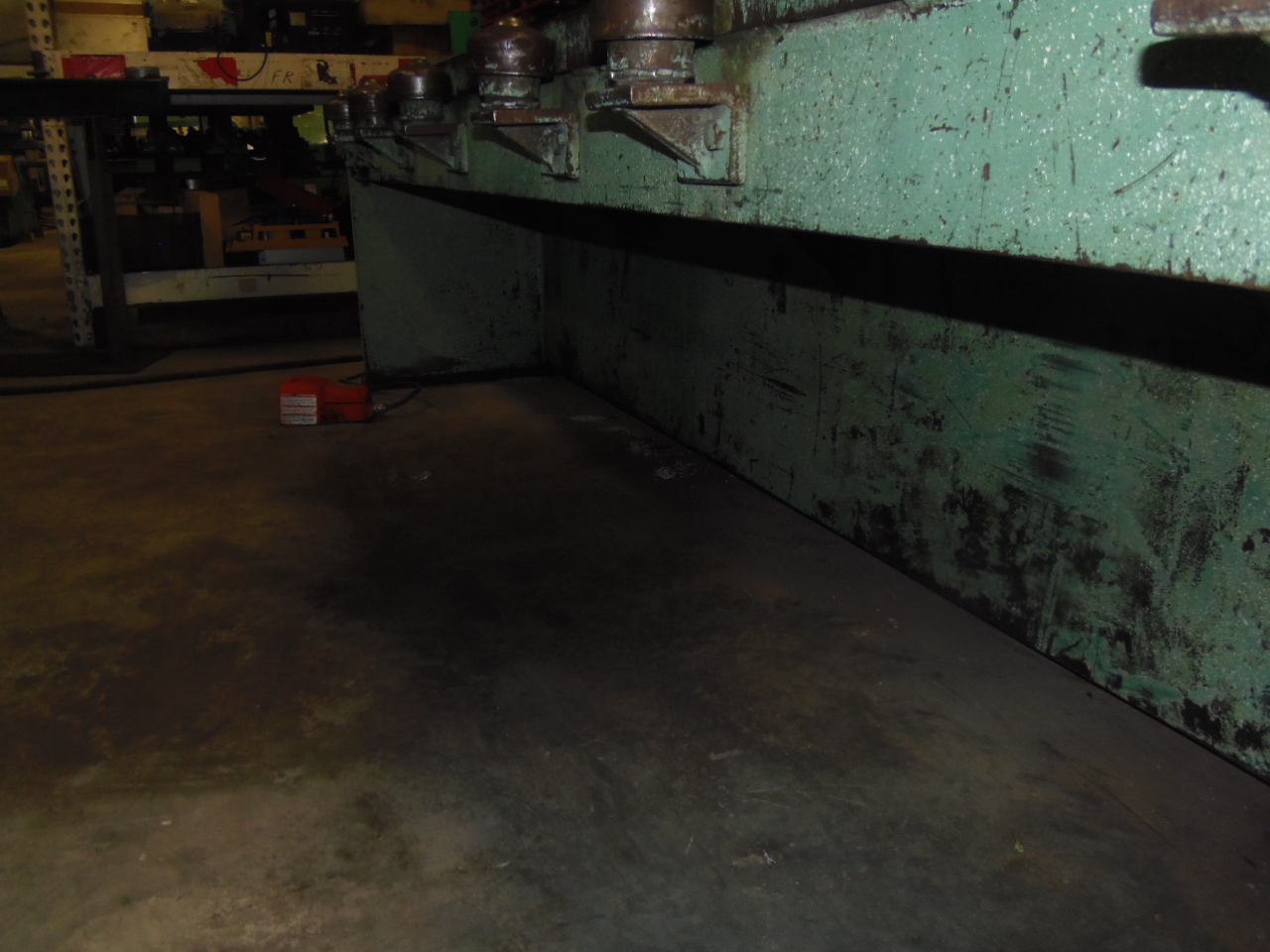

BED WITH (3) HAND SLOTS & (2) T-SLOTS
