Specifications
Equipped With
GENERAL SPECIFICATIONS:

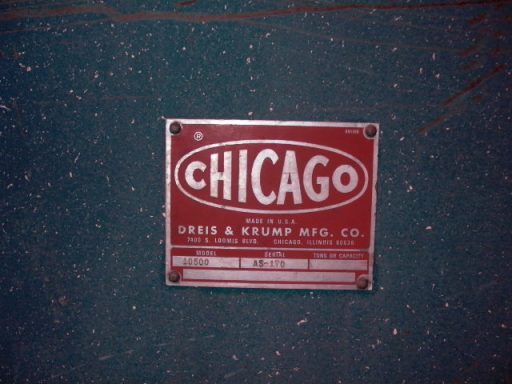

MANUFACTURER DREIS & KRUMP
MODEL OHS-10500
SERIAL # AS-170
NEW APPROXIMATELY 1975
MAX. CAPACITY, MILD STEEL 1/2" x 10' (12MM X 6451 MM)
DISTANCE BETWEEN HOUSINGS 10'3"
DEPTH OF GAP IN HOUSINGS 18"
MAIN MOTOR 40 HP
SHIPPING WEIGHT 40,000 LBS
ELECTRICS 220V/3PH/60HZ
EQUIPPED WITH
36" 2 SPEED FRONT OPERATED BACK GAUGE W/INDICATOR
POWER RAKE ADJUSTMENT
POWER BLADE GAP ADJUSTMENT
QUICK-SET STROKE LENGTH SELECTOR
INCH-SINGLE-MULTI-STROKE CYCLE SELECTOR
TABLE WITH BALL TRANSFERS
SHADOW LINE CUTTING INDICATOR
ELECTRIC FOOT-SWITCH
SQUARING ARM
FRONT SUPPORT ARM
7" DEEP SLOT REQUIRED TEMPORARY SPECIFICATIONS SUBJECT TO VERIFICATION
