Specifications
Equipped With
GENERAL SPECIFICATIONS:

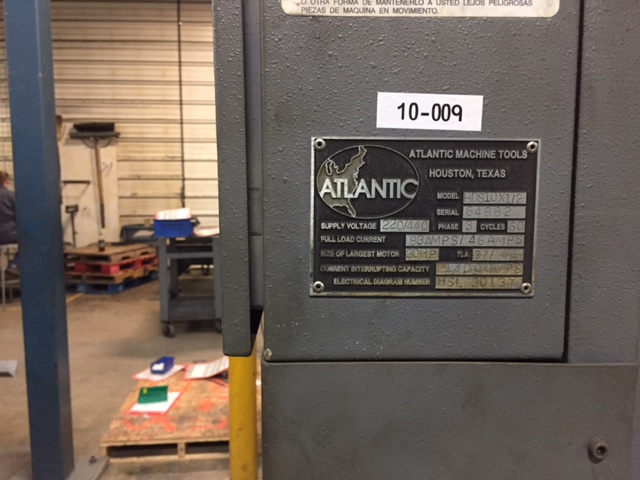

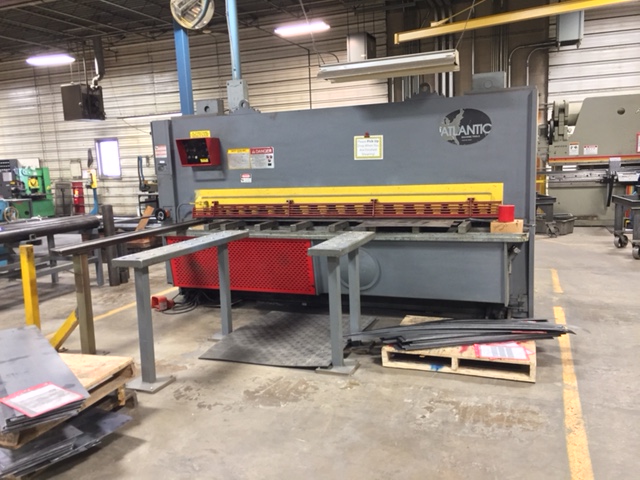

MANUFACTURER......................... ATLANTIC
MODEL................................ HDS10 X 1/2
SERIAL NUMBER........................ 64882
OVERALL SHEARING LENGTH.............. 122"
RATED CAPACITY....................... 1/2"
BACK GAUGE DEPTH
MAX............................... 39"
MIN............................... 1"
PIT REQUIRED......................... NO
LENGTH OF SQUARING ARM............... 78"
BACK GAUGE........................... FRONT OPERATED POWER
NUMBER OF SUPPORT ARMS............... 2
POWER BLADE GAP ADJUSTMENT........... YES
POWER RAKE ADJUSTMENT................ YES
CURRENT VOLTAGE...................... 240
MOTOR HP............................. 30
DIMENSIONS AT FLOOR.................. 163"L X 80"W X 88"H
WEIGHT............................... 21,000 LBS
EQUIPPED WITH:
LENGTH OF STROKE ADJUSTMENT
FRONT OPERATED POWER BACK GAUGE WITH SWING-AWAY
REAR CONTROL OF BACK GUAGE
ADJUSTABLE RAKE ANGLE WITH INDICATOR
QUICK SET BLADE GAP ADJUSTMENT
78" SQUARING ARM

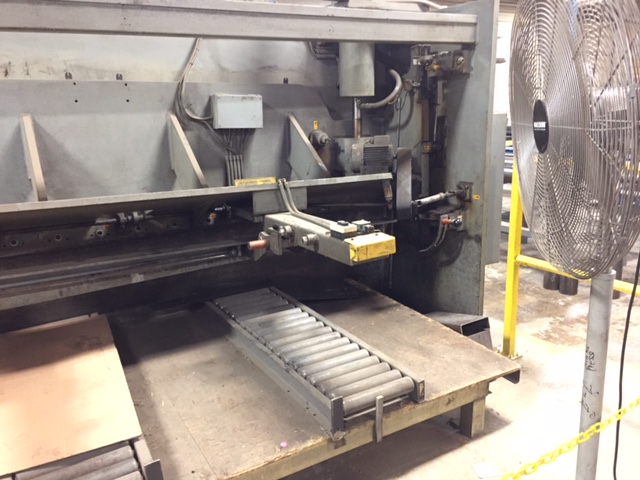

2 60" SUPPORT ARMS WITH ROLLERS
FLUSH FLOOR MOUNT
MISC PARTS, SERVICE, AND OPERATION MANUALS
