Specifications
Equipped With
GENERAL SPECIFICATIONS:

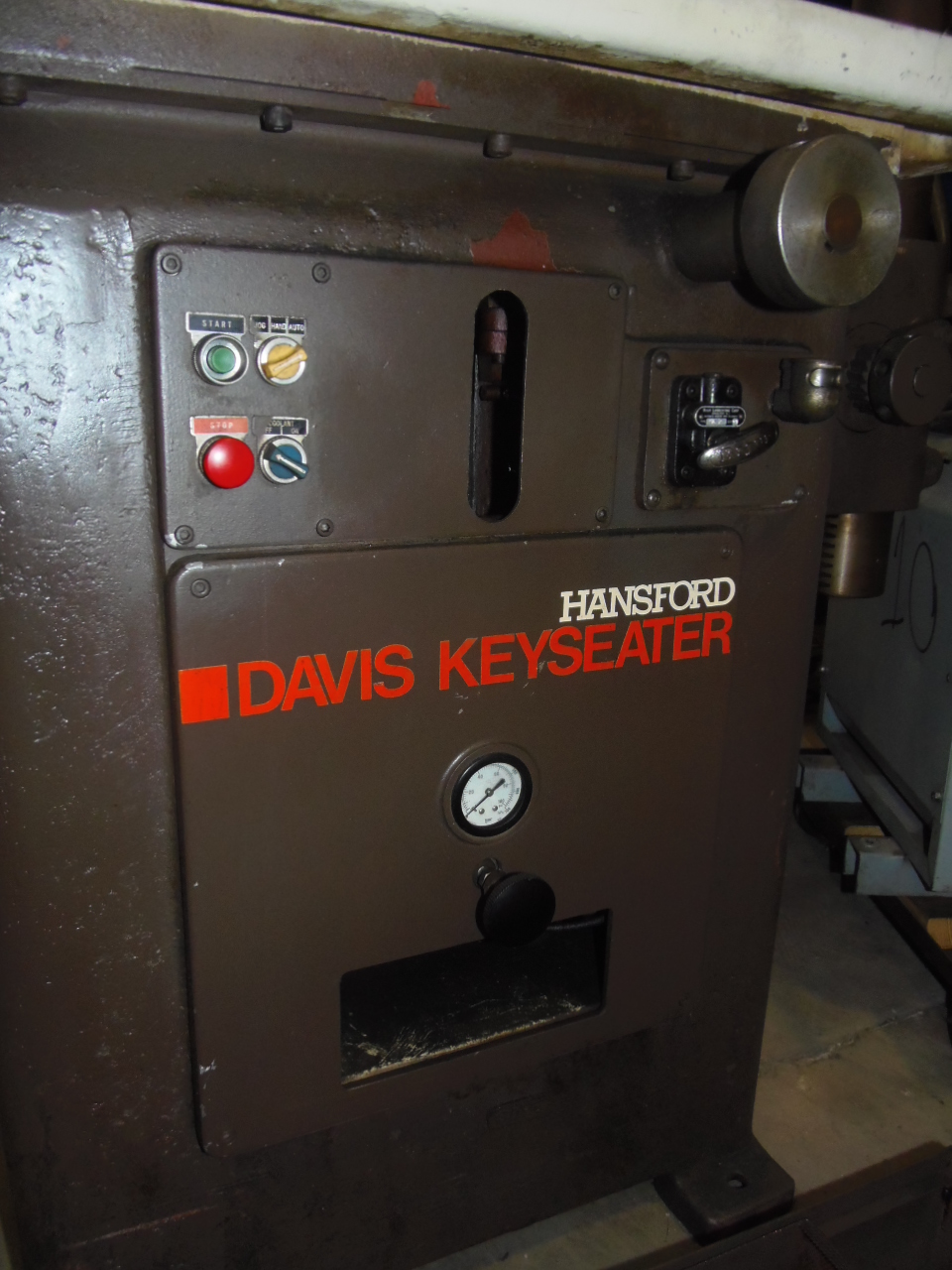

MAKE................. DAVIS (HANSFORD)
MODEL................ #15B

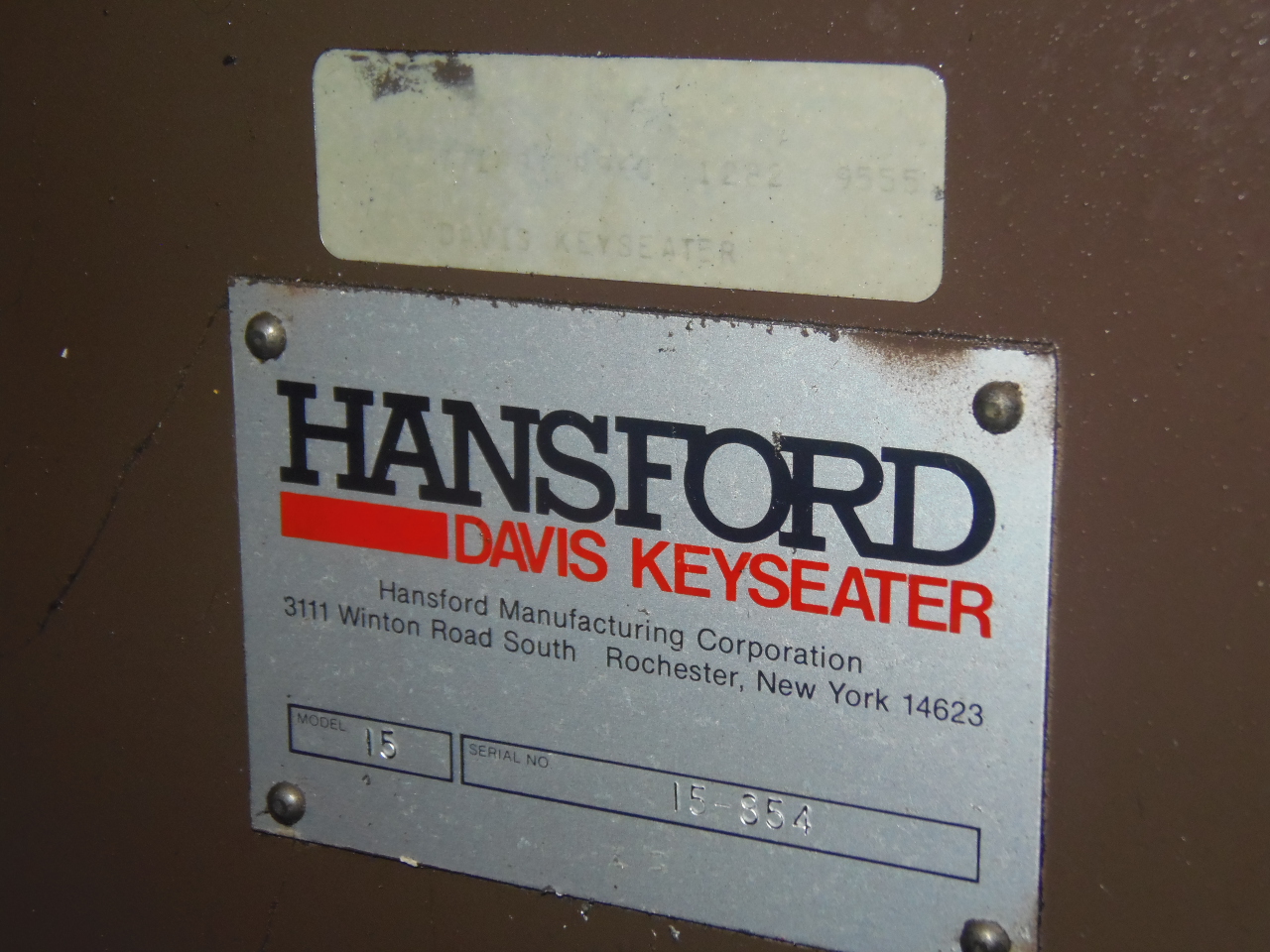

SERIAL NUMBER........ 15-854
AGE (YEAR)........... 1981
CAPACITY............. 1/16" TO 1 1/2"

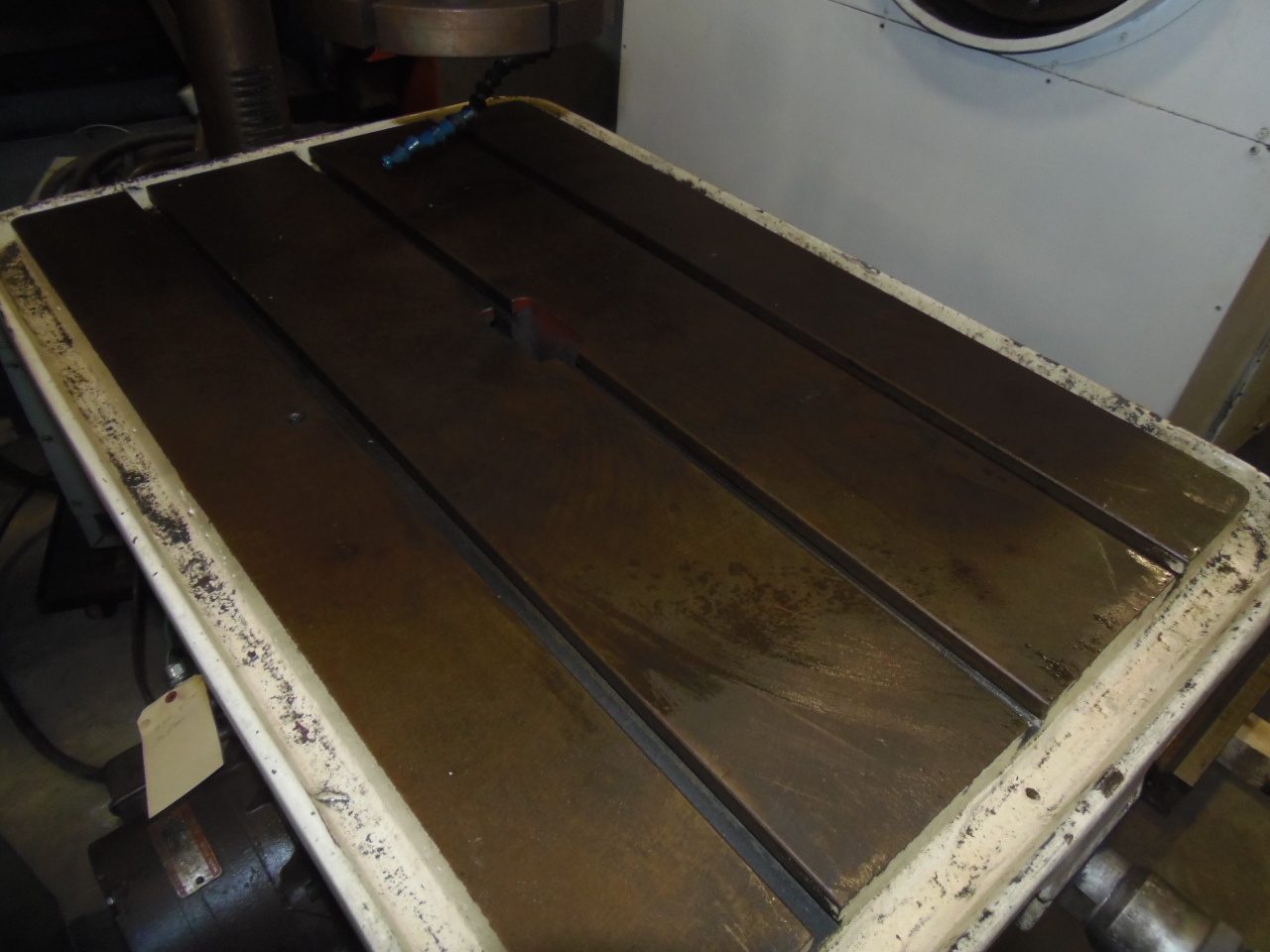

TABLE SIZE........... 31" X 20"
THROAT DEPTH......... 19"
MAX. HEIGHT OF WORK.. 12"
TABLE MOVEMENT....... 1.5"
STROKE............... 4.5"
STROKES PER MINUTE... 45
MAX LENGTH OF CUT....
16" LONG CUTTER...... 4"
20" LONG CUTTER...... 8"
24" LONG CUTTER...... 12"
MOTOR................ 2 HP
WEIGHT............... 1300 LBS
DIMENSIONS........... 40" X 44" X 48" H

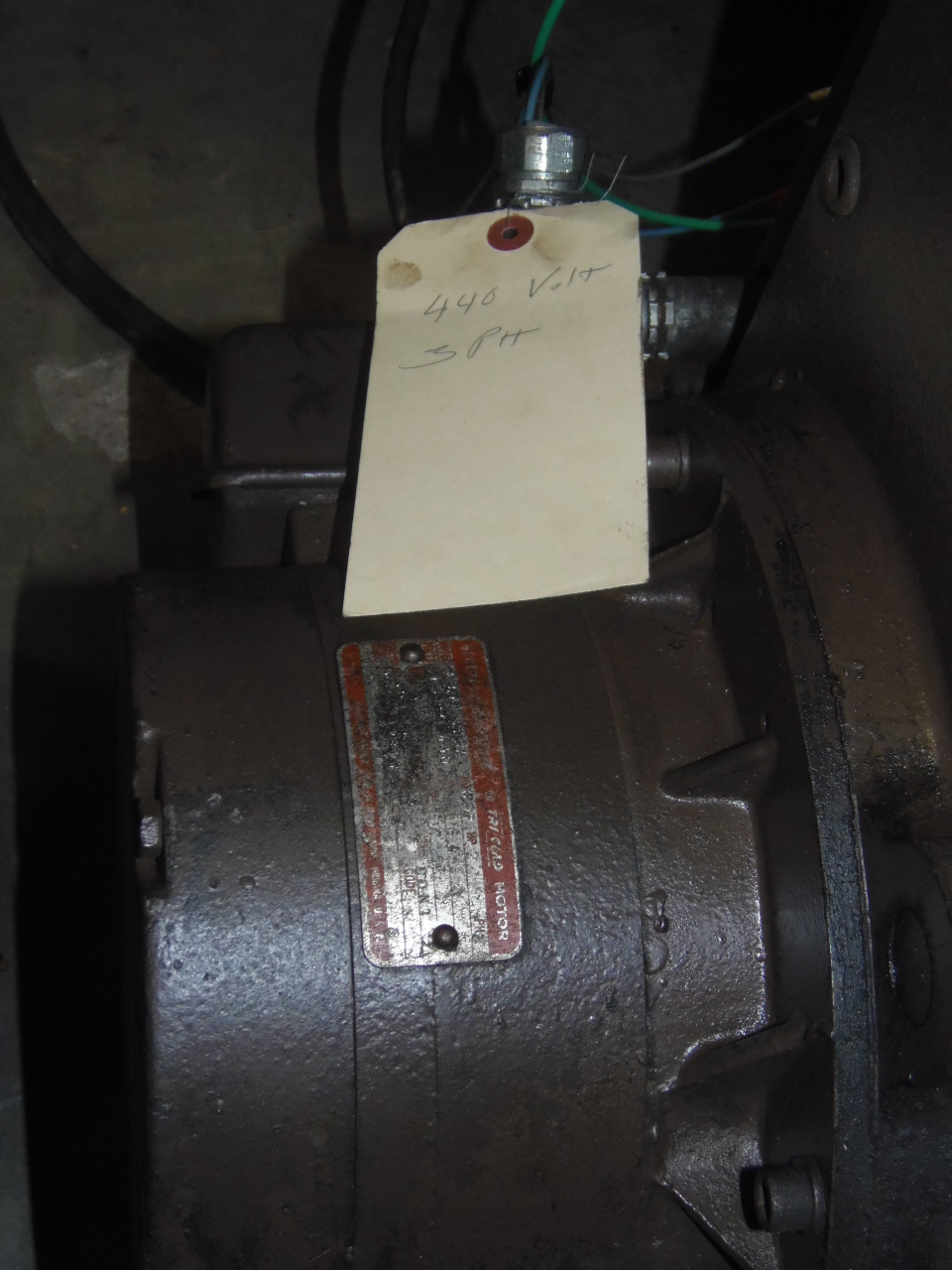

ELECTRICS............ 440V / 3PH
EQUIPPED WITH:
AIR OPERATED TABLE FEED
BIJUR LUBE

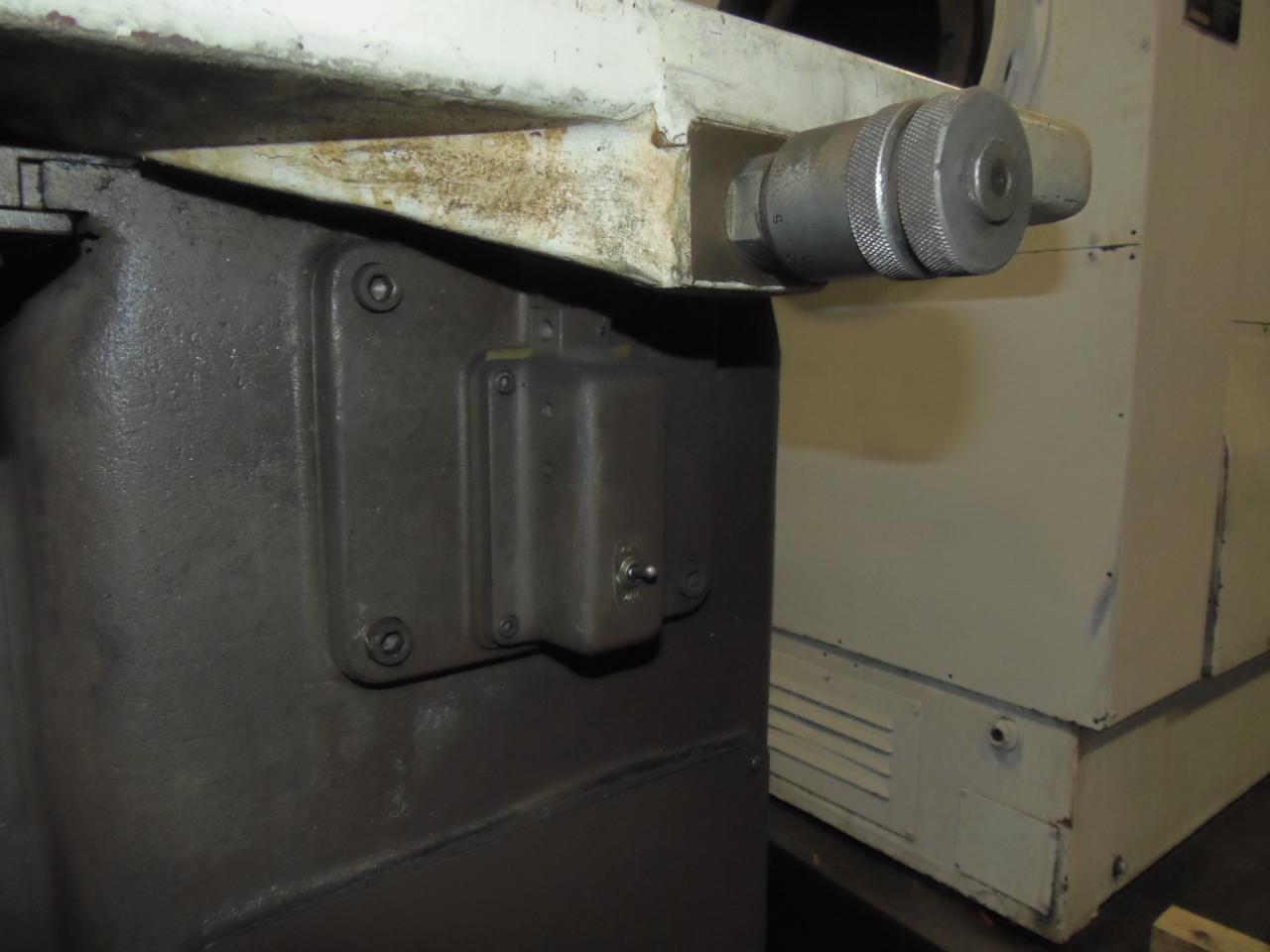

MICROMATIC DEPTH STOP

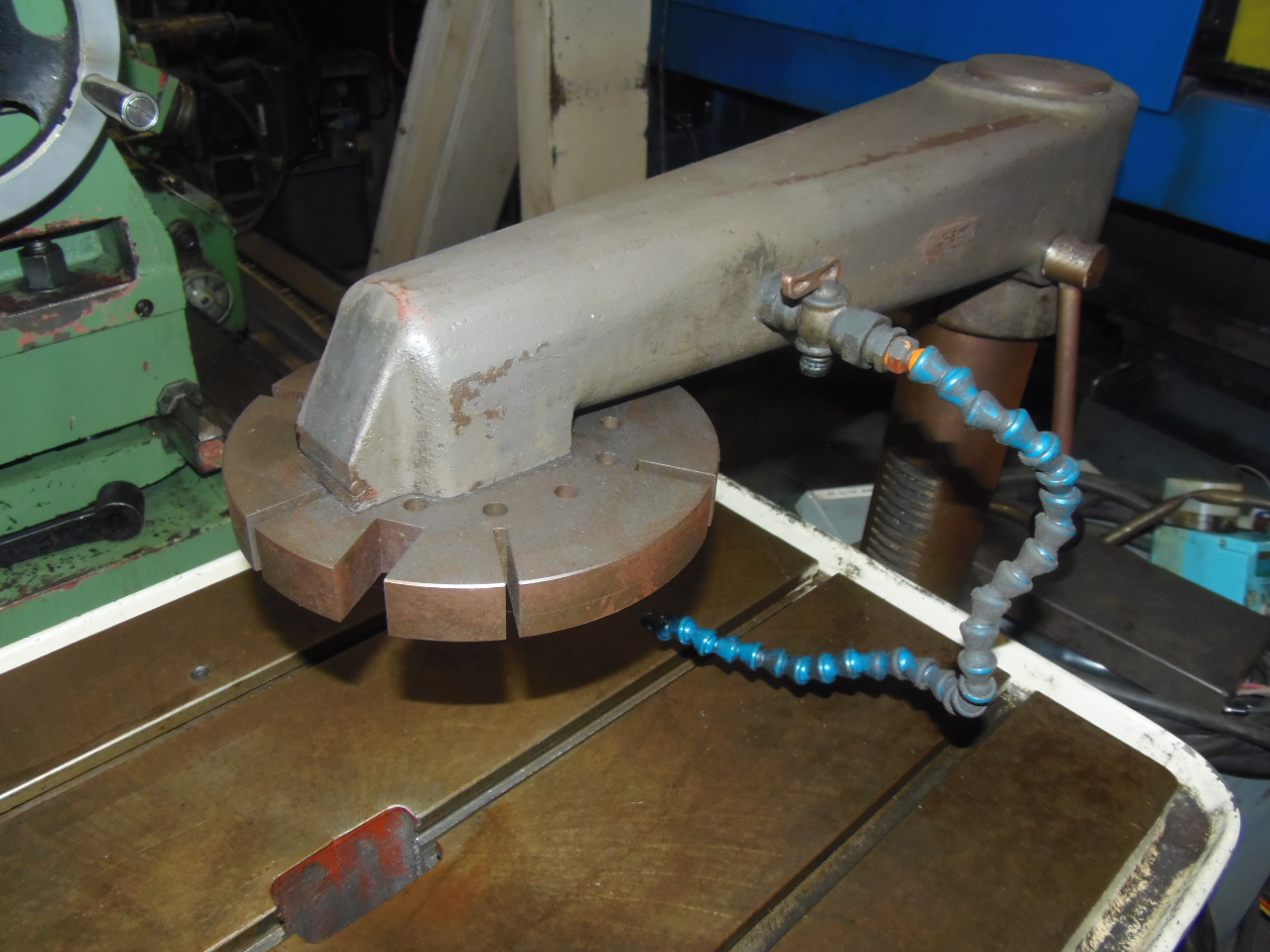

INDEXABLE CUTTER GUIDE

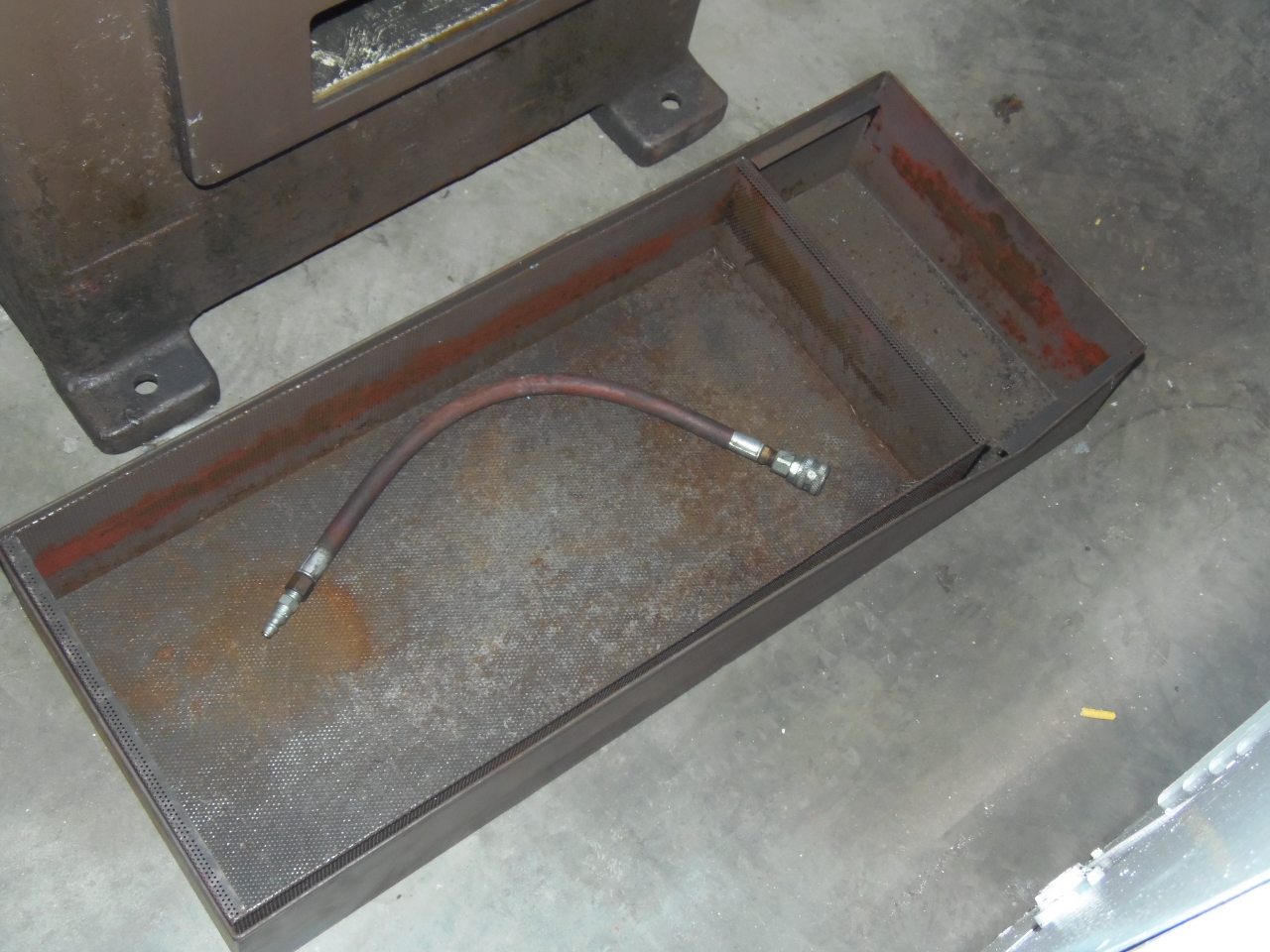

COOLANT TANK / PUMP
AUTOMATIC STOP

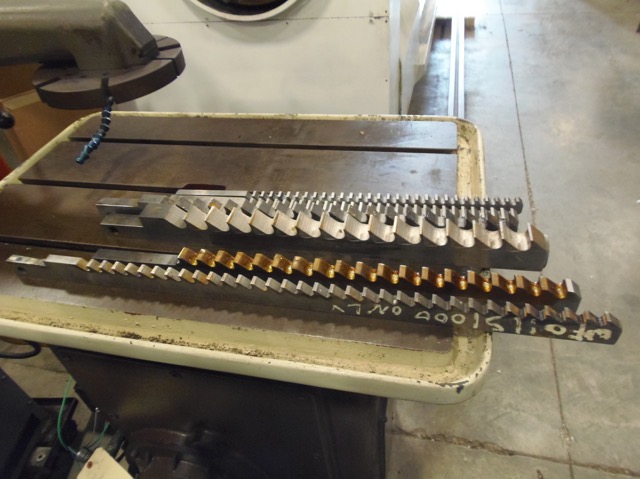

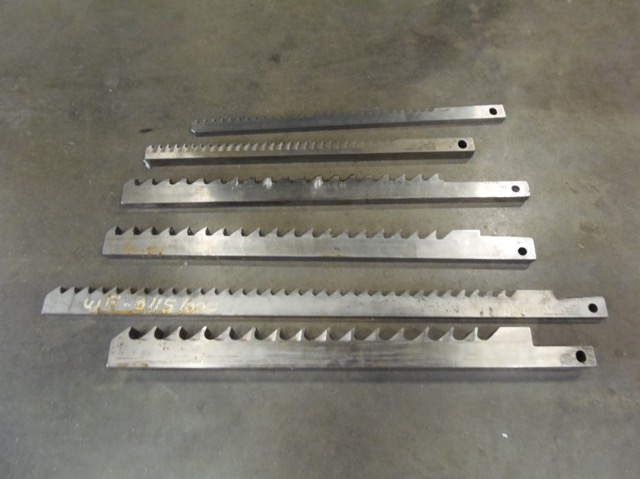

TOOLING
1/2” x 30” gp
3/4” x 24” gp
3/4” x 24”
7/8” x 20” af
1/2” x 20” af
1 1/4” x 24"
SPECIFICATIONS SUBJECT TO VERIFICATION
