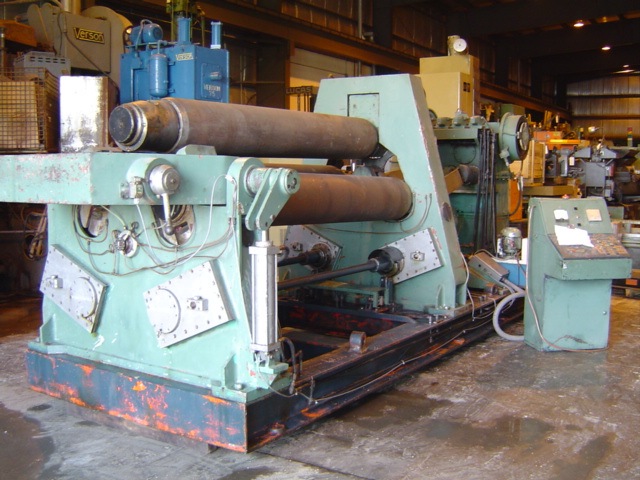

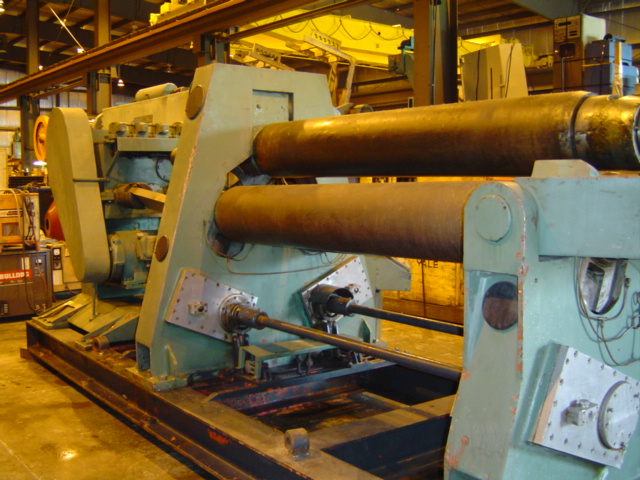

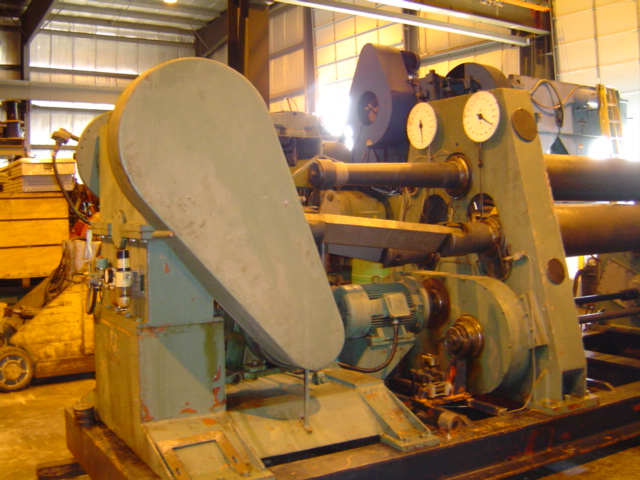

1-1/8 x 78" DIAMINT, MODEL H20/28,DOUBLE INITIAL PINCH,FLUSH FLOOR, AIR DROP END
1-1/8 x 78" DIAMINT, MODEL H20/28,DOUBLE INITIAL PINCH,FLUSH FLOOR, AIR DROP END
1-1/8 x 78" DIAMINT, MODEL H20/28,DOUBLE INITIAL PINCH,FLUSH FLOOR, AIR DROP END
1-1/8 x 78" DIAMINT, MODEL H20/28,DOUBLE INITIAL PINCH,FLUSH FLOOR, AIR DROP END
1-1/8 x 78" DIAMINT, MODEL H20/28,DOUBLE INITIAL PINCH,FLUSH FLOOR, AIR DROP END
  • 1-1/8 x 78" DIAMINT, MODEL H20/28,DOUBLE INITIAL PINCH,FLUSH FLOOR, AIR DROP END
  • 1-1/8 x 78" DIAMINT, MODEL H20/28,DOUBLE INITIAL PINCH,FLUSH FLOOR, AIR DROP END
  • 1-1/8 x 78" DIAMINT, MODEL H20/28,DOUBLE INITIAL PINCH,FLUSH FLOOR, AIR DROP END
  • 1-1/8 x 78" DIAMINT, MODEL H20/28,DOUBLE INITIAL PINCH,FLUSH FLOOR, AIR DROP END
  • 1-1/8 x 78" DIAMINT, MODEL H20/28,DOUBLE INITIAL PINCH,FLUSH FLOOR, AIR DROP END

1-1/8 x 78" DIAMINT, MODEL H20/28,DOUBLE INITIAL PINCH,FLUSH FLOOR, AIR DROP END

Brand
DIAMINT

Model
H20-28

Type
Rolls, Plate Bending (incld Pinch)

Stock #
4570

Condition
Used

Year
1987

Request a Quote

Specifications

Equipped With

GENERAL SPECIFICATIONS:

AGE 1987 MODEL H20/28

CAPACITY 1-1/8" X 6'6"
PREBENDING CAPACITY 3/4"
LENGTH OF ROLLS 84"
ROLL DIAMETER 13"
ROLLING MOTOR 40 HP
LOWER ROLLS RAISING MOTOR 25 HP
HYDRAULIC UNIT 1.5 HP
ELECTRICS 440/3'

EQUIPPED WITH:
AIR DROP END
FLUSH FLOOR MOUNT
ROLL POSITION DIALS
